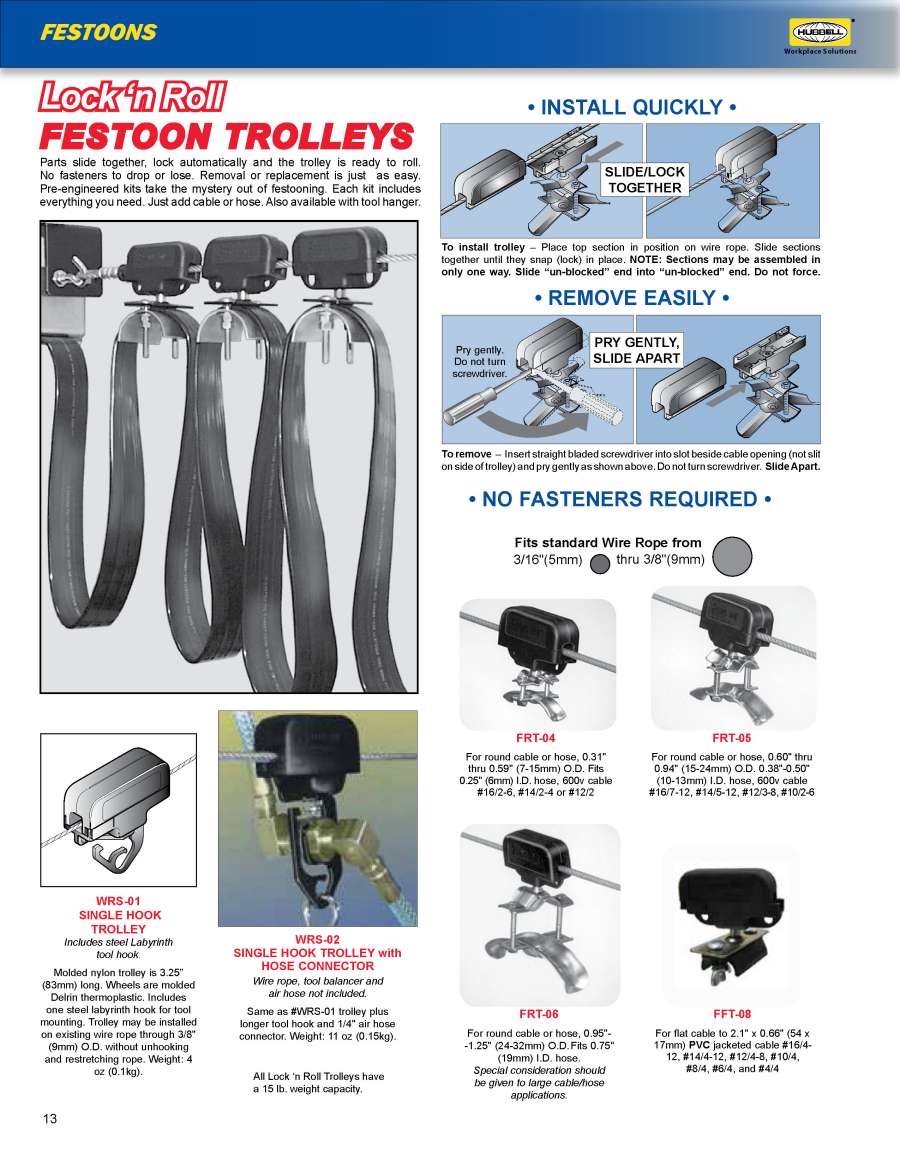

Gleason Pre-Engineered Products: Festoons

 Download:
  - Gleason Pre-Engineered Products
 View:
  • Wire Rope Kits with Nylon Trolleys for Flat or Round Cables, Hoses
  • Wire Rope Kits with Nylon Trolleys for Flat Cables
  • Wire Rope Kits with Steel Trolleys for Flat Cables
  • Festoon Kits Optional Components
  • C-Rail (Series 'CF') Festoon Kits for Flat Cable (C-Rail C35)
  • C-Rail (Series 'CR') Festoon Kits for Round Cable (C-Rail C35)
  • C-Rail Festoon Kits Components
  • Kellems Deluxe Cord Grips for Strain Relief
  • Kellems Support Grips
  • NEMA 12 Electrical Boxes
  • Festoon Cable Connectors

Wire Rope Kits with Nylon Trolleys for Flat or Round Cables, Hoses
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-FRT-04 Gleason Festoon Trolley
Part GRD-FRT-04
"Lock n Roll" Intermediate Festoon Trolley
Small Size Cable or Hose Saddle
Handles Cable or Hose Diameters of 0.31 to 0.59 Inches
Runs on supported by a 3/16 to 3/8 Inch O.D. Nylon Covered Wire Rope
aka GR60813301
Normally a Stock Item @ BPI
[Amazon] Dated 4/17
(1LB) H 6" L 6" W 6" Box
14 $29.26
2 GRD-FRT-05 Gleason Festoon Trolley
"Lock n Roll" Intermediate Festoon Trolley
Medium Size Cable or Hose Saddle
Saddle handles Cable or Hose .60 to .94 Inch in Diameter
Runs on / supported by a wire rope, 3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
Part GRD-FRT-05
aka GR60814801
(1LB) H 6" L 6" W 6" Box
[Amazon]
8 $31.72
3 GRD-FRT-06 Gleason Festoon Trolley
Part GRD-FRT-06
"Lock n Roll" Intermediate Festoon Trolley
Large Size Saddle
Accepts Cable or Hose 0.95 to 1.25 Inch in Diameter
Runs on / supported by a wire rope, 3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
[Amazon]
(1LB) H 4" L 6" W 6" Box
23 $34.15
4 GRD-FFT-08 Gleason Festoon Trolley
"Lock n Roll" Intermediate Festoon Trolley
2 Inch Diameter Saddle for Flat Electric Cable
2.1 Inch X 0.66 Inch Window Opening or
54 X 17mm Window Opening
Runs on / supported by a wire rope, 3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
aka 60813401
(1LBS) H 4.00" L 6.00" W 6.00"
[Amazon]
8 $36.58
5 GRD-WRS-01 Gleason Festoon Trolley
Part GRD-WRS-01
"Lock n Roll" Festoon Trolley
Single Labyrinth Hook Tool Trolley
Runs on supported by a wire rope
3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
(2LBS) H 4.00" L 5.00" W 4.00"
- 0 $29.70
6 GRD-WRS-02 Gleason Festoon Trolley
Part GRD-WRS-02
"Lock n Roll" Festoon Trolley
Single Labyrinth Hook Tool Trolley
With a 1/4 Inch Hose Connector
Runs on supported by a wire rope
3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended (2LBS) H 4.00" L 5.00" W 4.00"
- 0 $71.76

Wire Rope Kits with Nylon Trolleys for Flat Cables
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-FF08-02 Gleason Hubbell Festoon System
Part GRD-FF08-02
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
02 = 2 Trolleys, Intermediate Carriers
12 Feet of Active Travel with 36 Inch Loops
20 Feet of Active Travel with 48 Inch Loops
23 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
aka GR60819302
(12LBS) H 6.00" L 12.00" W 12.00"
- 0 $224.38
2 GRD-FF08-03 Gleason Hubbell Festoon System
Part GRD-FF08-03
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
03 = 3 Trolleys, Intermediate Carriers
16 Feet of Active Travel with 36 Inch Loops
27 Feet of Active Travel with 48 Inch Loops
30 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(12LBS) H 6.00" L 12.00" W 12.00"
- 0 $268.28
3 GRD-FF08-04 Gleason Hubbell Festoon System
Part GRD-FF08-04
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
04 = 4 Trolleys, Intermediate Carriers
20 Feet of Active Travel with 36 Inch Loops
33 Feet of Active Travel with 48 Inch Loops
37 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(12LBS) H 6.00" L 12.00" W 12.00"
- 0 $309.74
4 GRD-FF08-05 Gleason Hubbell Festoon System
Part GRD-FF08-05
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
05 = 5 Trolleys, Intermediate Carriers
24 Feet of Active Travel with 36 Inch Loops
40 Feet of Active Travel with 48 Inch Loops
44 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $348.76
5 GRD-FF08-06 Gleason Hubbell Festoon System
Part GRD-FF08-06
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
06 = 6 Trolleys, Intermediate Carriers
28 Feet of Active Travel with 36 Inch Loops
47 Feet of Active Travel with 48 Inch Loops
51 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $390.22
6 GRD-FF08-07 Gleason Hubbell Festoon System
Part GRD-FF08-07
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
07 = 7 Trolleys, Intermediate Carriers
32 Feet of Active Travel with 36 Inch Loops
54 Feet of Active Travel with 48 Inch Loops
58 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(17LBS) H 6.00" L 12.00" W 12.00"
- 0 $431.68
7 GRD-FF08-08 Gleason Hubbell Festoon System
Part GRD-FF08-08
"Lock N Roll" Wire Rope Festoon System
FF = For Flat Electric Cable
2.1 Wide Flat Cable Window
0.66 Tall Flat Cable Window
2 Inch Saddle Diameter
08 = 8 Trolleys, Intermediate Carriers
36 Feet of Active Travel with 36 Inch Loops
60 Feet of Active Travel with 48 Inch Loops
65 Foot Maximum System Length
Includes
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(19BS) H 6.00" L 12.00" W 12.00"
- 0 $473.15
Wire Rope Kits with Nylon Trolleys for Round Cables, Hoses
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-FR04-02 Gleason Hubbell Festoon System
Part GRD-FR04-02
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
02 = 2 Trolleys, Intermediate Carriers
10 Feet of Active Travel with 36 Inch Loops
18 Feet of Active Travel with 48 Inch Loops
21 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(10LBS) H 6.00" L 12.00" W 12.00"
- 0 $268.28
2 GRD-FR04-03 Gleason Hubbell Festoon System
Part GRD-FR04-03
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
03 = 3 Trolleys, Intermediate Carriers
14 Feet of Active Travel with 36 Inch Loops
24 Feet of Active Travel with 48 Inch Loops
27 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(10LBS) H 6.00" L 12.00" W 12.00"
- 0 $317.05
3 GRD-FR04-04 Gleason Hubbell Festoon System
Part GRD-FR04-04
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
04 = 4 Trolleys, Intermediate Carriers
17 Feet of Active Travel with 36 Inch Loops
30 Feet of Active Travel with 48 Inch Loops
34 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(10LBS) H 6.00" L 12.00" W 12.00"
- 0 $365.82
4 GRD-FR04-05 Gleason Hubbell Festoon System
Part GRD-FR04-05
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
05 = 5 Trolleys, Intermediate Carriers
21 Feet of Active Travel with 36 Inch Loops
37 Feet of Active Travel with 48 Inch Loops
40 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(10LBS) H 6" L 12" W 12" Box
- 0 $414.61
5 GRD-FR04-06 Gleason Hubbell Festoon System
Part GRD-FR04-06
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
06 = 6 Trolleys, Intermediate Carriers
25 Feet of Active Travel with 36 Inch Loops
43 Feet of Active Travel with 48 Inch Loops
47 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $465.83
6 GRD-FR04-07 Gleason Hubbell Festoon System
Part GRD-FR04-07
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
07 = 7 Trolleys, Intermediate Carriers
28 Feet of Active Travel with 36 Inch Loops
49 Feet of Active Travel with 48 Inch Loops
53 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $512.17
7 GRD-FR04-08 Gleason Hubbell Festoon System
Part GRD-FR04-08
"Lock N Roll" Wire Rope Festoon System
FR = For Round Cable or Hose 0.30 to 0.50 Inch Dia
08 = 8 Trolleys, Intermediate Carriers
32 Feet of Active Travel with 36 Inch Loops
55 Feet of Active Travel with 48 Inch Loops
60 Foot Maximum System Length
Includes:
Nylon Covered Wire Rope, Hardware Kit, Cable Trolleys, End Clamp,Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $563.39

Wire Rope Kits with Steel Trolleys for Flat Cables
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-WF-03-36 Gleason Hubbell Festoon System
Part GRD-WF-03-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
03 = 3 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
20 Foot Active Travel
23 Foot System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(10LBS) H 6.00" L 12.00" W 12.00"
- 0 $355.34
2 GRD-WF-04-36 Gleason Hubbell Festoon System
Part GRD-WF-04-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
04 = 4 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
24 Foot Active Travel
27.3 Foot System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(10LBS) H 6.00" L 12.00" W 12.00"
- 0 $404.36
3 GRD-WF-05-36 Gleason Hubbell Festoon System
Part GRD-WF-05-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
05 = 5 Trolleys, W25-FC32
36 = 36 Inch Loop Depth
29 Foot Active Travel
32.9 Foot System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(10LBS) H 6.00" L 12.00" W 12.00"
- 0 $446.02
4 GRD-WF-06-36 Gleason Hubbell Festoon System
Part GRD-WF-06-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
06 = 6 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
34 Foot Active Travel
38 Foot System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $495.04
5 GRD-WF-07-36 Gleason Hubbell Festoon System
Part GRD-WF-07-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
07 = 7 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
39 Foot Active Travel
43.4 Foot System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $534.25
6 GRD-WF-08-36 Gleason Hubbell Festoon System
Part GRD-WF-08-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
08 = 8 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
44 Foot Active Travel
48.7 Foot System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $585.70
7 GRD-WF-09-36 Gleason Hubbell Festoon System
Part GRD-WF-09-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
09 = 9 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
49 Foot Active Travel
53 Foot 10 Inch System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(15LBS) H 6.00" L 12.00" W 12.00"
- 0 $691.09
8 GRD-WF-10-36 Gleason Hubbell Festoon System
Part GRD-WF-10-36
Wire Rope Steel Trolley Festoon
WF = For Flat Electric Cables
10 = 10 Trolleys, W25-FC-32
36 = 36 Inch Loop Depth
54 Foot Active Travel
59 Foot 4 Inch System Length
Includes
Nylon Covered Wire Rope
Hardware Kit, Cable Trolleys, End Clamp, Tow Clamp & 2 Bumper Stops
Electric Cable is not included
Tension & Tow Arm Brackets are optional at additioanl cost
(20LBS) H 6.00" L 12.00" W 12.00"
- 0 $742.56
Wire Rope Kits with Steel Trolleys for Flat or Round Cables, Hoses
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-WR-03-36 Gleason Hubbell Festoon System
Part GRD-WR-03-36
Pre Engineered Wire Rope Festoon
For Round Cable or Hose 0.60 to 0.94 OD
03 = 3 Intermediate Carriers Trolleys FRT-05
36 = 36 Inch Loop Depth
20 Foot System Length
17 Feet of Working Travel
A Hardware Kit which includes:
1 End Clamp
1 Tow Clamp / Clip
2 Eye Bolts
5 Cable Clamps
2 Bumper Stop
Electric Cable is not included
(15BS) H 10" L 20" W 20" Box
- 0 $360.24
2 GRD-WR-04-36 Gleason Hubbell Festoon System
Pre Engineered Wire Rope Festoon
For Round Cable or Hose up to 0.94 OD
Part WR-04-036
03 = 3 Intermediate Carriers Trolleys
36 = 36 Inch Loop Depth
25.5 Foot System Length
22 Feet of Working Travel
A Hardware Kit which includes:
1 End Clamp
1 Tow Clamp / Clip
2 Eye Bolts
5 Cable Clamps
2 Bumper Stop
Electric Cable is not included
(15BS) H 10.00" L 20.00" W 20.00"
- 0 $421.55
3 GRD-WR-05-36 Gleason Hubbell Festoon System
Pre Engineered Wire Rope Festoon
For Round Cable or Hose up to 0.94 OD
Part WR-05-036
05 = 5 Intermediate Carriers Trolleys
36 = 36 Inch Loop Depth
29' 9" System Length
26 Feet of Working Travel
A Hardware Kit which includes:
1 End Clamp
1 Tow Clamp / Clip
2 Eye Bolts
5 Cable Clamps
2 Bumper Stop
Electric Cable is not included
(25BS) H 10.00" L 20.00" W 20.00"
- 0 $477.88
4 GRD-WR-06-36 Gleason Hubbell Festoon System
Pre Engineered Wire Rope Festoon
For Round Cable or Hose up to 0.94 OD
Part WR-06-036
06 = 6 Intermediate Carriers Trolleys
36 = 36 Inch Loop Depth
35 Foot System Length
31 Feet of Working Travel
A Hardware Kit which includes:
1 End Clamp
1 Tow Clamp / Clip
2 Eye Bolts
5 Cable Clamps
2 Bumper Stop
Electric Cable is not included
(25BS) H 10.00" L 20.00" W 20.00"
- 0 $531.80
5 GRD-WR-07-36 Gleason Hubbell Festoon System
Pre Engineered Wire Rope Festoon
For Round Cable or Hose up to 0.94 OD
Part WR-07-036
07 = 7 Intermediate Carriers Trolleys
36 = 36 Inch Loop Depth
39' 4" System Length
35 Feet of Working Travel
A Hardware Kit which includes:
1 End Clamp
1 Tow Clamp / Clip
2 Eye Bolts
5 Cable Clamps
2 Bumper Stop
Electric Cable is not included
(25BS) H 10.00" L 20.00" W 20.00"
- 0 $588.16
6 GRD-WR-08-36 Gleason Hubbell Festoon System
Pre Engineered Wire Rope Festoon
For Round Cable or Hose up to 0.94 OD
Part WR-08-036
08 = 8 Intermediate Carriers Trolleys
36 = 36 Inch Loop Depth
43' 7" System Length
39 Feet of Working Travel
A Hardware Kit which includes:
1 End Clamp
1 Tow Clamp / Clip
2 Eye Bolts
5 Cable Clamps
2 Bumper Stop
Electric Cable or Hose is not included
(25BS) H 10.00" L 20.00" W 20.00"
- 0 $644.52

Festoon Kits Optional Components
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-FRT-04 Gleason Festoon Trolley
Part GRD-FRT-04
"Lock n Roll" Intermediate Festoon Trolley
Small Size Cable or Hose Saddle
Handles Cable or Hose Diameters of 0.31 to 0.59 Inches
Runs on supported by a 3/16 to 3/8 Inch O.D. Nylon Covered Wire Rope
aka GR60813301
Normally a Stock Item @ BPI
[Amazon] Dated 4/17
(1LB) H 6" L 6" W 6" Box
14 $29.26
2 GRD-FRT-05 Gleason Festoon Trolley
"Lock n Roll" Intermediate Festoon Trolley
Medium Size Cable or Hose Saddle
Saddle handles Cable or Hose .60 to .94 Inch in Diameter
Runs on / supported by a wire rope, 3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
Part GRD-FRT-05
aka GR60814801
(1LB) H 6" L 6" W 6" Box
[Amazon]
8 $31.72
3 GRD-FRT-06 Gleason Festoon Trolley
Part GRD-FRT-06
"Lock n Roll" Intermediate Festoon Trolley
Large Size Saddle
Accepts Cable or Hose 0.95 to 1.25 Inch in Diameter
Runs on / supported by a wire rope, 3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
[Amazon]
(1LB) H 4" L 6" W 6" Box
23 $34.15
4 GRD-FFT-08 Gleason Festoon Trolley
"Lock n Roll" Intermediate Festoon Trolley
2 Inch Diameter Saddle for Flat Electric Cable
2.1 Inch X 0.66 Inch Window Opening or
54 X 17mm Window Opening
Runs on / supported by a wire rope, 3/16 to 3/8 Inch in Diameter
Nylon covered wire rope recommended
aka 60813401
(1LBS) H 4.00" L 6.00" W 6.00"
[Amazon]
8 $36.58
5 GRD-W25-FC-32 Gleason Festoon Trolley
Steel Intermediate Trolley. Dual Nylon Wheels
2.1" x 0.66 Inch or 54 x 17mm Flat Electric Cable Window Opening
Gleason Festoon Tension Bracket
Anchor Ends of Wire Rope
1 or 2 required
For a Wire Rope Supported Festoon Systems
(3BS) H 4.00" L 6.00" W 6.00"
- 0 $36.94
6 GRD-W25-FT-02 Gleason Festoon Tow Clamp
For a Flat Cable Wire Rope Festoon System
2.1" x 0.66 Inch or 54 x 17mm Cable Window Opening
(2BS) H 4.00" L 6.00" W 6.00"
- 0 $78.78
7 GRD-W25-FE-02 Gleason Festoon End Clamp
For a Flat Cable Wire Rope Festoon System
2.1" x 0.66 Inch or 54 x 17mm Cable Window Opening
(2BS) H 4.00" L 6.00" W 6.00"
- 0 $29.53
8 GRD-W25-RC-11 Gleason Festoon Trolley for Wire Rope
Steel Intermediate Trolley
Dual Nylon Wheels
Saddle Handles 0.31 to 0.59 or
7 to 15mm Diameters
Saddle articulates for compact storage
aka GR608170
(6BS) H 6.00" L 6.00" W 6.00"
- 0 $39.38
9 GRD-W25-RC-12 Gleason Festoon Trolley for Wire Rope
Steel Intermediate Trolley
Dual Nylon Wheels
Saddle Handles 0.60 to 0.94 or
15 to 24mm Diameters
Gleason Festoon Hardware Kit
For a Stretched Wire Rope Supported Festoon System
aka GR608186
(6BS) H 6" L 6" W 6" Box
- 0 $41.85
10 GRD-W25-RC-13 Gleason Festoon Trolley for Wire Rope
Steel Intermediate Trolley
Dual Nylon Wheels
Saddle Handles 0.95 to 1.25 or
24 to 32mm Diameters
Saddle articulates for compact storage
aka GR608186
(6BS) H 6.00" L 6.00" W 6.00"
- 0 $49.25
11 GRD-W25-RT-11 Gleason Festoon Tow Clamp
Part GRD-W25-RT-11
Tow Clamp Assembly with a Small Round Saddle
For Towing a Wire Rope Festoon System
Handles a Cable or Hose
With a Diameter of 0.31 to 0.59 Inches
aka GR608175
[Amazon]
(3LBS) H 4" L 5" W 4" Box
- 3 $34.47
12 GRD-W25-RT-12 Gleason Festoon Tow Clamp
Part GRD-W25-RT-12
Tow Clamp Assembly with a Medium Round Saddle
For Towing a Wire Rope Festoon System
Handles a Cable or Hose
With a Diameter of 0.60 to 0.94 Inches
aka GR608176
[Amazon]
(3LBS) H 4" L 5" W 4" Box
5 $36.96
13 GRD-W25-RT-13 Gleason Festoon Tow Clip
Gleason Festoon
Tow Arm for a Wire Rope Supported Festoon System
aka 608184
Gleason Festoon Wire Rope
Nylon Covered Wire Rope
0.25 Inch OD., 0.086 LBS / Foot
aka 608183
(3BS) H 4.00" L 5.00" W 4.00"
- 1 $41.85
14 GRD-W25-RE-11 Gleason Festooning End Clamp
For the fixed end of a festoon system
Handles a Cable or Hose with a Diameter of 0.31 to 0.59 Inches
aka GR608165
(3BS) H 4.00" L 5.00" W 4.00"
- 7 $27.08
15 GRD-W25-RE-12 Gleason Festooning End Clamp
For the fixed end of a festoon system
Handles a Cable or Hose with a diameter of .60 thru .94 Inches
GR608166
(3LBS) H 4" L 5" W 4" Box
[Amazon]
3 $29.53
16 GRD-W25-RE-13 Gleason Festooning End Clamp
For the fixed end of a festoon system
Cable or Hose Diameter of 0.95 thru 1.25 Inches
aka GR608167
(3LBS) H 4.00" L 5.00" W 4.00"
[Amazon]
3 $36.94
17 GRD-W25-BR-01 Gleason Festoon Tension Bracket
Part GRD-W25-BR-01
Anchor Ends of Wire Rope
1 or 2 may be required
For a Wire Rope Supported Festoon Systems
aka GR608185
(15BS) H 6" L 20" W 6" Box
- 0 $83.72
18 GRD-W25-TA-01 Gleason Festoon
Tow Arm for a Wire Rope Supported Festoon System
aka GR608184
- 1 $46.78
19 GRD-W25-WR-01 Gleason Festoon Wire Rope
Part GRD-W25-WR-01
Nylon Covered Wire Rope
0.25 Inch O.D.
0.086 LB / Foot
aka GR608183
(6BS) H 6" L 10" W 10" Box
- 20 $2.46
20 GRD-W25-HW-01 Gleason Festoon Wire Rope Hardware Kit
Part GRD-W25-HW-01
For a Stretched Wire Rope Supported Festoon System
Includes 2 Eye Bolts 1/2 Dia by 6 Inches Long with 2 Hex Nuts for Tensioning
4 Steel Cable Clamps
1 Neoprene Bumper Stop
aka GR608186
(6BS) H 6.00" L 6.00" W 6.00"
- 3 $66.75


C-Rail (Series 'CF') Festoon Kits for Flat Cable (C-Rail C35)
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-CF-02-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-02-30
CF = Cable Flat, for Flat Electric Cable
02 = Trolley / Carriers
30 = Inch Loop Depth
12 Feet 1 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
13 Foot 10 Inch SL, System Length
15 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $270.81
2 GRD-CF-02-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-02-36
CF = Cable Flat, for Flat Electric Cable
02 = Trolley / Carriers
36 = Inch Loop Depth
14 Feet 10 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
16 Foot 7 Inch SL, System Length
18 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $275.73
3 GRD-CF-02-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-02-42
CF = Cable Flat, for Flat Electric Cable
02 = Trolley / Carriers
42 = Inch Loop Depth
17 Feet 6 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
19 Foot 4 Inch SL, System Length
21 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $292.96
4 GRD-CF-02-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-02-48
CF = Cable Flat, for Flat Electric Cable
02 = Trolley / Carriers
48 = Inch Loop Depth
20 Feet 3 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
22 Foot 1 Inch SL, System Length
24 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $302.81
5 GRD-CF-03-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-03-30
CF = Cable Flat, for Flat Electric Cable
03 = Trolley / Carriers
30 = Inch Loop Depth
16 Feet 1 Inch AC, Active Travel
1 Foot 7 Inch SD, Storage Distance
18 Foot 2 Inch SL, System Length
19 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $329.89
6 GRD-CF-03-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-03-36
CF = Cable Flat, for Flat Electric Cable
03 = Trolley / Carriers
36 = Inch Loop Depth
19 Feet 9 Inch AC, Active Travel
1 Foot 7 Inch SD, Storage Distance
21 Foot 10 Inch SL, System Length
23 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $334.81
7 GRD-CF-03-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-03-42
CF = Cable Flat, for Flat Electric Cable
03 = Trolley / Carriers
42 = Inch Loop Depth
23 Feet 4 Inch AC, Active Travel
1 Foot 7 Inch SD, Storage Distance
25 Foot 5 Inch SL, System Length
27 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $347.13
8 GRD-CF-03-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-03-48
CF = Cable Flat, for Flat Electric Cable
03 = Trolley / Carriers
48 = Inch Loop Depth
27 Feet 0 Inch AC, Active Travel
1 Foot 7 Inch SD, Storage Distance
29 Foot 1 Inch SL, System Length
31 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $359.44
9 GRD-CF-04-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-04-30
CF = Cable Flat, for Flat Electric Cable
04 = Trolley / Carriers
30 = Inch Loop Depth
20 Feet 2 Inch AC, Active Travel
1 Foot 11 Inch SD, Storage Distance
22 Foot 6 Inch SL, System Length
24 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $364.36
10 GRD-CF-04-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-04-36
CF = Cable Flat, for Flat Electric Cable
04 = Trolley / Carriers
36 = Inch Loop Depth
24 Feet 8 Inch AC, Active Travel
1 Foot 11 Inch SD, Storage Distance
27 Foot 0 Inch SL, System Length
29 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $391.44
11 GRD-CF-04-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-04-42
CF = Cable Flat, for Flat Electric Cable
04 = Trolley / Carriers
42 = Inch Loop Depth
29 Feet 3 Inch AC, Active Travel
1 Foot 11 Inch SD, Storage Distance
31 Foot 7 Inch SL, System Length
34 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $420.99
12 GRD-CF-04-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-04-48
CF = Cable Flat, for Flat Electric Cable
04 = Trolley / Carriers
48 = Inch Loop Depth
33 Feet 9 Inch AC, Active Travel
1 Foot 11 Inch SD, Storage Distance
36 Foot 1 Inch SL, System Length
39 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $450.52
13 GRD-CF-05-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-05-30
CF = Cable Flat, for Flat Electric Cable
05 = Trolley / Carriers
30 = Inch Loop Depth
24 Feet 2 Inch AC, Active Travel
2 Foot 2 Inch SD, Storage Distance
26 Foot 9 Inch SL, System Length
29 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $420.99
14 GRD-CF-05-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-05-36
CF = Cable Flat, for Flat Electric Cable
05 = Trolley / Carriers
36 = Inch Loop Depth
29 Feet 8 Inch AC, Active Travel
2 Foot 2 Inch SD, Storage Distance
32 Foot 3 Inch SL, System Length
35 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $448.05
15 GRD-CF-05-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-05-42
CF = Cable Flat, for Flat Electric Cable
05 = Trolley / Carriers
42 = Inch Loop Depth
35 Feet 1 Inch AC, Active Travel
2 Foot 2 Inch SD, Storage Distance
37 Foot 8 Inch SL, System Length
41 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $480.07
16 GRD-CF-05-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-05-48
CF = Cable Flat, for Flat Electric Cable
05 = Trolley / Carriers
48 = Inch Loop Depth
40 Feet 6 Inch AC, Active Travel
2 Foot 2 Inch SD, Storage Distance
43 Foot 2 Inch SL, System Length
47 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $512.07
17 GRD-CF-06-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-06-30
CF = Cable Flat, for Flat Electric Cable
06 = Trolley / Carriers
30 = Inch Loop Depth
28 Feet 3 Inch AC, Active Travel
2 Foot 5 Inch SD, Storage Distance
31 Foot 1 Inch SL, System Length
34 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $480.07
18 GRD-CF-06-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-06-36
CF = Cable Flat, for Flat Electric Cable
06 = Trolley / Carriers
36 = Inch Loop Depth
34 Feet 7 Inch AC, Active Travel
2 Foot 5 Inch SD, Storage Distance
37 Foot 5 Inch SL, System Length
41 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $509.62
19 GRD-CF-06-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-06-42
CF = Cable Flat, for Flat Electric Cable
06 = Trolley / Carriers
42 = Inch Loop Depth
40 Feet 11 Inch AC, Active Travel
2 Foot 5 Inch SD, Storage Distance
43 Foot 10 Inch SL, System Length
48 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $539.16
20 GRD-CF-06-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-06-48
CF = Cable Flat, for Flat Electric Cable
06 = Trolley / Carriers
48 = Inch Loop Depth
47 Feet 4 Inch AC, Active Travel
2 Foot 5 Inch SD, Storage Distance
50 Foot 2 Inch SL, System Length
55 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $571.16
21 GRD-CF-07-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-07-30
CF = Cable Flat, for Flat Electric Cable
07 = Trolley / Carriers
30 = Inch Loop Depth
32 Feet 3 Inch AC, Active Travel
2 Foot 8 Inch SD, Storage Distance
35 Foot 5 Inch SL, System Length
38 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $509.62
22 GRD-CF-07-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-07-36
CF = Cable Flat, for Flat Electric Cable
07 = Trolley / Carriers
36 = Inch Loop Depth
39 Feet 6 Inch AC, Active Travel
2 Foot 8 Inch SD, Storage Distance
42 Foot 8 Inch SL, System Length
46 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $568.70
23 GRD-CF-07-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-07-42
CF = Cable Flat, for Flat Electric Cable
07 = Trolley / Carriers
42 = Inch Loop Depth
46 Feet 9 Inch AC, Active Travel
2 Foot 8 Inch SD, Storage Distance
49 Foot 11 Inch SL, System Length
54 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $600.70
24 GRD-CF-07-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-07-48
CF = Cable Flat, for Flat Electric Cable
07 = Trolley / Carriers
48 = Inch Loop Depth
54 Feet 1 Inch AC, Active Travel
2 Foot 8 Inch SD, Storage Distance
57 Foot 3 Inch SL, System Length
62 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $627.78
25 GRD-CF-08-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-08-30
CF = Cable Flat, for Flat Electric Cable
08 = Trolley / Carriers
30 = Inch Loop Depth
36 Feet 3 Inch AC, Active Travel
3 Foot 0 Inch SD, Storage Distance
39 Foot 8 Inch SL, System Length
43 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $578.54
26 GRD-CF-08-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-08-36
CF = Cable Flat, for Flat Electric Cable
08 = Trolley / Carriers
36 = Inch Loop Depth
44 Feet 6 Inch AC, Active Travel
3 Foot 0 Inch SD, Storage Distance
37 Foot 11 Inch SL, System Length
52 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $598.24
27 GRD-CF-08-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-08-42
CF = Cable Flat, for Flat Electric Cable
08 = Trolley / Carriers
42 = Inch Loop Depth
52 Feet 8 Inch AC, Active Travel
3 Foot 0 Inch SD, Storage Distance
56 Foot 1 Inch SL, System Length
61 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $659.79
28 GRD-CF-08-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-08-48
CF = Cable Flat, for Flat Electric Cable
08 = Trolley / Carriers
48 = Inch Loop Depth
60 Feet 10 Inch AC, Active Travel
3 Foot 0 Inch SD, Storage Distance
64 Foot 3 Inch SL, System Length
70 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $689.33
29 GRD-CF-09-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-09-30
CF = Cable Flat, for Flat Electric Cable
09 = Trolley / Carriers
30 = Inch Loop Depth
40 Feet 4 Inch AC, Active Travel
3 Foot 3 Inch SD, Storage Distance
44 Foot 0 Inch SL, System Length
48 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $625.32
30 GRD-CF-09-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-09-36
CF = Cable Flat, for Flat Electric Cable
09 = Trolley / Carriers
36 = Inch Loop Depth
49 Feet 5 Inch AC, Active Travel
3 Foot 3 Inch SD, Storage Distance
53 Foot 1 Inch SL, System Length
58 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $652.42
31 GRD-CF-09-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-09-42
CF = Cable Flat, for Flat Electric Cable
09 = Trolley / Carriers
42 = Inch Loop Depth
58 Feet 6 Inch AC, Active Travel
3 Foot 3 Inch SD, Storage Distance
62 Foot 2 Inch SL, System Length
68 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes:
Rail C35-TR-6 Qty 10
Rail Coupler / Hangers C35-CPN-01 Qty 10
Rail End Stop WS30-ES Qty 1
Intermediate Trolleys C35-FC-32 Qty 8
Tow Trolley C35-FT-52 Qty 1
End Clamp C35-FE-02 Qty 1
aka GR629031
Ships in 10 days or sooner
0 $686.87
32 GRD-CF-09-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-09-48
CF = Cable Flat, for Flat Electric Cable
09 = Trolley / Carriers
48 = Inch Loop Depth
67 Feet 7 Inch AC, Active Travel
3 Foot 3 Inch SD, Storage Distance
71 Foot 3 Inch SL, System Length
78 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $716.41
33 GRD-CF-10-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-10-30
CF = Cable Flat, for Flat Electric Cable
10 = Trolley / Carriers
30 = Inch Loop Depth
44 Feet 4 Inch AC, Active Travel
3 Foot 6 Inch SD, Storage Distance
48 Foot 4 Inch SL, System Length
53 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $686.87
34 GRD-CF-10-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-10-36
CF = Cable Flat, for Flat Electric Cable
10 = Trolley / Carriers
36 = Inch Loop Depth
54 Feet 4 Inch AC, Active Travel
3 Foot 6 Inch SD, Storage Distance
58 Foot 4 Inch SL, System Length
64 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $713.96
35 GRD-CF-10-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-10-42
CF = Cable Flat, for Flat Electric Cable
10 = Trolley / Carriers
42 = Inch Loop Depth
64 Feet 4 Inch AC, Active Travel
3 Foot 6 Inch SD, Storage Distance
68 Foot 4 Inch SL, System Length
75 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $777.96
36 GRD-CF-10-48 Gleason Festoon Kit C-Rail C35
Part GRD-CF-10-48
CF = Cable Flat, for Flat Electric Cable
10 = Trolley / Carriers
48 = Inch Loop Depth
74 Feet 4 Inch AC, Active Travel
3 Foot 6 Inch SD, Storage Distance
78 Foot 4 Inch SL, System Length
86 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $839.50
37 GRD-CF-11-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-11-30
CF = Cable Flat, for Flat Electric Cable
11 = Trolley / Carriers
30 = Inch Loop Depth
48 Feet 5 Inch AC, Active Travel
3 Foot 9 Inch SD, Storage Distance
52 Foot 7 Inch SL, System Length
57 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $745.94
38 GRD-CF-11-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-11-36
CF = Cable Flat, for Flat Electric Cable
11 = Trolley / Carriers
36 = Inch Loop Depth
59 Feet 4 Inch AC, Active Travel
3 Foot 9 Inch SD, Storage Distance
63 Foot 6 Inch SL, System Length
69 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $805.04
39 GRD-CF-11-42 Gleason Festoon Kit C-Rail C35
Part GRD-CF-11-42
CF = Cable Flat, for Flat Electric Cable
11 = Trolley / Carriers
42 = Inch Loop Depth
70 Feet 2 Inch AC, Active Travel
3 Foot 9 Inch SD, Storage Distance
74 Foot 9 Inch SL, System Length
81 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka GR629039
Ships in 5 days or sooner
0 $866.59
40 GRD-CF-12-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-12-30
CF = Cable Flat, for Flat Electric Cable
12 = Trolley / Carriers
30 = Inch Loop Depth
52 Feet 5 Inch AC, Active Travel
4 Foot 1 Inch SD, Storage Distance
56 Foot 11 Inch SL, System Length
62 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $770.58
41 GRD-CF-12-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-12-36
CF = Cable Flat, for Flat Electric Cable
12 = Trolley / Carriers
36 = Inch Loop Depth
64 Feet 3 Inch AC, Active Travel
4 Foot 1 Inch SD, Storage Distance
68 Foot 9 Inch SL, System Length
75 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $834.58
42 GRD-CF-13-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-13-30
CF = Cable Flat, for Flat Electric Cable
13 = Trolley / Carriers
30 = Inch Loop Depth
56 Feet 6 Inch AC, Active Travel
4 Foot 4 Inch SD, Storage Distance
61 Foot 3 Inch SL, System Length
67 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $839.49
43 GRD-CF-13-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-13-36
CF = Cable Flat, for Flat Electric Cable
13 = Trolley / Carriers
36 = Inch Loop Depth
69 Feet 2 Inch AC, Active Travel
4 Foot 4 Inch SD, Storage Distance
74 Foot 0 Inch SL, System Length
81 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $893.67
44 GRD-CF-14-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-14-30
CF = Cable Flat, for Flat Electric Cable
14 = Trolley / Carriers
30 = Inch Loop Depth
60 Feet 6 Inch AC, Active Travel
4 Foot 7 Inch SD, Storage Distance
65 Foot 6 Inch SL, System Length
72 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $859.21
45 GRD-CF-14-36 Gleason Festoon Kit C-Rail C35
Part GRD-CF-14-36
CF = Cable Flat, for Flat Electric Cable
14 = Trolley / Carriers
36 = Inch Loop Depth
74 Feet 2 Inch AC, Active Travel
4 Foot 7 Inch SD, Storage Distance
79 Foot 2 Inch SL, System Length
87 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $952.76
46 GRD-CF-15-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-15-30
CF = Cable Flat, for Flat Electric Cable
15 = Trolley / Carriers
30 = Inch Loop Depth
64 Feet 6 Inch AC, Active Travel
4 Foot 10 Inch SD, Storage Distance
69 Foot 10 Inch SL, System Length
76 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $920.74
47 GRD-CF-16-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-16-30
CF = Cable Flat, for Flat Electric Cable
16 = Trolley / Carriers
30 = Inch Loop Depth
68 Feet 7 Inch AC, Active Travel
5 Foot 2 Inch SD, Storage Distance
74 Foot 2 Inch SL, System Length
81 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $982.28
48 GRD-CF-17-30 Gleason Festoon Kit C-Rail C35
Part GRD-CF-17-30
CF = Cable Flat, for Flat Electric Cable
17 = Trolley / Carriers
30 = Inch Loop Depth
72 Feet 7 Inch AC, Active Travel
5 Foot 5 Inch SD, Storage Distance
78 Foot 6 Inch SL, System Length
86 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Flat Electric Cable in not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $1,041.38

C-Rail (Series 'CR') Festoon Kits for Round Cable (C-Rail C35)
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-CR-02-30-1 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-30-1
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
30 = Inch Loop Depth
1 = Small Saddle, OD Range 0.31 to 0.59 Inch
10 Feet 10 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
12 Foot 8 Inch SL, System Length
17 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka GR628002
Ships in 5 days or sooner
0 $435.75
2 GRD-CR-02-30-2 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-30-2
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
30 = Inch Loop Depth
2 = Large Saddle, OD Range 0.60 to 0.94 Inch
10 Feet 10 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
12 Foot 8 Inch SL, System Length
17 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
1 $435.75
3 GRD-CR-02-36-1 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-36-1
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
36 = Inch Loop Depth
1 = Small Saddle, OD Range 0.31 to 0.59 Inch
13 Feet 6 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
15 Foot 3 Inch SL, System Length
20 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $454.16
4 GRD-CR-02-36-2 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-36-2
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
36 = Inch Loop Depth
2 = Large Saddle, OD Range 0.60 to 0.94 Inch
13 Feet 6 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
15 Foot 3 Inch SL, System Length
20 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $435.75
5 GRD-CR-02-42-1 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-42-1
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
42 = Inch Loop Depth
1 = Small Saddle, OD Range 0.31 to 0.59 Inch
16 Feet 1 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
17 Foot 10 Inch SL, System Length
23 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $342.82
6 GRD-CR-02-42-2 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-42-2
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
36 = Inch Loop Depth
2 = Large Saddle, OD Range 0.60 to 0.94 Inch
16 Feet 1 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
17 Foot 10 Inch SL, System Length
23 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $344.77
7 GRD-CR-02-48-1 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-48-1
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
48 = Inch Loop Depth
1 = Small Saddle, OD Range 0.31 to 0.59 Inch
18 Feet 8 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
20 Foot 6 Inch SL, System Length
26 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $364.26
8 GRD-CR-02-48-2 Gleason Festoon Kit C-Rail C35
Part GRD-CR-02-48-2
CR = Cable Round, for Round Electric Cable
02 = Trolleys / Carriers
36 = Inch Loop Depth
2 = Large Saddle, OD Range 0.60 to 0.94 Inch
18 Feet 8 Inch AC, Active Travel
1 Foot 4 Inch SD, Storage Distance
20 Foot 6 Inch SL, System Length
26 Feet of Cable Required for Active Travel
Add the additional cable required for termination
at each end of the system
The Round Electric Cable is not included with the kit
Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,
Intermediate Trolleys, Tow Trolley, End Clamp
aka
Ships in 5 days or sooner
0 $370.10

C-Rail Festoon Kits Components
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-C35-FE-02 Gleason Hubbell Festoon C35
End Clip
Part GRD-C35-FE-02
Series C35 Festoon
GRD-C35-FE-02
FE - Flat cable End clamp
02 = 2 Inch Saddle Diameter
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $19.70
2 GRD-C35-FE-03 Gleason Hubbell Festoon C35
End Clip
Part GRD-C35-FE-03
Series C35 Festoon
Part GRD-C35-FE-03
FE - Flat cable End clamp
03 = 3.12 Inch Saddle Diameter
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $19.70
3 GRD-C35-FC-32 Gleason Hubbell Festoon Cable Trolley
Series C35 Festoon
Part GRD-C35-FC-32
FC - Flat Cable Trolley
3 = 3.12 Inches Long
2 = 2 Inch Saddler Diameter
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(1LB) H 6" L 6" W 6" Box
2 $24.60
4 GRD-C35-FC-52 Gleason Hubbell Festoon Cable Trolley
Series C35 Festoon
Part GRD-C35-FC-52
FC - Flat Cable Trolley
5 = 5 Inches Long
2 = 2 Inch Saddler Diameter
(1LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
2 $24.60
5 GRD-C35-FC-53 Gleason Hubbell Festoon Cable Trolley
Series C35 Festoon
Part GRD-C35-FC-53
FC - Flat Cable Trolley
5 = 5 Inches Long
3 = 3.12 Inch Saddle Diameter
aka 090974 GR629089
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(1LB) H 6" L 6" W 6" Box
10 $24.60
6 GRD-C35-FT-52 Gleason Hubbell Festoon Tow Trolley
Series C35 Festoon
Part GRD-C35-FT-53
FT - Flat Tow Trolley
5 = 5 Inches Long
3 = 3 Inch Saddler Diameter
(1LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
FT - Flat Cable Tow Trolley
5 = 5 Inch Length
2 = 2 Inch Saddle Diameter
(3LBS) H 10" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $46.78
7 GRD-C35-FT-53 Gleason Hubbell Festoon Tow Trolley
Series C35 Festoon
Part GRD-C35-FT-53
FT - Flat Tow Trolley
5 = 5 Inches Long
3 = 3 Inch Saddler Diameter
(1LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $46.78
8 GRD-C35-RE-11 Gleason Hubbell Festoon C35
End Clip for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RE-11
With a Diameter between 0.31 to 0.59 Steel Construction
aka 62825101
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $27.08
9 GRD-C35-RE-12 Gleason Hubbell Festoon C35
End Clip for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RE-12
With a Diameter between 0.60 to 0.94 Steel Construction
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $27.08
10 GRD-C35-RE-13 Gleason Hubbell Festoon C35
End Clip for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RE-13
With a Diameter between 0.95 to 1.25 Steel Construction
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $41.85
11 GRD-C35-RC-11 Gleason Hubbell Festoon C35
Intermediate Trolley for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RC-11
With a Diameter between 0.31 to 0.59 Steel Construction
aka 62825401
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $46.78
12 GRD-C35-RC-12 Gleason Hubbell Festoon C35
Intermediate Trolley for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RC-12
With a Diameter between 0.60 to 0.94 Steel Construction
aka 62825402
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $46.78
13 GRD-C35-RC-13 Gleason Hubbell Festoon C35
Intermediate Trolley for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RC-13
With a Diameter between 0.95 to 1.25 Steel Construction
aka 62825402
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $51.70
14 GRD-C35-RT-11 Gleason Hubbell Festoon C35
Tow Trolley for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RT-11
With a Diameter between 0.31 to 0.59 Steel Construction
aka
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $61.55
15 GRD-C35-RT-12 Gleason Hubbell Festoon C35
Tow Trolley for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RT-12
With a Diameter between 0.60 to 0.94 Steel Construction
aka
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $61.55
16 GRD-C35-RT-13 Gleason Hubbell Festoon C35
Tow Trolley for Round Cable or Hose
Series C35 Festoon
Part GRD-C35-RT-13
With a Diameter between 0.95 to 1.25 Steel Construction
aka
(2LBS) H 6" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $66.46
17 GRD-C35-TR-06 Gleason Hubbell Festoon C35
Part GRD-C35-TR-06
Rail, Box / C Track
6 Foot Long / 1.8288 Meters
1.26 Width X 1.180 High X 0.079 Thick
C30, C35, C40, 14 Gauge Galvanized
aka GR62826506
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(10LBS) H 80" L 4" W 4" Box
0 $27.08
18 GRD-C35-TR-12 Gleason Hubbell Festoon C35
Part GRD-C35-TR-12
Rail, Box / C Track
12 Foot Long / 3.6576 Meters
1.26 Width X 1.180 High X 0.079 Thick
C30, C35, C40, 14 Gauge Galvanized
aka
Product available at Amazon.com and BrakeProducts.com
(14LBS) H 144" L 4" W 4" Box
0 $54.15
19 GRD-C35-TR-18 Gleason Hubbell Festoon C35
Part GRD-C35-TR-18
Rail, Box / C Track
18 Foot Long / 5.4864 Meters
1.26 Width X 1.180 High X 0.079 Thick
C30, C35, C40, 14 Gauge Galvanized aka
Product available at Amazon.com and BrakeProducts.com
(20LBS) H 144" L 4" W 4" Box Motor Freight Only
0 $76.31
20 GRD-C35-CP-01 Gleason Hubbell Festoon Track Coupler
Part GRD-C35-CP-01
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $22.15
21 GRD-C35-CP-02 Gleason Hubbell Festoon C35
Coupler Hanger
Part GRD-C35-CP-02
C35 Series
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $27.08
22 GRD-C35-HB-03 Gleason Hubbell Festoon C35
Part GRD-C35-HB-03
Track Hanger & Clamp with Mounting Angles
C35 for Hanging and Fixing Track near its center point
aka GR628271
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(2LBS) H 4" L 6" W 6" Box
0 $14.77
23 GRD-C35-HB-01 Gleason Hubbell Festoon C35
Track Hanger
Part GRD-C35-HB-01
For Horizontal Mounting
Sliding Clamp, does not clamp track tight
aka 628269
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $14.77
24 GRD-C35-HB-02 Gleason Hubbell Festoon C35
Hanger for Vertical Rail
Part GRD-C35-HB-02
aka GR628270
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(2LBS) H 4" L 6" W 6" Box
0 $17.21
25 GRD-C35-UN-01 Gleason Hubbell Control Unit
(20LBS) H 8" L 24" W 18"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $371.65
26 GRD-C35-UN-02 Gleason Hubbell Control Unit
(20LBS) H 8" L 24" W 18"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $402.42
27 GRD-C35-BCA Gleason Hubbell Festoon C35
GRD-C35-BCA
Beam Clamp Assembly
For C30 & C50 Rails
aka GR629165
Product available at Amazon.com and BrakeProducts.com
[Amazon] Dated 4/17
(2LBS) H 4" L 6" W 6" Box
0 $9.52
28 GRD-WS30-ES Gleason End Stop
For WS30 Rail, WS50,C40 & C50
Rail Stop to limit trolley travel / blocks exiting the rail
Zinc Plated
aka GR019949
Product available at Amazon.com and BrakeProducts.com
[Amazon] Dated 4/17
(1LB) H 4" L 6" W 5" Box
0 $14.27
29 GRD-LC-01 Gleason Festoon Part
Flat to Round Cable Connector Set, Twist Lock
3 Pole, 4-Wire Plus Ground
Round 10 to 14 AWG
Flat up to 1 Inch Wide
Rated 20 AMPS @ 480 Volt
NEMA Configuration L16-20
Part GRD-LC-01
aka GR614022
(1LB) H 4" L 6" W 6" Box
Product available at Amazon.com and BrakeProducts.com
(1LB) H 4" L 6" W 6" Box
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $156.57
30 GRD-CTA-01 Gleason Tow Arm C35
Part GRD-CTA-01
Mast for Towing the Lead Trolley
aka GR628220
Product available at Amazon.com and BrakeProducts.com
[Amazon]
Ships in 20 days or sooner
(10LBS) H 4" L 18" W 4" Box
0 $74.44

Kellems Deluxe Cord Grips for Strain Relief
Aluminum Fittings, Stainless Steel Mesh, Liquidtight, for Insulated Cables

No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-CGD-1001 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1001
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.250-0.312 in. (.63-.79 cm);
- Thread Size N.P.T.: 3/8";
- Form Size: F1;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $37.82
2 GRD-CGD-1002 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1002
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.312-0.375 in. (.79-.95 cm);
- Thread Size N.P.T.: 3/8";
- Form Size: F1;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $37.82
3 GRD-CGD-1003 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1003
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.375-0.437 in. (.95-1.11 cm);
- Thread Size N.P.T.: 3/8";
- Form Size: F1;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $37.82
4 GRD-CGD-1004 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1004
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.187-0.250 in. (.47-.63 cm);
- Thread Size N.P.T.: 1/2";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $39.01
5 GRD-CGD-1006 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1006
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.250-0.375 in. (.63-.95 cm);
- Thread Size N.P.T.: 1/2";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $39.01
6 GRD-CGD-1008 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1008
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.375-0.500 in. (.95-1.27 cm);
- Thread Size N.P.T.: 1/2";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $36.69
7 GRD-CGD-1010 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1010
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.500-0.625 in. (1.27-1.59 cm);
- Thread Size N.P.T.: 1/2";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $36.69
8 GRD-CGD-1011 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1011
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.187-0.250 in. (.47-.63 cm);
- Thread Size N.P.T.: 3/4";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $42.57
9 GRD-CGD-1013 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1013
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.250-0.375 in. (.63-.95 cm);
- Thread Size N.P.T.: 3/4";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $42.57
10 GRD-CGD-1015 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1015
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.375-0.500 in. (.95-1.27 cm);
- Thread Size N.P.T.: 3/4";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $64.94
11 GRD-CGD-1017 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1017
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.500-0.625 in. (1.27-1.59 cm);
- Thread Size N.P.T.: 3/4";
- Form Size: F2;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $61.01
12 GRD-CGD-1018 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1018
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.625-0.750 in. (1.59-1.90 cm);
- Thread Size N.P.T.: 3/4";
- Form Size: F3;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $45.01
13 GRD-CGD-1019 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1019
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.500-0.625 in. (1.27-1.59 cm);
- Thread Size N.P.T.: 1";
- Form Size: F4;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $57.15
14 GRD-CGD-1021 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1021
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.625-0.750 in. (1.59-1.90 cm);
- Thread Size N.P.T.: 1";
- Form Size: F4;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $87.18
15 GRD-CGD-1023 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1023
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.750-0.875 in. (1.90-2.22 cm);
- Thread Size N.P.T.: 1";
- Form Size: F4;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $53.85
16 GRD-CGD-1025 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1025
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.875-1.000 in. (2.22-2.54 cm);
- Thread Size N.P.T.: 1";
- Form Size: F4;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $53.85
17 GRD-CGD-1026 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1026
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.875-1.000 in. (2.22-2.54 cm);
- Thread Size N.P.T.: 1 1/4";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $83.22
18 GRD-CGD-1027 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1027
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.000-1.125 in. (2.54-2.86 cm);
- Thread Size N.P.T.: 1 1/4";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $83.22
19 GRD-CGD-1028 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1028
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.125-1.250 in. (2.86-3.17 cm);
- Thread Size N.P.T.: 1 1/4";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $83.22
20 GRD-CGD-1029 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1029
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.875-1.000 in. (2.22-2.54 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $97.93
21 GRD-CGD-1030 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1030
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.000-1.125 in. (2.54-2.86 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $97.93
22 GRD-CGD-1031 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1031
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.125-1.250 in. (2.86-3.17 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $97.93
23 GRD-CGD-1032 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-1032
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.250-1.375 in. (3.17-3.49 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $97.93
24 GRD-CGD-11028 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11028
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.125-1.250 in. (2.86-3.17 cm);
- Thread Size N.P.T.: 1";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $126.95
25 GRD-CGD-11029 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11029
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.250-1.375 in. (3.17-3.49 cm);
- Thread Size N.P.T.: 1";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $83.22
26 GRD-CGD-11178 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11178
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.250-1.375 in. (3.17-3.49 cm);
- Thread Size N.P.T.: 1 1/4";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $83.22
27 GRD-CGD-11195 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11195
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.375-0.500 in. (.95-1.27 cm);
- Thread Size N.P.T.: 1";
- Form Size: F4;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $57.15
28 GRD-CGD-11247 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11247
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.625-0.750 in. (1.59-1.90 cm);
- Thread Size N.P.T.: 1/2";
- Form Size: F3;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $38.88
29 GRD-CGD-11248 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11248
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.750-0.875 in. (1.90-2.22 cm);
- Thread Size N.P.T.: 1/2";
- Form Size: F3;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $38.88
30 GRD-CGD-11249 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11249
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.750-0.875 in. (1.90-2.22 cm);
- Thread Size N.P.T.: 3/4";
- Form Size: F3;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $47.46
31 GRD-CGD-11250 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11250
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.000-1.125 in. (2.54-2.86 cm);
- Thread Size N.P.T.: 1";
- Form Size: F4;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $57.15
32 GRD-CGD-11251 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11251
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.750-0.875 in. (1.90-2.22 cm);
- Thread Size N.P.T.: 1 1/4";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $83.22
33 GRD-CGD-11252 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11252
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 0.750-0.875 in. (1.90-2.22 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F5;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $97.93
34 GRD-CGD-11253 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11253
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.312-1.437 in. (3.33-3.65 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F6;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $124.53
35 GRD-CGD-11254 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11254
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.437-1.562 in. (3.65-3.97 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F6;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $189.96
36 GRD-CGD-11255 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11255
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.562-1.687 in. (3.97-4.28 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F6;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $145.26
37 GRD-CGD-11256 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11256
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.687-1.812 in. (4.28-4.60 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F6;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $145.26
38 GRD-CGD-11257 Gleason Deluxe Cord Grips for Strain Relief, P/N: CGD-11257
Features:
- Aluminum Fittings, Stainless Steel Mesh, Liquidtight for Insulated Cables;
- Jacket may have to be stripped to pass through connector body;
- Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the National Electric Code Sections 501-4(b), 502-4(a), 502-4(b), 503-3(a) and 503-3(b);
Specifications:
- Grip Diameter Range: 1.750-1.875 in. (4.44-4.76 cm);
- Thread Size N.P.T.: 1 1/2";
- Form Size: F6;
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $145.26

Kellems Support Grips
Permanent support when cable end is available for grip installation

No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-CG01 Gleason Hubbell Kellems Cable Grip
Strain relief for the lead end of electric cable
Stocking Type
Cable OD Range of 0.50 thru 0.62 [4/2017]
- 0 $70.75
2 GRD-CG02 Gleason Hubbell Kellems Cable Grip
Strain relief for the lead end of electric cable
Stocking Type
Cable OD Range of 0.63 thru 0.74
aka 602061 02201014 [4/2017]
- 0 $77.90
3 GRD-CG03 Gleason Hubbell Kellems Cable Grip
Strain relief for the lead end of electric cable
Stocking Type
Cable OD Range of 0.75 thru 0.99 [4/2017]
- 0 $89.85
4 GRD-CG04 Gleason Hubbell Kellems Cable Grip
Strain relief for the lead end of electric cable
Stocking Type
Cable OD Range of 1.00 thru 1.25 [4/2017]
- 0 $109.85
5 GRD-CG-01013 Gleason Support Grips, P/N: CG-01013
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.50-0.62 in. (13-16 mm);
- Approx. Breaking Strength: 530 lbs. (2,357 N);
- E Size: 7 in. (178 cm);
- M Size: 10 in. (254 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $20.85
6 GRD-CG-01014 Gleason Support Grips, P/N: CG-01014
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.63-0.74 in. (16-19 mm);
- Approx. Breaking Strength: 790 lbs. (3,514 N);
- E Size: 8 in. (203 cm);
- M Size: 10 in. (254 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $22.57
7 GRD-CG-01015 Gleason Support Grips, P/N: CG-01015
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.75-0.99 in. (19-25 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 8 in. (203 cm);
- M Size: 13 in. (330 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $25.87
8 GRD-CG-01017 Gleason Support Grips, P/N: CG-01017
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.00-1.24 in. (25-32 mm);
- Approx. Breaking Strength: 1,610 lbs. (7,161 N);
- E Size: 9 in. (229 cm);
- M Size: 14 in. (356 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $29.17
9 GRD-CG-01018 Gleason Support Grips, P/N: CG-01018
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.25-1.49 in. (32-38 mm);
- Approx. Breaking Strength: 1,610 lbs. (7,161 N);
- E Size: 10 in. (254 cm);
- M Size: 15 in. (381 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $31.09
10 GRD-CG-01019 Gleason Support Grips, P/N: CG-01019
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.50-1.74 in. (38-44 mm);
- Approx. Breaking Strength: 1,610 lbs. (7,161 N);
- E Size: 12 in. (305 cm);
- M Size: 17 in. (432 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $34.26
11 GRD-CG-01020 Gleason Support Grips, P/N: CG-01020
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.75-1.99 in. (44-51 mm);
- Approx. Breaking Strength: 2,150 lbs. (9,563 N);
- E Size: 14 in. (356 cm);
- M Size: 19 in. (483 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $46.93
12 GRD-CG-01037 Gleason Support Grips, P/N: CG-01037
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.50-0.62 in. (13-16 mm);
- Approx. Breaking Strength: 500 lbs. (2,224 N);
- E Size: 4 in. (102 cm);
- M Size: 10 in. (254 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $18.16
13 GRD-CG-01038 Gleason Support Grips, P/N: CG-01038
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.63-0.74 in. (16-19 mm);
- Approx. Breaking Strength: 750 lbs. (3,336 N);
- E Size: 4 in. (102 cm);
- M Size: 10 in. (254 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $20.00
14 GRD-CG-01039 Gleason Support Grips, P/N: CG-01039
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.75-0.99 in. (19-25 mm);
- Approx. Breaking Strength: 950 lbs. (4,226 N);
- E Size: 4 in. (102 cm);
- M Size: 13 in. (330 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $20.85
15 GRD-CG-01041 Gleason Support Grips, P/N: CG-01041
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.00-1.24 in. (25-32 mm);
- Approx. Breaking Strength: 1,500 lbs. (6,672 N);
- E Size: 5 in. (127 cm);
- M Size: 14 in. (356 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $23.63
16 GRD-CG-01042 Gleason Support Grips, P/N: CG-01042
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.25-1.49 in. (32-38 mm);
- Approx. Breaking Strength: 1,500 lbs. (6,672 N);
- E Size: 5 in. (127 cm);
- M Size: 15 in. (381 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $26.13
17 GRD-CG-01043 Gleason Support Grips, P/N: CG-01043
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.50-1.74 in. (38-44 mm);
- Approx. Breaking Strength: 1,500 lbs. (6,672 N);
- E Size: 5 in. (127 cm);
- M Size: 17 in. (432 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $31.62
18 GRD-CG-01044 Gleason Support Grips, P/N: CG-01044
Features:
- Permanent support when cable end is available for grip installation;
- Support-Standard Duty, Offset Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.75-1.99 in. (44-51 mm);
- Approx. Breaking Strength: 2,000 lbs. (8,896 N);
- E Size: 6 in. (152 cm);
- M Size: 19 in. (483 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $38.48
19 GRD-CG-06010 Gleason Support Grips, P/N: CG-06010
Features:
- Permanent support when cable end is available for grip installation;
- Support-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.75-0.99 in. (19-25 mm);
- Approx. Breaking Strength: 2,820 lbs. (12,543 N);
- E Size: 10 in. (254 cm);
- M Size: 25 in. (635 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $90.11
20 GRD-CG-06011 Gleason Support Grips, P/N: CG-06011
Features:
- Permanent support when cable end is available for grip installation;
- Support-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.00-1.24 in. (25-32 mm);
- Approx. Breaking Strength: 4,280 lbs. (19,037 N);
- E Size: 10 in. (254 cm);
- M Size: 28 in. (711 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $93.54
21 GRD-CG-06012 Gleason Support Grips, P/N: CG-06012
Features:
- Permanent support when cable end is available for grip installation;
- Support-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.25-1.49 in. (32-38 mm);
- Approx. Breaking Strength: 4,280 lbs. (19,037 N);
- E Size: 10 in. (254 cm);
- M Size: 30 in. (762 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $97.48
22 GRD-CG-06013 Gleason Support Grips, P/N: CG-06013
Features:
- Permanent support when cable end is available for grip installation;
- Support-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.50-1.99 in. (38-51 mm);
- Approx. Breaking Strength: 4,280 lbs. (19,037 N);
- E Size: 10 in. (254 cm);
- M Size: 34 in. (864 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $110.28
23 GRD-CG-16001 Gleason Support Grips, P/N: CG-16001
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.23-0.31 in. (6-8 mm);
- Approx. Breaking Strength: 290 lbs. (1,290 N);
- E Size: 3 in. (76 cm);
- M Size: 3.75 in. (95 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $8.92
24 GRD-CG-16002 Gleason Support Grips, P/N: CG-16002
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.29-0.37 in. (7-9 mm);
- Approx. Breaking Strength: 290 lbs. (1,290 N);
- E Size: 4 in. (102 cm);
- M Size: 4.25 in. (108 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $9.11
25 GRD-CG-16003 Gleason Support Grips, P/N: CG-16003
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.35-0.44 in. (9-11 mm);
- Approx. Breaking Strength: 500 lbs. (2,224 N);
- E Size: 4 in. (102 cm);
- M Size: 4.75 in. (121 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $15.61
26 GRD-CG-16004 Gleason Support Grips, P/N: CG-16004
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.41-0.50 in. (10-13 mm);
- Approx. Breaking Strength: 500 lbs. (2,224 N);
- E Size: 5 in. (127 cm);
- M Size: 5.00 in. (127 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $10.24
27 GRD-CG-16005 Gleason Support Grips, P/N: CG-16005
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.46-0.56 in. (12-14 mm);
- Approx. Breaking Strength: 660 lbs. (2,936 N);
- E Size: 6 in. (152 cm);
- M Size: 5.25 in. (133 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $12.74
28 GRD-CG-16006 Gleason Support Grips, P/N: CG-16006
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.52-0.62 in. (13-16 mm);
- Approx. Breaking Strength: 790 lbs. (3,514 N);
- E Size: 7 in. (178 cm);
- M Size: 6.25 in. (159 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $14.39
29 GRD-CG-16007 Gleason Support Grips, P/N: CG-16007
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.58-0.68 in. (15-17 mm);
- Approx. Breaking Strength: 790 lbs. (3,514 N);
- E Size: 7 in. (178 cm);
- M Size: 6.50 in. (165 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $15.18
30 GRD-CG-16008 Gleason Support Grips, P/N: CG-16008
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.64-0.75 in. (16-19 mm);
- Approx. Breaking Strength: 790 lbs. (3,514 N);
- E Size: 7 in. (178 cm);
- M Size: 6.75 in. (171 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $15.18
31 GRD-CG-16009 Gleason Support Grips, P/N: CG-16009
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.70-0.81 in. (18-21 mm);
- Approx. Breaking Strength: 790 lbs. (3,514 N);
- E Size: 7 in. (178 cm);
- M Size: 7.25 in. (184 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $15.38
32 GRD-CG-16010 Gleason Support Grips, P/N: CG-16010
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.75-0.87 in. 19-22 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 8 in. (203 cm);
- M Size: 8.00 in. (203 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $16.37
33 GRD-CG-16011 Gleason Support Grips, P/N: CG-16011
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.81-0.94 in. (21-24 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 8 in. (203 cm);
- M Size: 8.25 in. (210 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $17.03
34 GRD-CG-16012 Gleason Support Grips, P/N: CG-16012
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.87-1.00 in. (22-25 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 8 in. (203 cm);
- M Size: 8.75 in. (222 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $17.03
35 GRD-CG-16013 Gleason Support Grips, P/N: CG-16013
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.94-1.06 in. (24-27 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 9 in. (229 cm);
- M Size: 9.00 in. (229 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $17.03
36 GRD-CG-16014 Gleason Support Grips, P/N: CG-16014
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.00-1.18 in. (25-30 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 9 in. (229 cm);
- M Size: 9.50 in. (241 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $17.03
37 GRD-CG-16015 Gleason Support Grips, P/N: CG-16015
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Light Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.06-1.25 in. (27-32 mm);
- Approx. Breaking Strength: 1,020 lbs. (4,537 N);
- E Size: 9 in. (229 cm);
- M Size: 9.50 in. (241 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $17.95
38 GRD-CG-17001 Gleason Support Grips, P/N: CG-17001
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.23-0.31 in. (6-8 mm);
- Approx. Breaking Strength: 500 lbs. (2,224 N);
- E Size: 5 in. (127 cm);
- M Size: 4.50 in. (114 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $27.85
39 GRD-CG-17002 Gleason Support Grips, P/N: CG-17002
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.29-0.37 in. (7-9 mm);
- Approx. Breaking Strength: 500 lbs. (2,224 N);
- E Size: 5 in. (127 cm);
- M Size: 5.50 in. (140 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $28.51
40 GRD-CG-17003 Gleason Support Grips, P/N: CG-17003
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.35-0.44 in. (9-11 mm);
- Approx. Breaking Strength: 870 lbs. (3,870 N);
- E Size: 6 in. (152 cm);
- M Size: 6.50 in. (165 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $28.85
41 GRD-CG-17004 Gleason Support Grips, P/N: CG-17004
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.41-0.50 in. (10-13 mm);
- Approx. Breaking Strength: 870 lbs. (3,870 N);
- E Size: 6 in. (152 cm);
- M Size: 7.50 in. (191 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $30.30
42 GRD-CG-17005 Gleason Support Grips, P/N: CG-17005
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.46-0.56 in. (12-14 mm);
- Approx. Breaking Strength: 1,050 lbs. (4,670 N);
- E Size: 6 in. (152 cm);
- M Size: 8.00 in. (203 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $31.94
43 GRD-CG-17006 Gleason Support Grips, P/N: CG-17006
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.52-0.62 in. (13-16 mm);
- Approx. Breaking Strength: 1,050 lbs. (4,670 N);
- E Size: 7 in. (178 cm);
- M Size: 8.50 in. (216 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $32.28
44 GRD-CG-17007 Gleason Support Grips, P/N: CG-17007
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.58-0.68 in. (15-17 mm);
- Approx. Breaking Strength: 1,050 lbs. (4,670 N);
- E Size: 7 in. (178 cm);
- M Size: 9.50 in. (241 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $33.73
45 GRD-CG-17008 Gleason Support Grips, P/N: CG-17008
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.64-0.75 in. (16-19 mm);
- Approx. Breaking Strength: 1,390 lbs. (6,183 N);
- E Size: 7 in. (178 cm);
- M Size: 9.50 in. (241 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $36.69
46 GRD-CG-17009 Gleason Support Grips, P/N: CG-17009
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.70-0.81 in. (18-21 mm);
- Approx. Breaking Strength: 1,390 lbs. (6,183 N);
- E Size: 8 in. (203 cm);
- M Size: 10.50 in. (267 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $38.35
47 GRD-CG-17010 Gleason Support Grips, P/N: CG-17010
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.75-0.87 in. 19-22 mm);
- Approx. Breaking Strength: 1,390 lbs. (6,183 N);
- E Size: 8 in. (203 cm);
- M Size: 10.50 in. (267 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $39.40
48 GRD-CG-17011 Gleason Support Grips, P/N: CG-17011
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.81-0.94 in. (21-24 mm);
- Approx. Breaking Strength: 1,390 lbs. (6,183 N);
- E Size: 8 in. (203 cm);
- M Size: 10.50 in. (267 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $40.99
49 GRD-CG-17012 Gleason Support Grips, P/N: CG-17012
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.87-1.00 in. (22-25 mm);
- Approx. Breaking Strength: 1,790 lbs. (7,962 N);
- E Size: 8 in. (203 cm);
- M Size: 11.50 in. (292 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $43.63
50 GRD-CG-17013 Gleason Support Grips, P/N: CG-17013
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 0.94-1.06 in. (24-27 mm);
- Approx. Breaking Strength: 1,790 lbs. (7,962 N);
- E Size: 9 in. (229 cm);
- M Size: 12.50 in. (318 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $46.00
51 GRD-CG-17014 Gleason Support Grips, P/N: CG-17014
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.00-1.18 in. (25-30 mm);
- Approx. Breaking Strength: 1,790 lbs. (7,962 N);
- E Size: 9 in. (229 cm);
- M Size: 13.50 in. (343 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $48.97
52 GRD-CG-17015 Gleason Support Grips, P/N: CG-17015
Features:
- Permanent support when cable end is available for grip installation;
- Service Drop-Heavy Duty, Single Eye, Closed Mesh;
Specifications:
- Grip Diameter Range: 1.06-1.25 in. (27-32 mm);
- Approx. Breaking Strength: 1,790 lbs. (7,962 N);
- E Size: 9 in. (229 cm);
- M Size: 14.50 in. (368 mm);
(3LBS) H 4" L 12" W 4"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $57.88

NEMA 12 Electrical Boxes
Continuous hinge. Provides protection from dirt, dust, oil and water

No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-ENC-060604 Gleason NEMA 12 Electrical Box, P/N: ENC-060604
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 6.00x6.00x4.00 (152x152x102);
- Panel Size A x B: 4.88x4.88 (124x124);
- Mounting C x E: 6.75x4.00 (171x102);
- Overall L x M: 7.50x7.00 (191x178);
(12LBS) H 6" L 8" W 8"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $68.94
2 GRD-ENC-080804 Gleason NEMA 12 Electrical Box, P/N: ENC-080804
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 8.00x8.00x4.00 (203x203x102);
- Panel Size A x B: 6.88x6.88 (175x175);
- Mounting C x E: 8.75x6.00 (222x152);
- Overall L x M: 9.50x9.00 (241x229);
(12LBS) H 8" L 10" W 10"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $181.56
3 GRD-ENC-100804 Gleason NEMA 12 Electrical Box, P/N: ENC-100804
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 10.00x8.00x4.00 (254x203x102);
- Panel Size A x B: 8.88x6.88 (225x175);
- Mounting C x E: 10.75x6.00 (273x152);
- Overall L x M: 11.50x9.00 (292x229);
(14LBS) H 8" L 10" W 10"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $92.22
4 GRD-ENC-101006 Gleason NEMA 12 Electrical Box, P/N: ENC-101006
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 10.00x10.00x6.00 (254x254x152);
- Panel Size A x B: 8.88x8.88 (225x225);
- Mounting C x E: 10.75x8.00 (273x203);
- Overall L x M: 11.50x11.00 (292x279);
(16LBS) H 10" L 12" W 12"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $99.24
5 GRD-ENC-121206 Gleason NEMA 12 Electrical Box, P/N: ENC-121206
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 12.00x12.00x6.00 (305x305x152);
- Panel Size A x B: 10.88x10.88 (276x276);
- Mounting C x E: 12.75x10.00 (324x254);
- Overall L x M: 13.50x13.00 (343x330);
(16LBS) H 10" L 14" W 14"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $138.03
6 GRD-ENC-141206 Gleason NEMA 12 Electrical Box, P/N: ENC-141206
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 14.00x12.00x6.00 (356x305x152);
- Panel Size A x B: 12.88x10.88 (327x276);
- Mounting C x E: 14.75x10.00 (375x254);
- Overall L x M: 15.50x13.00 (394x330);
(18LBS) H 10" L 16" W 14"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $150.27
7 GRD-ENC-161006 Gleason NEMA 12 Electrical Box, P/N: ENC-161006
Features:
- Continuous hinge. Provides protection from dirt, dust, oil and water;
- Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes or electrical junction boxes;
- Heavy 14 gauge steel;
- Continuously welded seams;
- Closed-cell neoprene gasket;
- External mounting feet;
- Panel included;
- Weldnuts provided for mounting panel;
- External screw clamps are quick and easy to operate;
- Grounding kit provided;
- Furnished without knockouts;
- ANSI-61 gray polyester powder inside and out over phosphatised surfaces. Panels are painted white polyester powder;
- UL 50 Listed, Types 12 & 13;
- CSA Certified, Types 12 & 13;
- Meets NEMA/EEMAC Type 12 & 13 requirements;
- JIC EL - 1 - 71;
Specifications:
- Enclosure Size H x W x D: 16.00x10.00x6.00 (406x254x152);
- Panel Size A x B: 14.88x8.88 (378x226);
- Mounting C x E: 16.75x8.00 (425x203);
- Overall L x M: 17.50x11.00 (445x279);
(20LBS) H 10" L 18" W 12"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $128.07

Festoon Cable Connectors
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 GRD-CBF-21 Gleason Connector Flat Cable Connector Brass Construction
For Flat Cable
0.45 Inches High
1.18 Inches Wide
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $59.04
2 GRD-CBF-22 Gleason Connector Flat Cable Connector Brass Construction
For Flat Cable
0.45 Inches High
1.57 Inches Wide
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $87.27
3 GRD-CBF-23 Gleason Connector Flat Cable Connector Brass Construction
For Flat Cable
0.47 Inches High
1.77 Inches Wide
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $141.17
4 GRD-CBF-24 Gleason Connector Flat Cable Connector Brass Construction
For Flat Cable
0.47 Inches High
1.97 Inches Wide
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $192.52
5 GRD-CBR-01 Gleason Hubbell Connector
Round Cable Connector
Brass Construction
Round Cable Diameter Range
0.275 to - 0.492 Inches
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $12.83
6 GRD-CBR-02 Gleason Hubbell Connector
Round Cable Connector
Brass Construction
Round Cable Diameter Range
0.275 to - 0.590 Inches
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $15.40
7 GRD-CBR-03 Gleason Hubbell Connector
Round Cable Connector
Brass Construction
Round Cable Diameter Range
0.315 to - 0.630 Inches
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $17.97
8 GRD-CBR-04 Gleason Hubbell Connector
Round Cable Connector
Brass Construction
Round Cable Diameter Range
0.433 to - 0.866 Inches
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $25.68
9 GRD-CBR-05 Gleason Hubbell Connector
Round Cable Connector
Brass Construction
Round Cable Diameter Range
0.748 to - 1.22 Inches
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $48.77
10 GRD-CPF-31 Gleason Flat Cable Connector for junction boxes. Fits cables .016" - .045" Tall by 0.55" X 1.18" Wide. Clearance hole in junction box 1.469"
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $38.50
11 GRD-CPF-32 Gleason Flt Cable Conn. Plastic .45x1.57
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $53.91
12 GRD-CPF-33 Gleason Flat Cable Connector for junction boxes. Fits cables .020" - .047" Tall by 1.14" X 1.77" Wide. Clearance hole in junction box 2.125
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $148.89
13 GRD-CPF-34 Gleason Flat Cable Conn. Plastic .47x1.97
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $159.14
14 GRD-CPR-11 Gleason Round Cable Conn. Plastic .231-.394
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $10.27
15 GRD-CPR-12 Gleason Round Cable Conn. Plastic .270-.480
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $20.53
16 GRD-CPR-13 Gleason Round Cable Conn. Plastic .428-.546
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $23.11
17 GRD-CPR-14 Gleason Round Cable Conn. Plastic .545-.709
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $25.68
18 GRD-CPR-15 Gleason Round Cable Conn. Plastic .709-1.00
(2LBS) H 4" L 6" W 6"
Product available at Amazon.com and BrakeProducts.com
[Amazon]
0 $28.24
Secure Online Order



Secure Online Order

23,202 part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Click to visit our Amazon store

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Frequently Sold
Replacement Parts

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
PowerTrak Replacement Parts


Gleason
PowerTrak Replacement Parts


  • PowerTrak Replacement Parts
Reels Replacement Parts


Gleason
Reels Replacement Parts


  • Reels Replacement Parts
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
