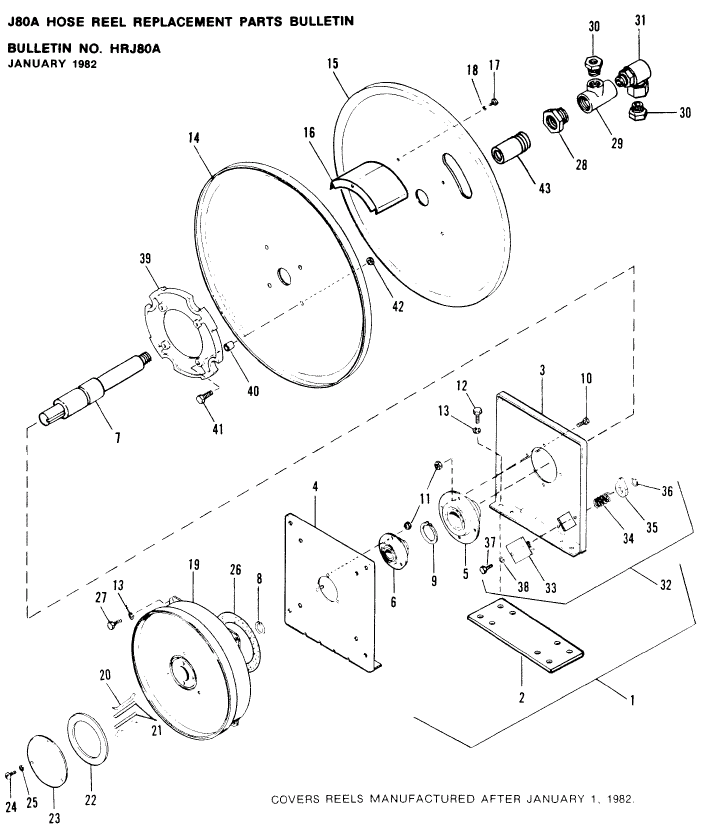

Gleason J80A Hose Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-006093 N/A - 0 N/A N/A N/A
2 1 GRD-G40-18 N/A - 0 N/A N/A N/A
3 1 GRD-G62-50 N/A - 0 N/A N/A N/A
4 1 GRD-G08-61A N/A - 0 N/A N/A N/A
5 1 GRD-G36-55 Gleason BEARING-FLANGETTE [NSN 3130-01-140-1543] - 0 $212.10
6 1 GRD-G36-56 Gleason BEARING-FLANGETTE [NSN 3130-01-140-4862] - 0 $151.90
7 1 GRD-006094 Gleason Hubbell Shaft Assembly Part 006094 Main Shaft Assembly For a J80A Hose Reel Standard Rotation Ships in 10 days, WI 53050 [NSN 3040-01-141-8273] Dated 1/18 - 0 $540.75
8 1 GRD-G34-08 Gleason SNAP RING [NSN 5325-01-140-7215] - 0 $4.40
9 1 GRD-G34-09 Gleason SNAP RING [NSN 5325-01-143-6852] - 0 $4.40
10 4 GRD-101322 Gleason HEX HD CS .31-18 X .875 - 0 $5.60
11 7 GRD-103281 N/A - 0 N/A N/A N/A
12 4 GRD-101320 Gleason HEX HD CS .31-18 X .625 - 0 $5.60
13 8 GRD-101091 Gleason WASHER LOCK .312 [NSN 5310-01-216-5697] - 0 $4.40
14 1 GRD-006085 Gleason Hubbell Spool Disc Part GR006085 Spool Disc for J Reel Inner 28 Inch Ships in 5 days, WI 53050 Dated 1/18 - 0 $306.70
15 1
GRD-006078 Gleason Hubbell Spool Disc Part GR006078 Spool Disc for J Reel Outer 28 Inch X 12 Inch Ships in 5 days, WI 53050 Dated 1/18 - 0 $306.70
GRD-006075 N/A - 0 N/A N/A N/A
GRD-006076 N/A - 0 N/A N/A N/A
16 4
GRD-G23-26 N/A - 0 N/A N/A N/A
GRD-G23-28 N/A - 0 N/A N/A N/A
GRD-G23-32 N/A - 0 N/A N/A N/A
17 4 GRD-101040 N/A - 0 N/A N/A N/A
18 4 GRD-101090 Gleason WASHER LOCK .250 - 0 $4.40
19 1
GRD-017049 Gleason Spring. Main Spring Kit Part GR017049 80 Series Main Spring For a "Standard Rotation" Cable Reel Containerized Safety Spring Assembly Includes: Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket [NSN 5360-01-148-5893] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 2 $1,039.40
GRD-017050 Gleason Spring. Main Spring Kit Part GR017050 For a Reel with an 80 Series Main Spring Designation And the Reverse Rotation option Includes Containerized Safety Spring Assembly Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket [NSN 6105-01-189-3576] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $1,039.40
20 2 GRD-G31-02 Gleason Pawl Spring 1.50 [NSN 5340-00-515-1473] - 0 $8.05
21 2 GRD-G30-02 Gleason Pawl, Cat # D-124548 - 0 $12.25
22 1 GRD-G51-23 Gleason GASKET-HUB COVER [NSN 5330-01-412-2779] - 0 $9.50
23 1 GRD-G27-42 Gleason Hub Cover Part GRD-G27-42 Spring Hub Cover Includes, Cover, Gasket & Hardware aka GRG27-42 10 Days to Ship Dated 3/17 (1LB) H 4" L 5" W 4" Box - 1 $12.25
24 3 GRD-101220 Gleason RD HD MS SLTD #8-32 X .25 LNG [NSN 5305-01-341-3544] - 0 $4.40
25 3 GRD-101086 N/A - 0 N/A N/A N/A
26 1 GRD-G51-26 Gleason FOAM GASKET [NSN 5330-01-341-2124] - 0 $7.45
27 4 GRD-105049 N/A - 0 N/A N/A N/A
28 1 GRD-101461 Gleason REDUCER 1X1/2 STL-GALV [NSN 4730-00-203-2836] - 0 $17.10
29 1
GRD-106267 Gleason TEE 1.00 NPT MALL-GALV [NSN 4730-00-249-2045] - 0 $45.10
GRD-106268 Gleason TEE .50 NPT MALL-GALV - 0 $45.00
30 2
GRD-101456 N/A - 0 N/A N/A N/A
GRD-101457 N/A - 0 N/A N/A N/A
GRD-101462 Gleason REDUCER 1 X 3/4 STL-GALV [NSN 4730-01-180-8451] - 0 $17.10
31 1
GRD-102159 Gleason SWVL JNT .50 W/ VITON SEALS [NSN 4910-01-142-3015] - 0 $225.60
GRD-102160 Gleason Swivel. Hose Swivel 1 Inch I.D., Male & Female Threads, 90 Degree, Viton Seals to 3500 P.S.I., nickle Plated, for 360 Degree Rotation (4LBS) [NSN 4930-01-175-5221] - 0 $330.35
32 Optional GRD-GL13-08 N/A - 0 N/A N/A N/A
33 1 GRD-000438 N/A - 0 N/A N/A N/A
34 1 GRD-G07-30 Gleason SPRING, TORSION [NSN 5360-01-141-7117] - 0 $47.05
35 1 GRD-G46-08 Gleason HOLDING DOG - 0 $84.35
36 1 GRD-G34-10 N/A - 0 N/A N/A N/A
37 2 GRD-101060 N/A - 0 N/A N/A N/A
38 2 GRD-101093 Gleason WASHER LOCK .375 - 0 $4.40
39 1 GRD-G45-13 N/A - 0 N/A N/A N/A
40 4 GRD-G18-35 N/A - 0 N/A N/A N/A
41 4 GRD-101355 N/A - 0 N/A N/A N/A
42 4 GRD-101346 Gleason Lock Nut Part GRD-101346 ESNA Lock Nut 3/8-16 Dated 3/17 - 0 $5.40
43 1 GRD-006095 Gleason Hubbell Shaft Extension Part GR006095 Main Shaft Extension Ships in 10 days, WI 53050 Dated 1/18 - 0 $344.25
Gleason "J80A" Parts List (PDF)
