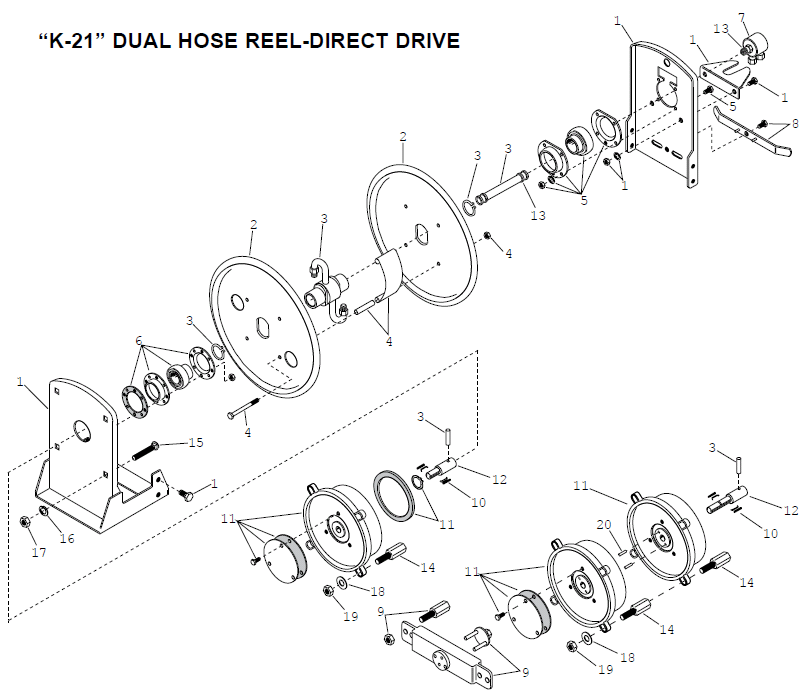

Gleason Series K Hose Reels K-21 Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1
GRD-015524 N/A - 0 N/A N/A N/A
GRD-015525 N/A - 0 N/A N/A N/A
GRD-015526 N/A - 0 N/A N/A N/A
2 1 GRD-015536 N/A - 0 N/A N/A N/A
3 1
GRD-015539 Gleason SPL SHAFT KIT KXX-XXXX-4 - 0 $765.95
GRD-015540 Gleason SPL SHAFT KIT KXX-XXXX-L - 0 $783.05
GRD-015541 Gleason Shaft Kit. SPL Shaft Kit -8 on a K28 1001-8-3 KXX-XXXX-8 - 0 $800.65
4 1
GRD-015543 Gleason SPL WRAPPER KIT KXX-XXXX-4 - 0 $131.45
GRD-015544 Gleason SPL WRAPPER KIT KXX-XXXX-6 - 0 $139.50
GRD-015545 Gleason SPL WRAPPER KIT KXX-XXXX-8 - 0 $147.85
5 1 GRD-015547 Gleason SPL BEARING KIT-SWIVEL END - 0 $316.15
6 1 GRD-015548 Gleason SPL BEARING KIT-SPRING END - 0 $335.85
7 1
GRD-700079 Gleason Swivel Joint Assembly
For Series "K" Dual Hydraulic Hose Reels
Size K-4 denotes a 1/4 Inch ID Swivel
- 0 $744.05
GRD-700080 Gleason Swivel Joint Assembly
For Series "K" Dual Hydraulic Hose Reels
Size K-6 denotes a 3/8 Inch ID Swivel
- 0 $744.05
GRD-700081 Gleason Swivel Joint Assembly
For Series "K" Dual Hydraulic Hose Reels
Size K-8 denotes a 1/2 Inch ID Swivel
- 0 $744.05
8 1
GRD-017190 Gleason Hubbell Cable Reel Part
Tension Wrench
For 35, 60, 62, & 75 Series Main Springs
Item 13, 1 per reel
Part GRD-017190
aka GR017190
[NSN 3895-01-200-9414]
Ships in 3 Days
(5LB) Dated 3/17
- 1 $90.55
GRD-017191 Gleason Spring Wrench for 100 Series Springs 4/14 - 0 $88.45
9 1
GRD-032805 Gleason Pre Tension Wrench for the 70 & 80 Series Springs - 1 $203.95
GRD-032804 Gleason Wrench. Pre-Tension Wrench with Socket for the 100 Series Spring (10LBS) 5/9 - 4 $317.75
10 A/R
GRD-012425 Gleason Hubbell Cable Reel Part
Pawl Kit
For 35 & 60 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
Part GRD-012425
aka GR012425
Ships in 3 Days
(1LB)
- 0 $52.70
GRD-012426 Gleason Hubbell Cable Reel Part
Pawl Kit
For 62, 75 or 80 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
Part GRD-012426
aka GR012426
[NSN 3040-01-223-0631]
Ships in 3 Days
(1LB)
- 2 $54.80
GRD-012427 Gleason Pawl Kit for a 100 Series Spring
[NSN 3040-01-316-6511]
- 0 $55.65
11 A/R
GRD-017041 Gleason Spring. Main Spring Kit
35 Series, Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(30LBS) H 4" L 10" W 10" Box
[Amazon}
[NSN 5360-01-423-7121]
- 1 $578.85
GRD-017042 Gleason Spring. Main Spring Kit
35 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(30LBS) H 4" L 10" W 10" Box
- 0 $578.85
GRD-017043 Gleason Spring. Main Spring Kit
60 Series, Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(30LBS) H 4" L 10" W 10" Box
- 2 $624.05
GRD-017044 Gleason Spring. Main Spring Kit
60 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(30LBS) H 4" L 10" W 10" Box
- 0 $624.05
GRD-017045 Gleason Spring
Part GRD-017045
Main Spring Kit
62 Series for a Standard Rotation Cable Reel
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
aka GR017045
Ships in 1 Week Dated 3/17
(50LBS) H 4" L 10" W 10" Box
- 2 $877.95
GRD-017046 Gleason Spring. Main Spring Kit
62 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
- 0 $877.95
GRD-017047 Gleason Spring. Main Spring Kit
75 Series, Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
- 0 $923.85
GRD-017048 Gleason Spring. Main Spring Kit
75 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
[NSN 5360-01-224-2307]
- 0 $923.85
GRD-017049 Gleason Spring. Main Spring Kit
Part GRD-017049
80 Series Main Spring
For a "Standard Rotation" Cable Reel
Containerized Safety Spring Assembly
Includes:
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
[NSN 5360-01-148-5893]
(50LBS) H 4" L 10" W 10" Box
- 0 $1,014.05
GRD-017050 Gleason Spring. Main Spring Kit
Part GRD-017050
80 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
[NSN 6105-01-189-3576]
- 0 $1,014.05
GRD-017051 Gleason Spring
Main Spring Kit
Part GRD-017051
100 Series
Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
aka GR017051
Part GRD-017051
[NSN 5360-01-297-1022]
[Amazon]
(65LBS) H 4" L 13" W 13" Box
27 $1,397.55
GRD-017052 Gleason Spring
Part GRD-017052
Main Spring Kit
100 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
aka GR017052
[Amazon] Dated 3/17
(65LBS) H 4" L 13" W 13" Box
- 0 $1,397.55
12 1
GRD-014200 Gleason STUB SHAFT STD. ROT. KXX-351 - 0 $398.95
GRD-01420001 N/A - 0 N/A N/A N/A
GRD-014202 Gleason STUB SHAFT STD. ROT. KXX-751 - 0 $429.20
GRD-01420201 Gleason STUB SHAFT REV. ROT. KXX-751 - 0 $429.20
GRD-016306 Gleason STUB SHAFT STD ROT KXX-752-XX - 0 $472.30
GRD-01630601 Gleason STUB SHAFT REV ROT KXX-752-XX - 0 $765.95
GRD-014204 Gleason STUB SHAFT STD. ROT. KXX-1001 - 0 $439.95
GRD-01420401 N/A - 0 N/A N/A N/A
13 1
GRD-015564 Gleason Repair Kit Seal Repair Kit
Replacement Seal Kit
Part GRD-GR015564
K-4, K-6 & K-8 Swivel Sizes
Standard Nitrile Seals
For Swivel Part #'s GR700079, GR700080 & GR700081
(1LB) H 4" L 5" W 4" Box
- 0 $101.55
GRD-015565 Gleason REPL. SEAL KIT K-4/K-8 PROPYL - 0 $100.85
GRD-015566 Gleason REPL. SEAL KIT K-4/K-8 VIT0N - 0 $100.85
14 A/R
GRD-017054 Gleason Hubbell Cable Reel Part
Extension Bolt Kit for Spring Motors
For 80 Series Main Springs
Includes 4 Bolts
3 Inches Long
Part GRD-017054
aka GR017054
(1LB) H 4" L 6" W 4" Box
- 2 $37.35
GRD-017055 Gleason Bolt Kit
Part GRD-017055
Stud Bolt Extension Kit
For Spring Motors
For 100 Series Main Springs
Includes 4 Bolts
4 Inches Long
aka GR017055
[NSN 5307-01-341-3562]
(1LBS) H 4" L 6" W 4" Box
- 4 $41.35
15 A/R GRD-016182 N/A - 0 N/A N/A N/A
16 A/R GRD-021291 N/A - 0 N/A N/A N/A
17 A/R GRD-100959 Gleason Part
Hex NUT 0.500-13
Part GRD-100959
aka GR100959
[NSN 5310-01-341-2107]
(1LB)
- 0 $5.20
18 A/R GRD-101211 Gleason Part
Flat Washer 1/2 Inch
Part GRD-101211
aka GR101211
(1LB)
- 0 $3.90
19 A/R GRD-P06-03 Gleason Part
Lock Nut
Part GRD-P06-03
aka GRP06-03
[NSN 5310-01-066-4059]
(1LB)
- 0 $5.20
20 A/R
GRD-021762 Gleason Hub Lock Pin Kit
GRD-021762
For 100 Series Main Springs
2 pieces
aka GR021762 Date 3/17
(1LB) H 4" L 5" W 4" Box
- 0 $11.30
GRD-021761 Gleason Hub Lock Pin Kit for 80 Series Main Springs. 2 pieces (<1LB) - 0 $5.80
Gleason "K-21" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Click to visit our Amazon store

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Frequently Sold
Replacement Parts

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
PowerTrak Replacement Parts


Gleason
PowerTrak Replacement Parts


  • PowerTrak Replacement Parts
Reels Replacement Parts


Gleason
Reels Replacement Parts


  • Reels Replacement Parts
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
