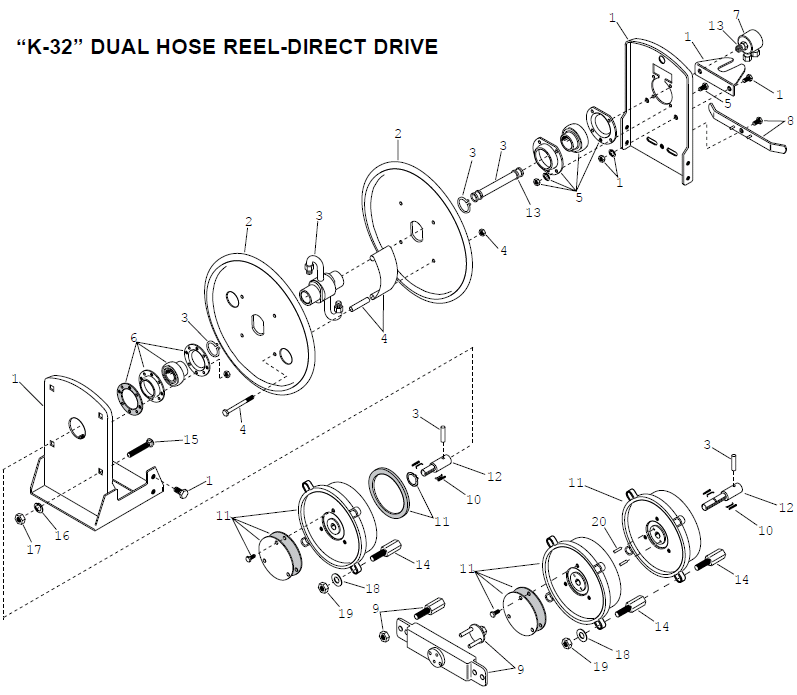

Gleason Series K Hose Reels K-32 Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1
GRD-016297 N/A - 0 N/A N/A N/A
GRD-016298 N/A - 0 N/A N/A N/A
GRD-016299 N/A - 0 N/A N/A N/A
GRD-016300 N/A - 0 N/A N/A N/A
2 1
GRD-016301 N/A - 0 N/A N/A N/A
GRD-016302 N/A - 0 N/A N/A N/A
3 1
GRD-015539 Gleason SPL SHAFT KIT KXX-XXXX-4 - 0 $765.95
GRD-015540 Gleason SPL SHAFT KIT KXX-XXXX-L - 0 $783.05
GRD-015541 Gleason Shaft Kit. SPL Shaft Kit -8 on a K28 1001-8-3 KXX-XXXX-8 - 0 $800.65
GRD-015542 Gleason SPL SHAFT KIT KXX-XXXX-12 - 0 $794.50
4 1
GRD-015543 Gleason SPL WRAPPER KIT KXX-XXXX-4 - 0 $131.45
GRD-015544 Gleason SPL WRAPPER KIT KXX-XXXX-6 - 0 $139.50
GRD-015545 Gleason SPL WRAPPER KIT KXX-XXXX-8 - 0 $147.85
GRD-015546 Gleason SPL WRAPPER KIT KXX-XXXX-12 - 0 $155.70
5 1 GRD-015547 Gleason SPL BEARING KIT-SWIVEL END - 0 $316.15
6 1 GRD-015548 Gleason SPL BEARING KIT-SPRING END - 0 $335.85
7 1
GRD-700079 Gleason Swivel Joint Assembly For Series "K" Dual Hydraulic Hose Reels Size K-4 denotes a 1/4 Inch ID Swivel - 0 $744.05
GRD-700080 Gleason Swivel Joint Assembly For Series "K" Dual Hydraulic Hose Reels Size K-6 denotes a 3/8 Inch ID Swivel - 0 $744.05
GRD-700081 Gleason Swivel Joint Assembly For Series "K" Dual Hydraulic Hose Reels Size K-8 denotes a 1/2 Inch ID Swivel - 0 $744.05
GRD-015549 Gleason Swivel Joint Assembly Part GRD-GR015549 For Series "K" Dual Hydraulic Hose Reels Size K12 Denotes a 3/4 Inch ID Swivel aka GR063862 Ships in 5 Days or sooner Dated 4/17 - 0 $1,044.40
8 1
GRD-017190 Gleason Wrench Part GRD-017190 Spanner Wrench For 35 60 62 75 Series Main Springs aka GR017190 [NSN 3895-01-200-9414] Dated 4/17 Ships from Stock WI (5LBS) - 1 $90.55
GRD-017191 Gleason Wrench Part GR017191 Spanner Wrench For 100 Series Main Springs Part GR017052 and others Dated 4/17 Ships from stock WI - 0 $91.75
9 1
GRD-032805 Gleason Pre Tension Wrench for the 70 & 80 Series Springs - 1 $203.95
GRD-032804 Gleason Wrench. Pre-Tension Wrench with Socket for the 100 Series Spring (10LBS) 5/9 - 4 $317.75
10 A/R
GRD-012425 Gleason Hubbell Cable Reel Part Pawl Kit For 35 & 60 Series Main Springs Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring Item 12, 1 per reel Part GRD-012425 aka GR012425 Ships in 3 Days (1LB) - 0 $52.70
GRD-012426 Gleason Hubbell Cable Reel Part Pawl Kit For 62, 75 or 80 Series Main Springs Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring Item 12, 1 per reel Part GRD-012426 aka GR012426 [NSN 3040-01-223-0631] Ships in 3 Days (1LB) - 2 $54.80
GRD-012427 Gleason Pawl Kit for a 100 Series Spring [NSN 3040-01-316-6511] - 0 $55.65
11 A/R
GRD-017041 Gleason Spring Part GR017041 Main Spring Kit 35 Series, Standard Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka GR017041 [NSN 5360-01-423-7121] [Amazon} Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 0 $593.30
GRD-017042 Gleason Spring. Main Spring Kit 35 Series, Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 0 $593.30
GRD-017043 Gleason Spring. Main Spring Kit Part GR017043 60 Series Main Spring Kit For Standard Rotation Cable Reels Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka 017043 Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 2 $639.65
GRD-017044 Gleason Spring. Main Spring Kit 60 Series, Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 0 $639.65
GRD-017045 Gleason Spring Part GR017045 Main Spring Kit 62 Series for a Standard Rotation Cable Reel Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket aka 017045 Ships in 1 Week Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 2 $899.90
GRD-017046 Gleason Spring. Main Spring Kit Part GR017046 62 Series, Reverse Rotation Includes: Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $899.90
GRD-017047 Gleason Spring. Main Spring Kit Part GR017047 75 Series Main Spring For a Standard Rotation cable Reel Includes: Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 6 $946.95
GRD-017048 Gleason Spring. Main Spring Kit 75 Series, Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket [NSN 5360-01-224-2307] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $946.95
GRD-017049 Gleason Spring. Main Spring Kit Part GR017049 80 Series Main Spring For a "Standard Rotation" Cable Reel Containerized Safety Spring Assembly Includes: Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket [NSN 5360-01-148-5893] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 2 $1,039.40
GRD-017050 Gleason Spring. Main Spring Kit Part GR017050 For a Reel with an 80 Series Main Spring Designation And the Reverse Rotation option Includes Containerized Safety Spring Assembly Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket [NSN 6105-01-189-3576] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $1,039.40
GRD-017051 Gleason Hubbell Main Spring Kit Part GR017051 100 Series Main Spring For Standard Rotation Reels Includes: Containerized Safety Spring Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket aka 017051 [NSN 5360-01-297-1022] [Amazon] Dated 1/18 Ships in 5 days, WI 53050 (65LBS) H 4" L 13" W 13" Box 38 $1,432.50
GRD-017052 Gleason Spring Part GR017052 Main Spring Kit 100 Series Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka GR017052 [Amazon] Dated 1/18 (65LBS) H 4" L 13" W 13" Box - 0 $1,432.50
12 1
GRD-014200 Gleason STUB SHAFT STD. ROT. KXX-351 - 0 $398.95
GRD-01420001 N/A - 0 N/A N/A N/A
GRD-014202 Gleason STUB SHAFT STD. ROT. KXX-751 - 0 $429.20
GRD-01420201 Gleason STUB SHAFT REV. ROT. KXX-751 - 0 $429.20
GRD-016306 Gleason STUB SHAFT STD ROT KXX-752-XX - 0 $472.30
GRD-01630601 Gleason STUB SHAFT REV ROT KXX-752-XX - 0 $765.95
GRD-014204 Gleason STUB SHAFT STD. ROT. KXX-1001 - 0 $439.95
GRD-01420401 N/A - 0 N/A N/A N/A
13 1
GRD-015564 Gleason Repair Kit Seal Repair Kit Replacement Seal Kit Part GRD-GR015564 K-4, K-6 & K-8 Swivel Sizes Standard Nitrile Seals For Swivel Part #'s GR700079, GR700080 & GR700081 (1LB) H 4" L 5" W 4" Box - 0 $101.55
GRD-015565 Gleason REPL. SEAL KIT K-4/K-8 PROPYL - 0 $100.85
GRD-015566 Gleason Hubbell Seal Kit Part 015566 Replacement Swivel Seals Viton For Hydraulic Fluid Hose Reels K-4, K-6 & K-8 Older Hose Swivel to 2017 Item 13, 1 per Reel Ships in 5 days, WI 53050 Dated 1/18 - 0 $109.10
GRD-015567 Gleason Repair Kit Seal Repair Kit Replacement Seal Kit K-12 Swivel Size 3/4 Inch ID Standard Seals For Swivel Part 015549 - 0 $100.85
GRD-015568 Gleason SPL REPL SEAL KIT KIZ - 0 $102.80
GRD-015569 N/A - 0 N/A N/A N/A
14 A/R
GRD-017054 Gleason Hubbell Bolt Kit Part GR017054 Extension Bolt Kit For 80 Series Main Springs Includes 4 Bolts 3 Inches Long aka 017054 Ships in 5 days Dated 1/18 (21LBS) H 4" L 6" W 4" Box - 2 $40.40
GRD-017055 Gleason Bolt Kit Part GRD-017055 Stud Bolt Extension Kit For Spring Motors For 100 Series Main Springs Includes 4 Bolts 4 Inches Long aka GR017055 [NSN 5307-01-341-3562] Dated 1/18 Ships in 5 days (1LBS) H 4" L 6" W 4" Box - 4 $43.10
15 A/R GRD-016182 N/A - 0 N/A N/A N/A
16 A/R GRD-021291 N/A - 0 N/A N/A N/A
17 A/R GRD-100959 Gleason Part Hex NUT 0.500-13 Part GRD-100959 aka GR100959 [NSN 5310-01-341-2107] (1LB) - 0 $5.20
18 A/R GRD-101211 Gleason Part Flat Washer 1/2 Inch Part GRD-101211 aka GR101211 (1LB) - 0 $3.90
19 A/R GRD-P06-03 Gleason Part Lock Nut Part GRD-P06-03 aka GRP06-03 [NSN 5310-01-066-4059] (1LB) - 0 $5.20
20 A/R
GRD-021762 Gleason Hubbell Hub Lock Pin Kit Part GR021762 For 100 Series Main Springs 2 pieces aka 021762 Dated 1/18 Ships in 3 days, WI 53050 (1LB) H 4" L 5" W 4" Box - 0 $11.80
GRD-021761 Gleason Hubbell Hub Lock Pin Kit Part GR021761 For 80 Series Main Springs Qty 2 Ships in 3 days, WI 53050 Dated 1/18 - 0 $6.25
Gleason "K-32" Parts List (PDF)
