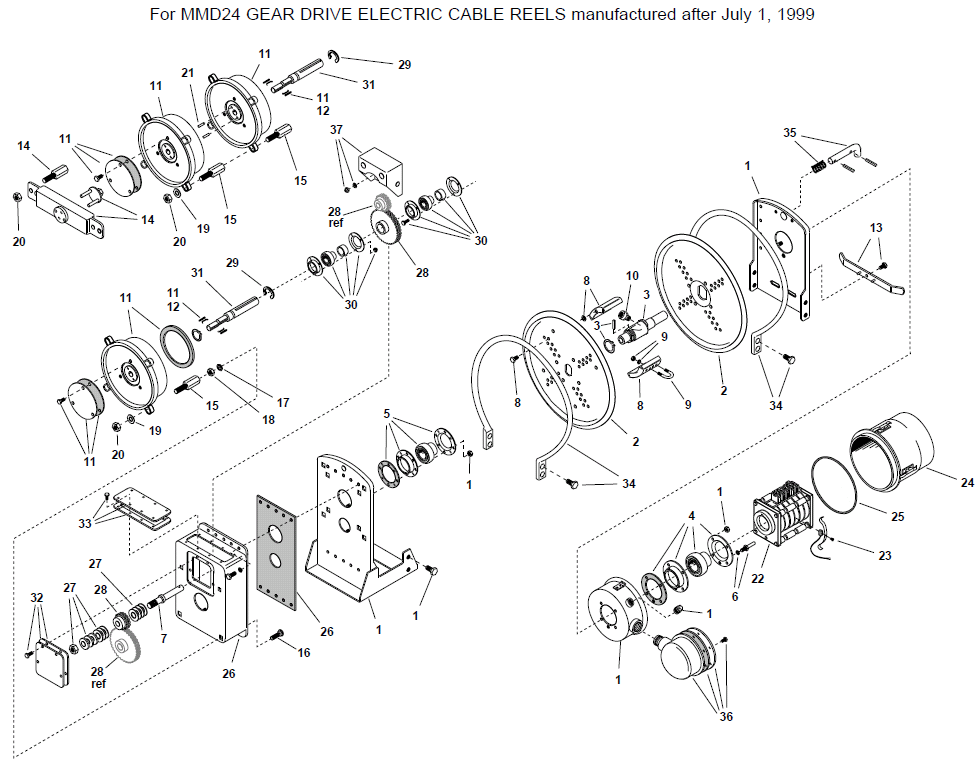

Gleason Mill Duty Gear Drive Electric Cable Reels MMD24 (Manufactured after July 1, 1999) Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-GR012394 Gleason SPL FRAME ASSY S24 (aka GR012394) [4/2017] [1/2018] - 0 $2,737.95
2 1 GRD-GR012407 Gleason SPL DISCS S24 (aka GR012407) [4/2017] [1/2018] - 0 $1,362.85
3 1 GRD-GR012397 Gleason SPL MAIN SHAFT ASSY S16-S24 (aka GR012397) [4/2017] [1/2018] - 0 $1,075.55
4 1 GRD-GR012402 Gleason BEARING KIT (aka GR012402) [4/2017] [1/2018] - 0 $163.55
5 1 GRD-GR012401 Gleason SPL BEARING KIT 1.75 BORE (aka GR012401) [4/2017] [1/2018] - 0 $382.40
6 1 GRD-GR012456 Gleason SPL DRIVE STUD KIT (aka GR012456) [4/2017] [1/2018] - 1 $76.85
7 1 GRD-GR017230 N/A - 0 N/A N/A N/A
8 1
GRD-GR012416 Gleason SPL WRAPPER KIT 5.0W X SM.DIA (aka GR012416) [4/2017] [1/2018] - 0 $316.55
GRD-GR012417 Gleason SPL WRAPPER KIT 5.0W X LG.DIA (aka GR012417) [4/2017] [1/2018] - 0 $329.50
9 1
GRD-GR012444 Gleason Hubbell Clamp Kit
Part GR012444
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 0.38 to 0.74 Inches
aka GR012444
[NSN 5340-01-342-1000]
Ships in 5 Days
Dated 1/18
(1LB) H 4" L 5" W 4" Box
- 0 $11.90
GRD-GR012445 Gleason SPL CABLE CLAMP KIT .75-1.11 (aka GR012445) [4/2017] [1/2018] - 0 $14.75
GRD-GR012446 Gleason SPL CABLE CLAMP KIT 1.25-1.50 (aka GR012446) [4/2017] [1/2018] - 0 $15.45
10 1
GRD-GR012459 N/A - 0 N/A N/A N/A
GRD-GR012460 Gleason SPL CABLE CONN. .50-.62 CABLE (aka GR012460) [4/2017] [1/2018] - 0 $114.35
GRD-GR012461 Gleason SPL CABLE CONN. .62-.75 CABLE (aka GR012461) [4/2017] [1/2018] - 1 $118.60
GRD-GR012462 Gleason SPL CABLE CONN .75-.88 CABLE (aka GR012462) [4/2017] [1/2018] - 0 $165.55
GRD-GR012463 Gleason SPL CABLE CONN .88-1.00 CABLE (aka GR012463) [4/2017] [1/2018] - 0 $174.45
GRD-GR012464 Gleason SPL CABLE CONN 1.00-1.12 CABLE (aka GR012464) [4/2017] [1/2018] - 0 $178.80
GRD-GR012465 Gleason SPL CABLE CONN 1.12-1.25 CABLE (aka GR012465) [4/2017] [1/2018] - 0 $185.25
GRD-GR012466 Gleason SPL CABLE CONN 1.25-1.38 CABLE (aka GR012466) [4/2017] [1/2018] - 1 $205.95
GRD-GR012467 Gleason SPL CABLE CONN 1.38-1.50 CABLE (aka GR012467) [4/2017] [1/2018] - 0 $312.95
11 A/R
GRD-GR017052 Gleason Hubbell Main Spring
Part 017052
aka GR017052
Main Spring Kit
100 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
Dated 1-19
(65LBS) H 4" L 13" W 13" Box
- 3 $1,461.15
GRD-GR017051 Gleason Hubbell Main Spring Kit
Part 017051
aka GR017051
100 Series Main Spring
For Standard Rotation Reels
Includes:
Containerized Safety Spring
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-297-1022 Gov #
Ships from BPI Stock
Dated 1-2020
(68LBS) H 4" L 13" W 13" Box
- 36 $1,461.15
12 A/R GRD-GR012427 Gleason SPL PAWL KIT 100 SPRING (aka GR012427) [4/2017] [1/2018] - 0 $67.30
13 1 GRD-GR017191 Gleason SPL TENSION WRENCH 100 SPRING (aka GR017191) [4/2017] [1/2018] - 0 $106.95
14 1 GRD-GR032804 Gleason PRE-TENSION WRENCH KIT-100 (aka GR032804) [4/2017] [1/2018] - 4 $384.30
15 A/R GRD-GR017055 Gleason SPL STUD BOLT-EXTENSION 4.00LG (aka GR017055) [4/2017] [1/2018] - 4 $48.20
16 A/R GRD-GR016182 N/A - 0 N/A N/A N/A
17 A/R GRD-GR021291 N/A - 0 N/A N/A N/A
18 A/R GRD-GR100959 N/A - 0 N/A N/A N/A
19 A/R GRD-GR101211 N/A - 0 N/A N/A N/A
20 A/R GRD-GRP06-03 N/A - 0 N/A N/A N/A
21 A/R GRD-GR021762 Gleason HUB LOCK PIN KIT-100 SPRINGS (aka GR021762) [4/2017] [1/2018] - 0 $13.20
22 1
GRD-GR012285 Gleason Slip Ring Assembly
Part GR012285
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 23
[Amazon]
Dated 1/18
(8LBS) H 5" L 10" W 5" Box
- 1 $1,288.60
GRD-GR012286 Gleason Slip Ring Assembly
Part GR012286
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 33
Dated 1/18
(9LBS) H 5" L 10" W 5" Box
- 1 $1,366.65
GRD-GR012287 Gleason Hubbell Slip Ring Assembly
Part 012287
aka GR012287
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 43
NSN 5977-01-311-2203 Gov
Ships from Stock to 10 Days
Dated 1-19
(10LBS) H 5" L 10" W 5" Box
2 $1,452.75
GRD-GR012288 Gleason Hubbell Slip Ring Assembly
Part 012288
aka GR012288
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 63
NSN 5977-01-186-6639 Gov
Dated 1-19
(10LBS) H 5" L 12" W 5" Box
- 0 $1,686.85
GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83
Part 012289
aka GR012289
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 83
NSN 5977-01-265-5103 Gov
Dated 1-2020
(10LBS) H 5" L 12" W 5" Box
- 0 $1,921.35
GRD-GR012290 Gleason Hubbell Slip Ring Assembly
Part 012290
aka GR012290
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
10 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 103
aka GR012290
[NSN 5977-01-252-6406]
Dated 1-19
(12LBS) H 5" L 14" W 5" Box
- 0 $2,186.45
GRD-GR012291 Gleason Hubbell Slip Ring Assembly
Part 012291
aka GR012291
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
12 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 123
Ship sin 10 Days, WI 53050
Dated 1-2020
- 0 $2,452.05
GRD-GR012292 Gleason Hubbell Slip Ring Assembly
Part 012292
aka GR012292
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
14 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 143
Dated 1-19
(16LBS) H 5" L 18" W 5" Box
- 0 $2,664.40
GRD-GR012293 Gleason Hubbell Slip Ring Assembly
Part 012293
aka GR012293
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
16 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 163
Ships in 10 Days, WI 53050
Dated 1-19
(18LBS) H 5" L 20" W 5" Box
- 0 $3,045.05
GRD-GR012294 Gleason Slip Ring Assembly
Part GR012294
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
20 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 203
aka GR012294
[NSN 5977-01-362-0979]
Dated 1/18
(20LBS) H 5" L 22" W 5" Box
- 0 $3,958.35
GRD-GR012295 Gleason Hubbell Slip Ring Assembly
Part 012295
aka GR012295
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
24 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 243
[NSN 5977-01-371-8300]
Ships in 10 Days, WI 53050
Dated 1-19
(22LBS) H 5" L 24" W 5" Box
- 0 $4,445.90
GRD-GR012296 Gleason Hubbell Slip Ring Assembly
Part 012296
aka GR012296
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
30 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 303
[NSN 5977-01-181-3136]
Dated 1-19
(24LBS) H 5" L 26" W 5" Box
- 0 $5,200.20
GRD-GR012297 N/A - 0 N/A N/A N/A
GRD-GR012298 Gleason Hubbell Slip Ring Assembly
Part RP075-02
aka GR012298
ROTA-POWER Self Contained Slip Ring
75 Amp Continuous Duty
Must be derated for multiple conductors
2 Conductor / Circuits
600 Volt Maximum
8 AWG Lead Wires for connection
2 Inch ID Drive Collar with double screws
6.38 Inch, Assembled Length Dim "A"
Part # 27
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 1-19
(10LBS) H 7" L 10" W 8" Box
- 1 $1,335.75
GRD-GR012299 Gleason Hubbell Slip Ring Assembly
Part 012299
aka GR012299
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 37
Dated 1-19
(13LBS) H 6" L 10" W 6" Box
2 $1,445.20
GRD-GR012300 Gleason Hubbell Slip Ring Assembly
Part 012300
aka GR012300
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 1-2020
- 0 $1,530.90
GRD-GR012376 Gleason Hubbell Slip Ring Assembly
Part 012376
aka GR012376
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
aka GR012376
[NSN 5977-01-317-4238]
Dated 1-19
(10LBS) H 5" L 10" W 5" Box
- 0 $1,733.80
GRD-GR012377 Gleason Hubbell Slip Ring Assembly
Part 012377
aka GR012377
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#87
Dated 1-19
(10LBS) H 5" L 10" W 5" Box
- 0 $1,859.15
GRD-GR037194 Gleason Slip Ring Assembly
A Completely Self Contained Assembly
125 Amps Continuous Duty
2 Conductor / Circuits
600 Volts Maximum
2 Inch Bore Diameter
aka GR037194
# 212, 012301
(7LBS) H 6" L 8" W 6" Box
0 $2,354.00
GRD-GR037294 Gleason COLLECTOR ASSY 312 (aka GR037294) [4/2017] [1/2018] - 1 $2,643.30
GRD-GR037295 Gleason COLLECTOR ASSY 412 (aka GR037295) [4/2017] [1/2018] - 0 $2,877.55
GRD-GR012304 Gleason Hubbell Slip Ring Assembly
Part 012304
aka GR012304
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
aka #220
Dated 1-19
(10LBS) H 6" L 10" W 6" Box
- 0 $2,084.75
GRD-GR012381 Gleason Hubbell Slip Ring Assembly
Part 012381
aka GR012381
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#320
Dated 1-19
(12LBS) H 6" L 10" W 6" Box
- 0 $2,514.65
GRD-GR012382 Gleason Hubbell Slip Ring Assembly
Part 012382
aka GR012382
#420 090065
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#420
Dated 3-19
Ships from Stock to 5 Days
5 $2,943.30
GRD-GR012383 Gleason COLLECTOR ASSY 620 (aka GR012383) [4/2017] [1/2018] - 0 $4,012.90
GRD-GR012384 Gleason Hubbell Slip Ring Assembly
Part 012384
aka GR012384
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#820
Dated 1-19
(18LBS) H 6" L 16" W 6" Box
- 0 $5,031.45
23 A/R
GRD-GR012440 Gleason Hubbell Brush Kit
Part 012440
aka GR012440
Includes:
4, Brushes
4, Brush Fingers - Springs & Instructions
For a 3 or 4 Conductors 35 AMP Slip Ring
NSN 5977-01-182-7784 US Gov #
Dated 1-2020
Ships in 5 Days, WI 53050
(2LBS) H 4" L 8" W 4" Box
- 0 $313.60
GRD-GR012441 Gleason Hubbell Brush Kit
Part 012441
aka GR012441
For a 75 Amp Slip Ring Assembly
Includes:
4 Brushes
4, Spring Fingers & Instructions
NSN 5977-01-317-4284 Gov #
Ships from Stock to 5 Days
Dated 1-2020
(2LBS) H 4" L 8" W 4" Box"
- 1 $619.10
GRD-GR012443 Gleason Hubbell Brush Kit
Part 012443
aka GR012443
For a 200 Amp Slip Ring Assembly
Includes:
4 Brushes / 2 Brushes per Ring
Spring Fingers & Instructions
Enough brushes & spring fingers for a 2 conductor slip ring assembly
Ships from Stock to 5 Days, WI 53050
Dated 1-2020
(2LBS) H 4" L 8" W 4" Box
- 0 $663.00
24 1
GRD-GR012409 Gleason SPL COLL. COVER KIT 8.00LG (aka GR012409) [4/2017] [1/2018] - 0 $572.10
GRD-GR012410 Gleason Cable Reel Part
Slip Ring Cover Kit
Part GRD-GR012410
Extends 10.5 Inches to Cover the Slip Ring
aka GR012410
Ships in 5 Days
(10LBS) H 6" L 12" W 6" Box 3/17 [1/2018]
- 2 $625.65
GRD-GR012411 Gleason SPL COLL. COVER KIT 13.00LG (aka GR012411) [4/2017] [1/2018] - 0 $717.10
GRD-GR012412 Gleason SPL COLL. COVER KIT 15.50LG (aka GR012412) [4/2017] [1/2018] - 0 $738.15
GRD-GR012413 Gleason SPL COLL. COVER KIT 20.50LG (aka GR012413) [4/2017] [1/2018] - 0 $841.05
GRD-GR012414 Gleason SPL COLL. COVER KIT 28.50LG (aka GR012414) [4/2017] [1/2018] - 0 $1,155.75
25 1 GRD-GR012458 Gleason SPL COLL. HOUSING SEAL RING (aka GR012458) [4/2017] [1/2018] - 3 $59.15
26 1 GRD-GR045716 N/A - 0 N/A N/A N/A
27 1 GRD-GR016525 Gleason SPL GEAR DE-TENSION KIT SM2 (aka GR016525) [4/2017] [1/2018] - 0 $605.85
28 1
GRD-GR045717 N/A - 0 N/A N/A N/A
GRD-GR045718 Gleason GEAR KIT,B-RATIO,FOR DETENSION (aka GR045718) [4/2017] [1/2018] - 0 $2,083.20
GRD-GR045719 N/A - 0 N/A N/A N/A
GRD-GR045720 Gleason GEAR KIT,D-RATIO,FOR DETENSION (aka GR045720) [4/2017] [1/2018] - 0 $2,083.20
GRD-GR045721 N/A - 0 N/A N/A N/A
GRD-GR045722 N/A - 0 N/A N/A N/A
GRD-GR045723 N/A - 0 N/A N/A N/A
GRD-GR045724 N/A - 0 N/A N/A N/A
GRD-GR045725 N/A - 0 N/A N/A N/A
GRD-GR045726 N/A - 0 N/A N/A N/A
GRD-GR045727 N/A - 0 N/A N/A N/A
29 1 GRD-GR118320 Gleason RETAINING RING 5103-125 (aka GR118320) [4/2017] [1/2018] - 0 $4.60
30 2 GRD-GR012400 Gleason SPL BEARING KIT GEARBOX (aka GR012400) [4/2017] [1/2018] - 0 $192.95
31 1
GRD-GR012217 Gleason SPRING SHAFT-GEARED 1001 (aka GR012217) [4/2017] [1/2018] - 0 $656.95
GRD-GR01221701 Gleason SPRING SHAFT-GEARED 1001 REV (aka GR01221701) [4/2017] [1/2018] - 0 $656.95
GRD-GR012218 Gleason SPRING SHAFT-GEARED 1002 (aka GR012218) [4/2017] [1/2018] - 0 $740.65
GRD-GR01221801 Gleason SPRING SHAFT-GEARED 1002 REV (aka GR01221801) [4/2017] [1/2018] - 0 $740.65
GRD-GR012219 Gleason SPRING SHAFT-GEARED 1003 (aka GR012219) [4/2017] [1/2018] - 0 $824.90
GRD-GR01221901 Gleason SPRING SHAFT-GEARED 1003 REV (aka GR01221901) [4/2017] [1/2018] - 0 $824.90
GRD-GR012220 Gleason SPRING SHAFT-GEARED 1004 (aka GR012220) [4/2017] [1/2018] - 0 $909.20
GRD-GR01222001 Gleason SPRING SHAFT-GEARED 1004 REV (aka GR01222001) [4/2017] [1/2018] - 0 $909.20
32 1 GRD-GR045728 N/A - 0 N/A N/A N/A
33 1 GRD-GR045729 N/A - 0 N/A N/A N/A
34 1 GRD-GR012098 Gleason Hubbell Hoop Guide Assembly
Part 012098
aka GR012098
Centers the cable on the spool at many retrieval angle
For a S28 Cable Reel
Dated 1-19
- 0 $430.00
35 1 GRD-GR012091 Gleason Hubbell Spool Lock
Part 012091
aka GR012091
Spool Lock Assembly
For S16 through S32 Cable Reels
Secures the spool facilitating cable reel maintenance
NSN 5342-01-341-2171 Gov #
Ships in 5 Days, WI 53050
Dated 1-2020
(6LBS) H 6" L 8" W 6" Box
- 0 $140.00
36 1 GRD-GR015660 N/A - 0 N/A N/A N/A
37 1 GRD-GR045747 N/A - 0 N/A N/A N/A
Gleason "MMD24-Gear-Current" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "A" Cast Aluminum Reels
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
  • WS Replacement Parts
Gleason Replacement Parts


Gleason Replacement Parts

  • PowerTrak Replacement Parts

  • Reel Replacement Parts
Entertainment Solutions


Gleason
Entertainment Solutions


From performing arts and concerts to studio and television, Gleason Reel has the right products for the right application. These events typically include a variety of learning and entertainment activities, performances, plays and general assemblies, or large-scale seminars, theatre productions and award ceremonies. These spaces must accommodate the latest audio, visual, and lighting technology while providing maximum reliability to ensure that the show goes on.


  • Entertainment Products Guide
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
