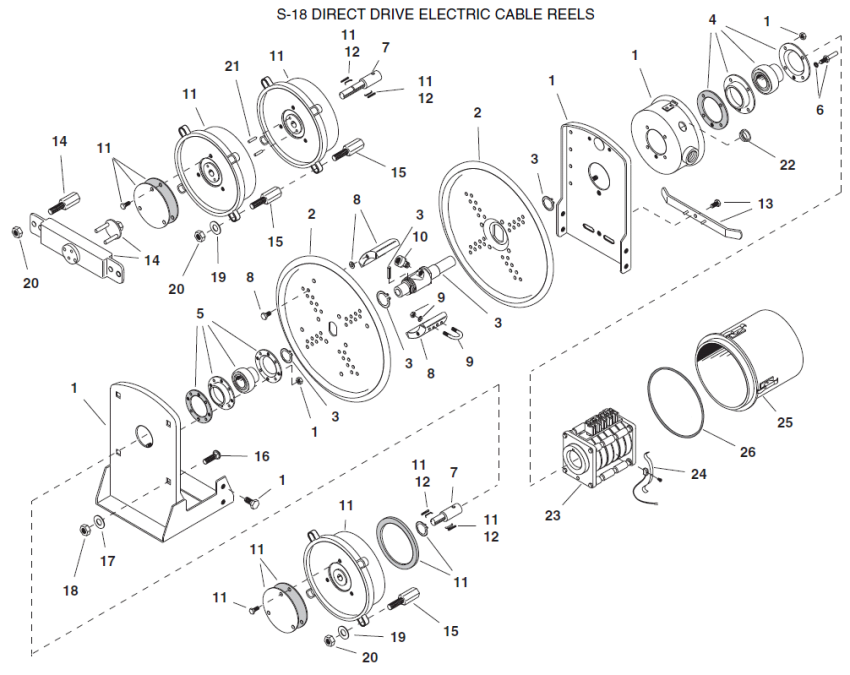

Gleason S-18 Direct Drive Electric Cable Reel Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-012392 Gleason SPL FRAME ASSY S18 - 0 $1,947.75
2 1 GRD-012405 Gleason SPL DISCS S18 - 0 $1,012.70
3 1 GRD-012397 Gleason SPL MAIN SHAFT ASSY S16-S24 4/14 [NSN 3040-01-132-7274] - 0 $889.30
4 1 GRD-012402 Gleason Cable Reel Part S14 Bearing Kit 2 Inch Bore Includes 2 Housings & Gasket Item 4, 1 per reel Part GRD-012402 aka GR012402 [NSN 3120-01-234-0350] Ships in 3 Days - 1 $140.30
5 1 GRD-012401 Gleason Cable Reel Part S14 Bearing Kit 1.75 Inch Bore Includes 2 Housings & Gasket Item 5, 1 per reel Part GRD-012401 aka GR012401 [NSN 3120-01-233-0577] Ships in 3 Days - 0 $316.15
6 1 GRD-012456 Gleason Cable Reel Part S14 Drive Stud Kit Item 6, 1 per reel Part GRD-012456 aka GR012456 Ships in 3 Days - 1 $63.55
7 1
GRD-012208 Gleason STUB SHAFT-DIRECT 351,601 - 0 $398.95
GRD-01220801 Gleason STUB SHAFT-DIRECT 351,601 REV - 0 $398.95
GRD-012209 Gleason Shaft. Stub Shaft connects to the main shaft on a Standard Rotation, Direct Drive Reel with a Single Main Spring, Main Spring Series 62 or 75 (5LBS) [NSN 3040-01-262-7584] - 0 $429.20
GRD-01220901 Gleason Shaft Part GRD-GR01220901 Stub Shaft For Direct Drive Reels Single Spring Models 621,751 & 801 Rev Rot aka GRD-01220901 [NSN 3040-01-223-7342] (4LBS) H 4" L 6" W 4" Box - 0 $445.30
GRD-012210 Gleason Shaft Spring Motor Stub Shaft Connects to the Main Shaft On a Standard Rotation, Direct Drive Reel with Two Main Springs Main Spring Series 62 or 80 (6LBS) H 4.00" L 8.00" W 4.00" [Amazon] 0 $499.10
GRD-01221001 Gleason Shaft Spring Motor Stub Shaft Connects to the Main Shaft On a Standard Rotation, Direct Drive Reel with Two Main Springs Main Spring Series 622 or 802 (6LBS) H 4.00" L 8.00" W 4.00" - 0 $499.10
GRD-012211 Gleason Stub Shaft for a 603 & 803 spring reel, standard rotation - 0 $583.50
GRD-01221101 Gleason STUB SHAFT-DIRECT 623,803 REV - 0 $583.50
GRD-012212 Gleason STUB SHAFT-DIRECT 624 - 0 $657.85
GRD-01221201 Gleason Stub Shaft, Reverse Rotation - 0 $657.85
GRD-012213 Gleason Stub Shaft for a 100 Series Spring, Standard Rotation with single spring stack on a direct drive reel - 0 $439.95
GRD-01221301 Gleason Stub Shaft for a 100 Series Spring, Reverse Rotation with a single spring stack on a direct drive reel - 0 $422.75
GRD-012214 Gleason Stub Shaft. Stub Shaft for 100 Series Springs, Standard Rotation, for a 2 spring stack, direct drive reel - 0 $517.30
GRD-01221401 Gleason Stub Shaft. Stub Shaft for 100 Series Springs, Reverse Rotation, for a 2 spring stack, direct drive reel - 1 $517.30
GRD-012371 Gleason Stub Shaft 100 Series Springs Qty 3 Spring Pack Direct Drive Standard Rotation Part GRD-012371 aka GR012371 - 0 $469.70
GRD-01237101 Gleason Stub Shaft 100 Series Springs Qty 3 Spring Pack Direct Drive Reverse Rotation Part GRD-01237101 aka GR01237101 - 0 $608.20
GRD-014619 Gleason Shaft. Stub Shaft for a 4 Spring Reel - 0 $668.15
GRD-01461901 Gleason SHAFT,STUB,DIRECT,1004,REV - 0 $668.15
8 1
GRD-012416 Gleason SPL WRAPPER KIT 5.0W X SM.DIA - 0 $261.75
GRD-012417 Gleason SPL WRAPPER KIT 5.0W X LG.DIA - 0 $272.45
9 1
GRD-012444 Gleason Hubbell Clamp Kit Part GR012444 Cable Clamp Kit Item 9, 1 per reel U Bolt & Hardware For Cable Diameters 0.38 to 0.74 Inches aka GR012444 [NSN 5340-01-342-1000] Ships in 5 Days Dated 1/18 (1LB) H 4" L 5" W 4" Box - 0 $10.65
GRD-012445 Gleason Cable Clamp Kit Part 012445 Cable Clamp Kit Item 9, 1 per reel U Bolt & Hardware For Cable Diameters 0.75 to 1.11 Inches aka GR012445 Ships in 5 Days Dated 1/18 - 0 $13.20
GRD-012446 Gleason Cable Reel Part Cable Clamp Kit Item 9, 1 per reel U Bolt & Hardware For Cable Diameters 1.25 to 1.50 Inches Part GRD-012446 aka GR012446 Ships in 3 Days - 0 $12.75
10 1
GRD-012459 N/A - 0 N/A N/A N/A
GRD-012460 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.50 to 0.62 Inches Part GRD-012460 aka GR012460 Ships in 3 Days (1LB) - 0 $94.55
GRD-012461 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.62 to 0.75 Inches Part GRD-012461 aka GR012461 Ships in 3 Days (1LB) - 1 $98.05
GRD-012462 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.75 to 0.88 Inches Part GRD-012462 aka GR012462 Ships in 3 Days (1LB) - 0 $136.85
GRD-012463 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.88 to 1.00 Inches Part GRD-012463 aka GR012463 Ships in 3 Days (1LB) - 0 $144.25
GRD-012464 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.00 to 1.12 Inches Part GRD-012464 aka GR012464 Ships in 3 Days (1LB) - 0 $147.85
GRD-012465 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.12 to 1.25 Inches Part GRD-012465 aka GR012465 Ships in 3 Days (1LB) - 0 $153.20
GRD-012466 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.25 to 1.38 Inches Part GRD-012466 aka GR012466 Ships in 3 Days (1LB) - 1 $170.30
GRD-012467 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.38 to 1.50 Inches Part GRD-012467 aka GR012467 Ships in 3 Days (1LB) - 0 $258.75
11 A/R
GRD-017041 Gleason Spring Part GR017041 Main Spring Kit 35 Series, Standard Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka GR017041 [NSN 5360-01-423-7121] [Amazon} Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 0 $593.30
GRD-017042 Gleason Spring. Main Spring Kit 35 Series, Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 0 $593.30
GRD-017043 Gleason Spring. Main Spring Kit Part GR017043 60 Series Main Spring Kit For Standard Rotation Cable Reels Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka 017043 Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 2 $639.65
GRD-017044 Gleason Spring. Main Spring Kit 60 Series, Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (30LBS) H 4" L 10" W 10" Box - 0 $639.65
GRD-017045 Gleason Spring Part GR017045 Main Spring Kit 62 Series for a Standard Rotation Cable Reel Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket aka 017045 Ships in 1 Week Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 2 $899.90
GRD-017046 Gleason Spring. Main Spring Kit Part GR017046 62 Series, Reverse Rotation Includes: Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $899.90
GRD-017047 Gleason Spring. Main Spring Kit Part GR017047 75 Series Main Spring For a Standard Rotation cable Reel Includes: Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 6 $946.95
GRD-017048 Gleason Spring. Main Spring Kit 75 Series, Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket [NSN 5360-01-224-2307] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $946.95
GRD-017049 Gleason Spring. Main Spring Kit Part GR017049 80 Series Main Spring For a "Standard Rotation" Cable Reel Containerized Safety Spring Assembly Includes: Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket [NSN 5360-01-148-5893] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 2 $1,039.40
GRD-017050 Gleason Spring. Main Spring Kit Part GR017050 For a Reel with an 80 Series Main Spring Designation And the Reverse Rotation option Includes Containerized Safety Spring Assembly Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket [NSN 6105-01-189-3576] Dated 1/18 (50LBS) H 4" L 10" W 10" Box - 0 $1,039.40
GRD-017051 Gleason Hubbell Main Spring Kit Part GR017051 100 Series Main Spring For Standard Rotation Reels Includes: Containerized Safety Spring Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket aka 017051 [NSN 5360-01-297-1022] [Amazon] Dated 1/18 Ships in 5 days, WI 53050 (65LBS) H 4" L 13" W 13" Box 36 $1,432.50
GRD-017052 Gleason Spring Part GR017052 Main Spring Kit 100 Series Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka GR017052 [Amazon] Dated 1/18 (65LBS) H 4" L 13" W 13" Box - 0 $1,432.50
12 A/R
GRD-012425 Gleason Hubbell Cable Reel Part Pawl Kit For 35 & 60 Series Main Springs Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring Item 12, 1 per reel Part GRD-012425 aka GR012425 Ships in 3 Days (1LB) - 0 $52.70
GRD-012426 Gleason Hubbell Cable Reel Part Pawl Kit For 62, 75 or 80 Series Main Springs Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring Item 12, 1 per reel Part GRD-012426 aka GR012426 [NSN 3040-01-223-0631] Ships in 3 Days (1LB) - 2 $54.80
GRD-012427 Gleason Pawl Kit for a 100 Series Spring [NSN 3040-01-316-6511] - 0 $55.65
13 1
GRD-017190 Gleason Wrench Part GRD-017190 Spanner Wrench For 35 60 62 75 Series Main Springs aka GR017190 [NSN 3895-01-200-9414] Dated 4/17 Ships from Stock WI (5LBS) - 1 $90.55
GRD-017191 Gleason Wrench Part GR017191 Spanner Wrench For 100 Series Main Springs Part GR017052 and others Dated 4/17 Ships from stock WI - 0 $91.75
14 1
GRD-032805 Gleason Pre Tension Wrench for the 70 & 80 Series Springs - 1 $203.95
GRD-032804 Gleason Wrench. Pre-Tension Wrench with Socket for the 100 Series Spring (10LBS) 5/9 - 4 $317.75
15 A/R
GRD-017054 Gleason Hubbell Bolt Kit Part GR017054 Extension Bolt Kit For 80 Series Main Springs Includes 4 Bolts 3 Inches Long aka 017054 Ships in 5 days Dated 1/18 (21LBS) H 4" L 6" W 4" Box - 2 $40.40
GRD-017055 Gleason Bolt Kit Part GRD-017055 Stud Bolt Extension Kit For Spring Motors For 100 Series Main Springs Includes 4 Bolts 4 Inches Long aka GR017055 [NSN 5307-01-341-3562] Dated 1/18 Ships in 5 days (1LBS) H 4" L 6" W 4" Box - 4 $43.10
16 A/R GRD-016182 N/A - 0 N/A N/A N/A
17 A/R GRD-021291 N/A - 0 N/A N/A N/A
18 A/R GRD-100959 Gleason Part Hex NUT 0.500-13 Part GRD-100959 aka GR100959 [NSN 5310-01-341-2107] (1LB) - 0 $5.20
19 A/R GRD-101211 Gleason Part Flat Washer 1/2 Inch Part GRD-101211 aka GR101211 (1LB) - 0 $3.90
20 A/R GRD-P06-03 Gleason Part Lock Nut Part GRD-P06-03 aka GRP06-03 [NSN 5310-01-066-4059] (1LB) - 0 $5.20
21 A/R
GRD-021762 Gleason Hubbell Hub Lock Pin Kit Part GR021762 For 100 Series Main Springs 2 pieces aka 021762 Dated 1/18 Ships in 3 days, WI 53050 (1LB) H 4" L 5" W 4" Box - 0 $11.80
GRD-021761 Gleason Hubbell Hub Lock Pin Kit Part GR021761 For 80 Series Main Springs Qty 2 Ships in 3 days, WI 53050 Dated 1/18 - 0 $6.25
22 1 GRD-012457 Gleason Part Button Plug Part GRD-012457 aka GR012457 [NSN 5340-01-311-1525] (1LB) - 0 $4.40
23 1
GRD-012285 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 23 (8LBS) H 5.00" L 10.00" W 5.00" [Amazon] 1 $1,086.05
GRD-012286 Gleason Slip Ring Assembly Part GR012286 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 33 Dated 1/18 (9LBS) H 5" L 10" W 5" Box 1 $1,245.85
GRD-012287 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 43 Part GRD-012287 aka GR012287 [Amazon] [NSN 5977-01-311-2203] (10LBS) H 5" L 10" W 5" Box - 1 $1,224.45
GRD-012288 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 63 Part GRD-012288 aka GR012288 [Amazon] [NSN 5977-01-186-6639] (10LBS) H 5" L 12" W 5" Box - 0 $1,421.75
GRD-012289 Gleason Slip Ring Assembly 83 Part GRD-GR012289 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 83 Part GRD-012289 aka GR012289 [Amazon] [NSN 5977-01-265-5103] (10LBS) H 5" L 12" W 5" Box 0 $2,100.19
GRD-012290 Gleason Slip Ring Assembly Part GR012290 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 10 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 103 aka 012290 [NSN 5977-01-252-6406] Dated 1/18 (12LBS) H 5" L 14" W 5" Box - 0 $1,993.20
GRD-012291 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 12 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 123 Part GRD-012291 aka GR012291 (14LBS) H 5" L 16" W 5" Box - 0 $2,066.70
GRD-012292 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 14 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 143 Part GRD-012292 aka GR012292 (16LBS) H 5" L 18" W 5" Box - 0 $2,245.70
GRD-012293 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 16 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 163 Part GRD-012293 aka GR012293 (18LBS) H 5" L 20" W 5" Box - 0 $2,566.50
GRD-012294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 20 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 203 Part GRD-012294 aka GR012294 [NSN 5977-01-362-0979] (20LBS) H 5" L 22" W 5" Box - 0 $3,336.30
GRD-012295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 24 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 243 Part GRD-012294 aka GR012294 [NSN 5977-01-371-8300] (22LBS) H 5" L 24" W 5" Box - 0 $3,747.20
GRD-012296 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 30 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 303 Part GRD-012296 aka GR012296 [NSN 5977-01-181-3136 (24LBS) H 5" L 26" W 5" Box - 0 $4,383.00
GRD-012297 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 36 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 363 Part GRD-012297 aka GR012297 (26LBS) H 5" L 28" W 5" Box - 0 $5,165.70
GRD-012298 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 27 Part GRD-012298 aka GR012298 (12LBS) H 6" L 8" W 6" Box [Amazon] 1 $1,125.85
GRD-012299 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 37 Part GRD-012299 aka GR012299 (13LBS) H 6" L 10" W 6" Box [Amazon] 1 $1,218.05
GRD-012300 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 Part GRD-012300 aka GR012300 [NSN 5977-01-317-4238] [Amazon] (10LBS) H 5" L 10" W 5" Box 0 $1,290.30
GRD-012376 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 Part GRD-012376 aka GR012376 [Amazon] [NSN 5977-01-317-4238] (10LBS) H 5" L 10" W 5" Box - 0 $1,461.30
GRD-012377 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #87 Part GRD-012377 aka GR012377 [Amazon] (10LBS) H 5" L 10" W 5" Box - 0 $1,567.00
GRD-037194 Gleason Slip Ring Assembly Part GRD-GR037194 A Completely Self Contained Assembly 125 Amps Continuous Duty 2 Conductor / Circuits 600 Volts Maximum 2 Inch Bore Diameter aka # 212, 012301 037194 [Amazon] Dated 1/18 (7LBS) H 6" L 8" W 6" Box 0 $2,105.05
GRD-037294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #312 Part GRD-037294 aka GR037294 (10LBS) H 6" L 10" W 6" Box - 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #412 Part GRD-037295 aka GR037295 (10LBS) H 6" L 10" W 6" Box [Amazon] 0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly Part GRD-012304 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter aka GR012304 & #220 [Amazon] Dated 1/18 (10LBS) H 6" L 10" W 6" Box 0 $1,900.50
GRD-012381 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #320 Part GRD-012381 aka GR012381 (12LBS) H 6" L 10" W 6" Box - 0 $2,119.45
GRD-012382 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #420 Part GRD-012382 aka GR012382 aka 090065 [Amazon] Dated 4/17 (14LBS) H 6" L 12" W 6" Box 0 $2,573.75
GRD-012383 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #620 Part GRD-012383 aka GR012383 [Amazon] (16LBS) H 6" L 14" W 6" Box - 0 $3,382.20
GRD-012384 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #820 Part GRD-012384 aka GR012384 (18LBS) H 6" L 16" W 6" Box - 0 $4,240.70
24 A/R
GRD-012440 Gleason Brush Kit Part GR012440 Includes: 4, Brushes 4, Brush Fingers / Springs & Instructions For a 3 or 4 conductors 35 AMP Slip Ring [NSN 5977-01-182-7784] Dated 1/18 Ships in 5 days (2LBS) H 4" L 8" W 4" Box - 0 $280.40
GRD-012441 Gleason Brush Kit Part GRD-012441 For a 75 Amp Slip Ring Assembly Includes: 4 Brushes 4, Spring Fingers & Instructions aka GR012441 [NSN 5977-01-317-4284] [Amazon] (2LBS) H 4" L 8" W 4" Box" 7 $531.05
GRD-012443 Gleason Brush Kit Part GRD-012443 For a 200 Amp Slip Ring Assembly Includes: 4 Brushes / 2 Brushes per Ring Spring Fingers & Instructions Enough brushes & spring fingers for a 2 conductor slip ring assembly aka GR012443 Dated 4/17 Ships in 5 days OS (2LBS) H 4" L 8" W 4" Box - 0 $568.75
25 1
GRD-012409 Gleason Cable Reel Part Slip Ring Cover Kit Extends 8 Inches to Cover the Slip Ring Part GRD-012409 aka GR012409 Ships in 5 Days (10LBS) H 6" L 12" W 6" Box - 0 $473.00
GRD-012410 Gleason Cable Reel Part Slip Ring Cover Kit Part GRD-012410 Extends 10.5 Inches to Cover the Slip Ring aka GR012410 (10LBS) H 6" L 12" W 6" Box 3/17 [Amazon] 0 $483.03
GRD-012411 Gleason Cable Reel Part Slip Ring Cover Kit Extends 13 Inches to Cover the Slip Ring Part GRD-012411 aka GR012411 Ships in 5 Days (12LBS) H 6" L 14" W 6" Box - 0 $592.85
GRD-012412 Gleason Cable Reel Part Slip Ring Cover Kit Extends 15.5 Inches to Cover the Slip Ring Part GRD-012412 aka GR012412 Ships in 5 Days (12LBS) H 6" L 17" W 6" Box - 0 $610.30
GRD-012413 Gleason Cable Reel Part Slip Ring Cover Kit Extends 20.5 Inches to Cover the Slip Ring Part GRD-012413 aka GR012413 Ships in 5 Days (12LBS) H 6" L 22" W 6" Box - 0 $695.35
GRD-012414 Gleason Cable Reel Part Slip Ring Cover Kit Extends 28.5 Inches to Cover the Slip Ring Part GRD-012414 aka GR012414 Ships in 5 Days (12LBS) H 6" L 30" W 6" Box - 0 $955.50
26 1 GRD-012458 Gleason Cable Reel Part Slip Ring Cover Seal Part GRD-012458 aka GR012458 Ships in 5 Days (1LB) H 4" L 5" W 4" Box - 3 $48.90
