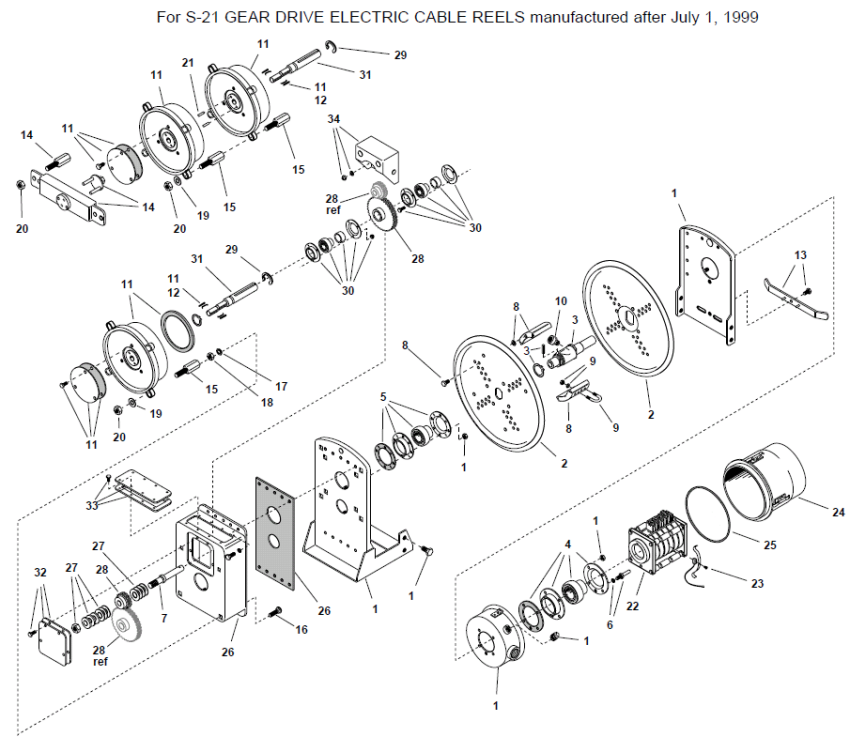

Gleason S-21 Gear Drive Electric Cable Reel Replacement Parts (manufactured after July 1, 1999)

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-012393 Gleason SPL FRAME ASSY S21 - 0 $2,105.55
2 1 GRD-012406 Gleason Disc Kit - 0 $1,070.20
3 1 GRD-012397 Gleason SPL MAIN SHAFT ASSY S16-S24 4/14
[NSN 3040-01-132-7274]
- 0 $889.30
4 1 GRD-012402 Gleason Cable Reel Part S14
Bearing Kit
2 Inch Bore
Includes 2 Housings & Gasket
Item 4, 1 per reel
Part GRD-012402
aka GR012402
[NSN 3120-01-234-0350]
Ships in 3 Days
- 1 $140.30
5 1 GRD-012401 Gleason Cable Reel Part S14
Bearing Kit
1.75 Inch Bore
Includes 2 Housings & Gasket
Item 5, 1 per reel
Part GRD-012401
aka GR012401
[NSN 3120-01-233-0577]
Ships in 3 Days
- 0 $316.15
6 1 GRD-012456 Gleason Cable Reel Part S14
Drive Stud Kit
Item 6, 1 per reel
Part GRD-012456
aka GR012456
Ships in 3 Days
- 1 $63.55
7 1 GRD-017230 N/A - 0 N/A N/A N/A
8 1
GRD-012416 Gleason SPL WRAPPER KIT 5.0W X SM.DIA - 0 $261.75
GRD-012417 Gleason SPL WRAPPER KIT 5.0W X LG.DIA - 0 $272.45
9 1
GRD-012444 Gleason Cable Reel Part
GRD-GRD-012444
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 0.38 to 0.74 Inches
aka GR012444
[NSN 5340-01-342-1000]
Ships in 5 Days
Dated 4/17
(1LB) H 4" L 5" W 4" Box
- 0 $10.20
GRD-012445 Gleason Cable Reel Part
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 0.75 to 1.11 Inches
Part GRD-012445
aka GR012445
Ships in 3 Days
- 0 $12.20
GRD-012446 Gleason Cable Reel Part
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 1.25 to 1.50 Inches
Part GRD-012446
aka GR012446
Ships in 3 Days
- 0 $12.75
10 1
GRD-012459 N/A - 0 N/A N/A N/A
GRD-012460 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.50 to 0.62 Inches
Part GRD-012460
aka GR012460
Ships in 3 Days
(1LB)
- 0 $94.55
GRD-012461 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.62 to 0.75 Inches
Part GRD-012461
aka GR012461
Ships in 3 Days
(1LB)
- 1 $98.05
GRD-012462 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.75 to 0.88 Inches
Part GRD-012462
aka GR012462
Ships in 3 Days
(1LB)
- 0 $136.85
GRD-012463 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.88 to 1.00 Inches
Part GRD-012463
aka GR012463
Ships in 3 Days
(1LB)
- 0 $144.25
GRD-012464 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.00 to 1.12 Inches
Part GRD-012464
aka GR012464
Ships in 3 Days
(1LB)
- 0 $147.85
GRD-012465 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.12 to 1.25 Inches
Part GRD-012465
aka GR012465
Ships in 3 Days
(1LB)
- 0 $153.20
GRD-012466 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.25 to 1.38 Inches
Part GRD-012466
aka GR012466
Ships in 3 Days
(1LB)
- 1 $170.30
GRD-012467 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.38 to 1.50 Inches
Part GRD-012467
aka GR012467
Ships in 3 Days
(1LB)
- 0 $258.75
11 A/R
GRD-017048 Gleason Spring. Main Spring Kit
75 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
[NSN 5360-01-224-2307]
- 0 $923.85
GRD-017047 Gleason Spring. Main Spring Kit
75 Series, Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
- 0 $923.85
GRD-017050 Gleason Spring. Main Spring Kit
Part GRD-017050
80 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket
(50LBS) H 4" L 10" W 10" Box
[NSN 6105-01-189-3576]
- 0 $1,014.05
GRD-017049 Gleason Spring. Main Spring Kit
Part GRD-017049
80 Series Main Spring
For a "Standard Rotation" Cable Reel
Containerized Safety Spring Assembly
Includes:
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
[NSN 5360-01-148-5893]
(50LBS) H 4" L 10" W 10" Box
- 0 $1,014.05
GRD-017052 Gleason Spring
Part GRD-017052
Main Spring Kit
100 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
aka GR017052
[Amazon] Dated 3/17
(65LBS) H 4" L 13" W 13" Box
- 0 $1,397.55
GRD-017051 Gleason Spring
Main Spring Kit
Part GRD-017051
100 Series
Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
aka GR017051
Part GRD-017051
[NSN 5360-01-297-1022]
[Amazon]
(65LBS) H 4" L 13" W 13" Box
27 $1,397.55
12 A/R
GRD-012426 Gleason Hubbell Cable Reel Part
Pawl Kit
For 62, 75 or 80 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
Part GRD-012426
aka GR012426
[NSN 3040-01-223-0631]
Ships in 3 Days
(1LB)
- 2 $54.80
GRD-012427 Gleason Pawl Kit for a 100 Series Spring
[NSN 3040-01-316-6511]
- 0 $55.65
13 1
GRD-017190 Gleason Hubbell Cable Reel Part
Tension Wrench
For 35, 60, 62, & 75 Series Main Springs
Item 13, 1 per reel
Part GRD-017190
aka GR017190
[NSN 3895-01-200-9414]
Ships in 3 Days
(5LB) Dated 3/17
- 1 $90.55
GRD-017191 Gleason Spring Wrench for 100 Series Springs 4/14 - 0 $88.45
14 1
GRD-03280501 N/A - 0 N/A N/A N/A
GRD-03280401 N/A - 0 N/A N/A N/A
15 A/R
GRD-017054 Gleason Hubbell Cable Reel Part
Extension Bolt Kit for Spring Motors
For 80 Series Main Springs
Includes 4 Bolts
3 Inches Long
Part GRD-017054
aka GR017054
(1LB) H 4" L 6" W 4" Box
- 2 $37.35
GRD-017055 Gleason Bolt Kit
Part GRD-017055
Stud Bolt Extension Kit
For Spring Motors
For 100 Series Main Springs
Includes 4 Bolts
4 Inches Long
aka GR017055
[NSN 5307-01-341-3562]
(1LBS) H 4" L 6" W 4" Box
- 4 $41.35
16 A/R GRD-016182 N/A - 0 N/A N/A N/A
17 A/R GRD-021291 N/A - 0 N/A N/A N/A
18 A/R GRD-100959 Gleason Part
Hex NUT 0.500-13
Part GRD-100959
aka GR100959
[NSN 5310-01-341-2107]
(1LB)
- 0 $5.20
19 A/R GRD-101211 Gleason Part
Flat Washer 1/2 Inch
Part GRD-101211
aka GR101211
(1LB)
- 0 $3.90
20 A/R GRD-P06-03 Gleason Part
Lock Nut
Part GRD-P06-03
aka GRP06-03
[NSN 5310-01-066-4059]
(1LB)
- 0 $5.20
21 A/R
GRD-021762 Gleason Hub Lock Pin Kit
GRD-021762
For 100 Series Main Springs
2 pieces
aka GR021762 Date 3/17
(1LB) H 4" L 5" W 4" Box
- 0 $11.30
GRD-021761 Gleason Hub Lock Pin Kit for 80 Series Main Springs. 2 pieces (<1LB) - 0 $5.80
22 1
GRD-012285 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 23
(8LBS) H 5.00" L 10.00" W 5.00"
[Amazon]
1 $1,086.05
GRD-012286 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 33
(9LBS) H 5.00" L 10.00" W 5.00"
[Amazon]
1 $1,151.85
GRD-012287 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 43
Part GRD-012287
aka GR012287
[Amazon]
[NSN 5977-01-311-2203]
(10LBS) H 5" L 10" W 5" Box
- 1 $1,224.45
GRD-012288 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 63
Part GRD-012288
aka GR012288
[Amazon]
[NSN 5977-01-186-6639]
(10LBS) H 5" L 12" W 5" Box
- 0 $1,421.75
GRD-012289 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 83
Part GRD-012289
aka GR012289
[Amazon]
[NSN 5977-01-265-5103]
(10LBS) H 5" L 12" W 5" Box
0 $1,619.40
GRD-012290 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
10 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 103
Part GRD-012290
aka GR012290
[Amazon]
[NSN 5977-01-252-6406]
(12LBS) H 5" L 14" W 5" Box
- 0 $1,842.85
GRD-012291 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
12 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 123
Part GRD-012291
aka GR012291
(14LBS) H 5" L 16" W 5" Box
- 0 $2,066.70
GRD-012292 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
14 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 143
Part GRD-012292
aka GR012292
(16LBS) H 5" L 18" W 5" Box
- 0 $2,245.70
GRD-012293 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
16 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 163
Part GRD-012293
aka GR012293
(18LBS) H 5" L 20" W 5" Box
- 0 $2,566.50
GRD-012294 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
20 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 203
Part GRD-012294
aka GR012294
[NSN 5977-01-362-0979]
(20LBS) H 5" L 22" W 5" Box
- 0 $3,336.30
GRD-012295 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
24 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 243
Part GRD-012294
aka GR012294
[NSN 5977-01-371-8300]
(22LBS) H 5" L 24" W 5" Box
- 0 $3,747.20
GRD-012296 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
30 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 303
Part GRD-012296
aka GR012296
[NSN 5977-01-181-3136
(24LBS) H 5" L 26" W 5" Box
- 0 $4,383.00
GRD-012297 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
36 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 363
Part GRD-012297
aka GR012297
(26LBS) H 5" L 28" W 5" Box
- 0 $5,165.70
GRD-012298 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 27
Part GRD-012298
aka GR012298
(12LBS) H 6" L 8" W 6" Box
[Amazon]
1 $1,125.85
GRD-012299 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 37
Part GRD-012299
aka GR012299
(13LBS) H 6" L 10" W 6" Box
[Amazon]
1 $1,218.05
GRD-012300 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
Part GRD-012300
aka GR012300
[NSN 5977-01-317-4238]
[Amazon]
(10LBS) H 5" L 10" W 5" Box
0 $1,290.30
GRD-012376 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
Part GRD-012376
aka GR012376
[Amazon]
[NSN 5977-01-317-4238]
(10LBS) H 5" L 10" W 5" Box
- 0 $1,461.30
GRD-012377 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#87
Part GRD-012377
aka GR012377
[Amazon]
(10LBS) H 5" L 10" W 5" Box
- 0 $1,567.00
GRD-037194 Gleason Slip Ring Assembly
A Completely Self Contained Assembly
125 Amps Continuous Duty
2 Conductor / Circuits
600 Volts Maximum
2 Inch Bore Diameter
aka # 212, 012301
[Amazon]
(7LBS) H 6" L 8" W 6" Box
0 $1,946.25
GRD-037294 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
125 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#312
Part GRD-037294
aka GR037294
(10LBS) H 6" L 10" W 6" Box
- 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
125 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#412
Part GRD-037295
aka GR037295
(10LBS) H 6" L 10" W 6" Box
[Amazon]
0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#220
Part GRD-012304
aka GR012304
(10LBS) H 6" L 10" W 6" Box
[Amazon]
1 $1,757.10
GRD-012381 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#320
Part GRD-012381
aka GR012381
(12LBS) H 6" L 10" W 6" Box
- 0 $2,119.45
GRD-012382 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#420
Part GRD-012382
aka GR012382
aka 090065
[Amazon] Dated 4/17
(14LBS) H 6" L 12" W 6" Box
0 $2,573.75
GRD-012383 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#620
Part GRD-012383
aka GR012383
[Amazon]
(16LBS) H 6" L 14" W 6" Box
- 0 $3,382.20
GRD-012384 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#820
Part GRD-012384
aka GR012384
(18LBS) H 6" L 16" W 6" Box
- 0 $4,240.70
23 A/R
GRD-012440 Gleason Brush Kit
GRD-012440
Includes:
4, Brushes
4, Brush Fingers / Springs & Instructions
For a 3 or 4 conductors 35 AMP Slip Ring
aka GR012440
[NSN 5977-01-182-7784]
Dated 4/17
(2LBS) H 4" L 8" W 4" Box"
- 0 $268.95
GRD-012441 Gleason Brush Kit
Part GRD-012441
For a 75 Amp Slip Ring Assembly
Includes:
4 Brushes
4, Spring Fingers & Instructions
aka GR012441
[NSN 5977-01-317-4284]
[Amazon]
(2LBS) H 4" L 8" W 4" Box"
7 $531.05
GRD-012443 Gleason Brush Kit
Part GRD-012443
For a 200 Amp Slip Ring Assembly
Includes:
4 Brushes / 2 Brushes per Ring
Spring Fingers & Instructions
Enough brushes & spring fingers for a 2 conductor slip ring assembly
aka GR012443
Dated 4/17
Ships in 5 days OS
(2LBS) H 4" L 8" W 4" Box
- 0 $568.75
24 1
GRD-012409 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 8 Inches to Cover the Slip Ring
Part GRD-012409
aka GR012409
Ships in 5 Days
(10LBS) H 6" L 12" W 6" Box
- 0 $473.00
GRD-012410 Gleason Cable Reel Part
Slip Ring Cover Kit
Part GRD-012410
Extends 10.5 Inches to Cover the Slip Ring
aka GR012410
(10LBS) H 6" L 12" W 6" Box 3/17
[Amazon]
0 $483.03
GRD-012411 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 13 Inches to Cover the Slip Ring
Part GRD-012411
aka GR012411
Ships in 5 Days
(12LBS) H 6" L 14" W 6" Box
- 0 $592.85
GRD-012412 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 15.5 Inches to Cover the Slip Ring
Part GRD-012412
aka GR012412
Ships in 5 Days
(12LBS) H 6" L 17" W 6" Box
- 0 $610.30
GRD-012413 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 20.5 Inches to Cover the Slip Ring
Part GRD-012413
aka GR012413
Ships in 5 Days
(12LBS) H 6" L 22" W 6" Box
- 0 $695.35
GRD-012414 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 28.5 Inches to Cover the Slip Ring
Part GRD-012414
aka GR012414
Ships in 5 Days
(12LBS) H 6" L 30" W 6" Box
- 0 $955.50
25 1 GRD-012458 Gleason Cable Reel Part
Slip Ring Cover Seal
Part GRD-012458
aka GR012458
Ships in 5 Days
(1LB) H 4" L 5" W 4" Box
- 3 $48.90
26 1 GRD-045716 N/A - 0 N/A N/A N/A
27 1 GRD-016525 Gleason Gear Detensioning Kit SM Reel
[NSN 5340-01-478-5242]
- 0 $500.90
28 1
GRD-045717 N/A - 0 N/A N/A N/A
GRD-045718 Gleason GEAR KIT,B-RATIO,FOR DETENSION - 0 $1,722.35
GRD-045719 N/A - 0 N/A N/A N/A
GRD-045720 Gleason GEAR KIT,D-RATIO,FOR DETENSION - 0 $1,722.35
GRD-045721 N/A - 0 N/A N/A N/A
GRD-045722 N/A - 0 N/A N/A N/A
GRD-045723 N/A - 0 N/A N/A N/A
GRD-045724 N/A - 0 N/A N/A N/A
GRD-045725 N/A - 0 N/A N/A N/A
GRD-045726 N/A - 0 N/A N/A N/A
GRD-045727 N/A - 0 N/A N/A N/A
29 1 GRD-118320 Gleason RETAINING RING 5103-125
[NSN 5325-01-341-2174]
- 0 $3.85
30 2 GRD-012400 Gleason Bearing Kit
Gearbox
Part GRD-012400
aka GR012400
- 0 $159.50
31 1
GRD-012215 Gleason SPRING SHAFT-GEARED 751 - 0 $532.45
GRD-01221501 Gleason SPRING SHAFT-GEARED 751 REV - 0 $532.45
GRD-012216 Gleason SPRING SHAFT-GEARED 802 - 0 $334.80
GRD-01221601 Gleason SPRING SHAFT-GEARED 802 REV - 0 $602.00
GRD-012217 Gleason SPRING SHAFT-GEARED 1001 - 0 $543.15
GRD-01221701 Gleason SPRING SHAFT-GEARED 1001 REV - 0 $543.15
GRD-012218 Gleason Stub Shaft
Part GRD-012218
For a 1002 Gear Drive Cable Reel
Standard Rotation
aka GR012218
Dated 3/17
(4LB) H 4" L 8" W 4" Box
- 0 $635.35
GRD-01221801 Gleason SPRING SHAFT-GEARED 1002 REV
[NSN 5360-01-228-7476]
- 0 $612.40
GRD-014500 Gleason Shaft. Main Spring Stack Main Shaft for a 3 main spring reel, standard rotation - 0 $583.50
GRD-01450001 Gleason SHAFT-SPRING,REV.ROT.(803GRD.) - 0 $583.50
GRD-014691 Gleason SPRING SHAFT GEAR DRIVEN 804 - 0 $657.85
GRD-01469101 Gleason SPRING SHAFT GEARED 804 REV - 0 $657.85
32 1 GRD-045728 N/A - 0 N/A N/A N/A
33 1 GRD-045729 N/A - 0 N/A N/A N/A
34 1 GRD-045747 N/A - 0 N/A N/A N/A
Gleason "S-21-Gear" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Click to visit our Amazon store

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Frequently Sold
Replacement Parts

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
PowerTrak Replacement Parts


Gleason
PowerTrak Replacement Parts


  • PowerTrak Replacement Parts
Reels Replacement Parts


Gleason
Reels Replacement Parts


  • Reels Replacement Parts
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
