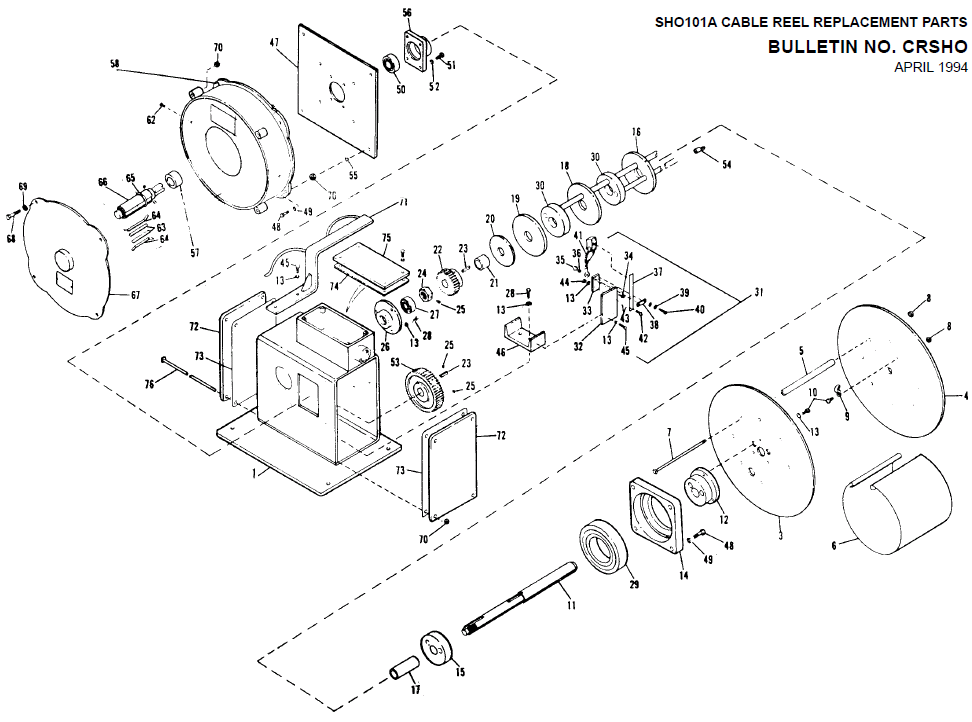

Gleason Series SHO-101A Special Magnet Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-005957 Gleason Frame
Sub Assembly For 005956
Part GRD-005957
aka GR005957
- 0 $1,646.20
2 1 GRD-005960 Gleason Frame
Sub Assembly For 005960
Part GRD-005960
aka GR005960
- 0 $6,190.30
3 1 GRD-G22-20 Gleason Drum Disc, Inner for 005960 - 1 $365.85
4 1 GRD-G21-33 Gleason Drum Disc, Outer for 005960 - 1 $339.70
5 8 GRD-G18-09 Gleason Pipe Spacer for 005960 - 8 $21.50
6 1 GRD-G23-18 Gleason Drum Cover for 005960
[NSN 2240-00-367-7593]
- 0 $81.20
7 8 GRD-106098 Gleason Hex Head CS .25-20 X 9.0 - 0 $23.15
8 9 GRD-101263 Gleason Nur ESNA .25-20 z.p. l.th. ja - 0 $5.20
9 1 GRD-106101 Gleason Pipe Strap .75 Nom T&B 1277 - 1 $8.70
10 4 GRD-103723 Gleason Hex Head C S .25-20 X .7 - 0 $8.05
11 1 GRD-G01-34 Gleason Drum Shaft for 005960 - 0 $600.75
12 1 GRD-G78-01 Gleason Bearing Hub for 005960 - 0 $490.55
13 17 GRD-101090 Gleason WASHER LOCK .250 - 0 $4.40
14 1 GRD-G02-16 Gleason Bearing Holder for 5960 - 0 $452.75
15 1 GRD-G18-10 Gleason Spacer for 005960 - 0 $117.00
16 1 GRD-G16-06 Gleason Barrier # 2 for 005960 - 0 $194.00
17 1 GRD-G17-25 Gleason Tube for 005960 - 1 $58.45
18 1 GRD-G16-07 Gleason Barrier # 1 for 005960 - 0 $194.00
19 1 GRD-G16-08 Gleason Barrier for 005960 - 0 N/A N/A N/A
20 1 GRD-G37-03 Gleason Washer for 005960 - 0 $23.35
21 1 GRD-G47-02 N/A - 0 N/A N/A N/A
22 1 GRD-101924 Gleason Gear 10P 30T 1.0 Bore Cat G69-05 - 1 $621.55
23 2 GRD-G67-01 Gleason Key .25 X .25 X 1.3/8 with RD EDG - 0 $15.45
24 1 GRD-104405 Gleason Lock Nut - 0 $5.65
25 5 GRD-101269 Gleason Allen Head Setscrew .25-20 X .38
[NSN 5305-01-558-9690]
- 0 $5.60
26 1 GRD-G02-17 Gleason BEARING HOLDER FOR 005960 - 0 $190.80
27 1 GRD-G36-05 Gleason Ball Bearing, .75 I.D. - 0 $107.10
28 3 GRD-105096 Gleason HEX HD CS .25-20 X .625 - 0 $7.85
29 1 GRD-G36-14 Gleason Bearing Ball 3.346 I.D. - 0 $236.45
30 2 GRD-005967 Gleason Collector Ring & Cable Assembly
- 2 $343.65
31 2 GRD-005959 Gleason Brush Holder Sub Assembly for 005956 - 4 $299.90
32 1 GRD-G11-07 Gleason INSULATOR PLATE FOR 005959 - 0 $154.40
33 1 GRD-G12-02 Gleason CONNECTOR PLATE FOR 005959 - 0 $26.10
34 1 GRD-101228 Gleason FL CSHD MS BRSS 8-32 X .625 - 0 $5.20
35 1 GRD-101218 Gleason NUT HEX BR #8-32 - 0 $3.90
36 1 GRD-101086 N/A - 0 N/A N/A N/A
37 1 GRD-G13-02 Gleason Finger for a 005959 for a SHO101A - 0 $17.85
38 1 GRD-G14-02 Gleason Strap for 005959 for a SHO101A - 0 $9.85
39 2 GRD-101085 Gleason Lock Washer # 6 - 0 $3.90
40 2 GRD-101215 Gleason Screw Round Head Brass 6-32 X 0.625" - 0 $4.40
41 1 GRD-G15-03 Gleason Brush Assembly
Part GRD-G15-03
75 AMP
For Older Style Slip Ring Assemblies
aka GRG15-03
Mold G15-03A
4/14
- 0 $102.95
42 1 GRD-101303 Gleason RD HD MS BRSS .25-20 X 1.000 - 0 $4.40
43 2 GRD-101262 Gleason WASHER FLAT .250 BRASS - 0 $4.40
44 1 GRD-101264 Gleason NUT FIN HEX .250-20 BRASS - 0 $5.60
45 10 GRD-101281 Gleason HEX HD CS .25-20 X .625 - 0 $3.90
46 1 GRD-G10-15 Gleason CHANNEL FOR 005957 - 0 $70.70
47 1 GRD-G85-03 N/A - 0 N/A N/A N/A
48 13 GRD-101062 Gleason Hex Head Bolt
GRD-101062
HD CS, .037"-16 X 1.00"
Dated 3/17
- 0 $3.60
49 12 GRD-101093 Gleason WASHER LOCK .375 - 0 $4.40
50 2 GRD-G36-03 Gleason Bearing - Ball .9843 ID D-98246
[NSN 3110-00-156-3545]
- 2 $130.35
51 4 GRD-101075 Gleason HEX HD CS .31-18 X 1.000 - 0 $3.90
52 4 GRD-101091 Gleason WASHER LOCK .312
[NSN 5310-01-216-5697]
- 0 $4.40
53 1 GRD-101932 Gleason Gear 10P 50T 15/16 Bore S Cat G69-06 - 1 $781.50
54 2 GRD-101668 Gleason TERMINAL STA KON F4-14 - 0 $7.85
55 4 GRD-101211 Gleason Part
Flat Washer 1/2 Inch
Part GRD-101211
aka GR101211
(1LB)
- 0 $3.90
56 1 GRD-G02-08 Gleason BEARING HOLDER - 0 $368.70
57 1 GRD-G77-01 Gleason Sleeve - 0 $129.85
58 1 GRD-036138 Gleason Spring. Main Spring Motor Assembly for a model WB or SHO Cable Reel, 100 Series Spring, Standard Rotation 4/12 - 1 $2,272.05
62 1 GRD-101038 Gleason Machine Screw - 0 $4.40
63 3 GRD-G30-05 Gleason Pin
Part GRD-G30-05
Pawl Pin for Main Springs
& a Roller Guide Pin
3 Inches Long
aka GRG30-05
Cat # 98252
Dated 3/17
(1LB) H 4" L 5" W 4" Box
- 7 $18.90
64 2 GRD-G31-05 Gleason Spring
Part GRD-G31-05
Pawl / Leaf Spring
For Main spring
3.00 Inch
aka GRG27-42
Cat # 98253
[NSN 4310-00-303-0757]
(1LB) H 4" L 5" W 4" Box
- 9 $16.20
65 1 GRD-G34-02 Gleason Snap Ring, D-98254
[NSN 5325-00-309-5446]
- 0 $5.20
66 1 GRD-G01-35 Gleason Spring Shaft - 0 $548.05
67 1 GRD-G05-08A Gleason SPRING HOUSING ASSY - 0 $1,576.10
68 4 GRD-101357 Gleason HEX HD CS .37-16 X 2.000 - 0 $8.05
69 4 GRD-101210 Gleason WASHER FLAT .375 - 0 $5.20
70 9 GRD-101346 Gleason Lock Nut
Part GRD-101346
ESNA Lock Nut 3/8-16
Dated 3/17
- 0 $5.40
71 1 GRD-005962 Gleason Cable Guide
For a 005956
- 0 $276.10
72 2 GRD-G05-12 Gleason Collector Cover for 005956 - 0 $273.75
73 2 GRD-G51-01 Gleason Gasket for 005956 - 0 $34.25
74 1 GRD-G51-02 Gleason Gasket for 005956 - 0 $34.25
75 1 GRD-G05-13 Gleason Junction Box Cover for 00595 - 0 N/A N/A N/A
76 1 GRD-106099 Gleason HEX HD CS .37-16 X 13.00 - 0 $58.45
Gleason "SHO-101A" Parts List (PDF)
