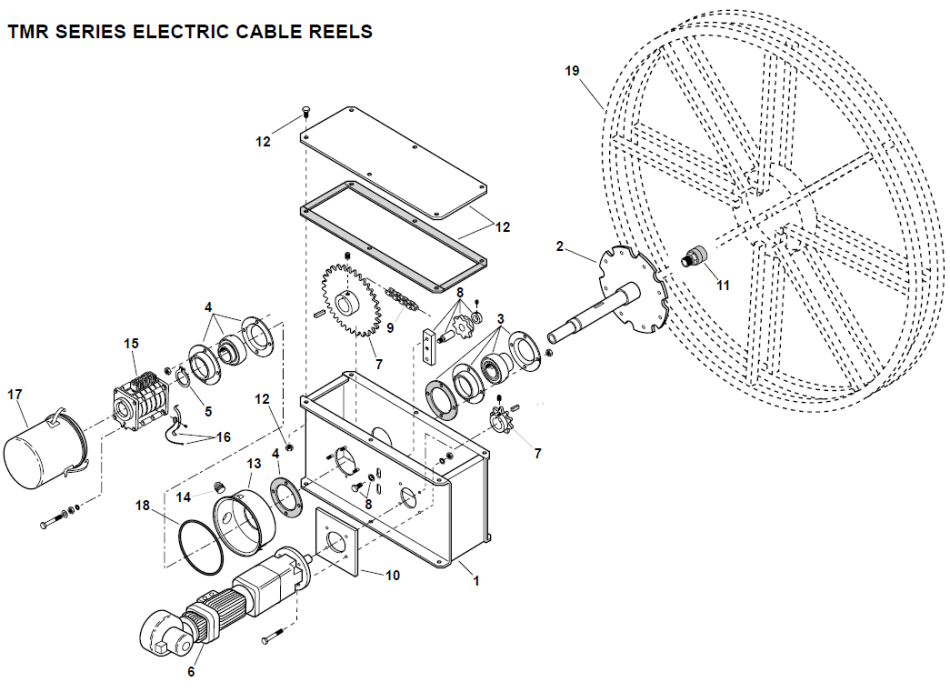

Gleason TMR Series Electric Cable Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-021372 N/A - 0 N/A N/A N/A
2 1 GRD-020784 Gleason Collector Shaft Assembly on a SHO Reel - 0 $660.00
3 1 GRD-021752 Gleason Bearing Kit, 2 Inch Bore, includes 2 Housings and a Gasket - 3 $135.25
4 1 GRD-012402 Gleason Cable Reel Part S14 Bearing Kit 2 Inch Bore Includes 2 Housings & Gasket Item 4, 1 per reel Part GRD-012402 aka GR012402 [NSN 3120-01-234-0350] Ships in 3 Days - 1 $140.30
5 1 GRD-105060 Gleason TRUARC RING CAT # 5100-200 - 0 $5.70
6 1
GRD-021407 Gleason Motor. Demag Torque Motor Reducer & Blower Fan, Item 6 for Gleason Reel TMR-47-18-7-36-AD2 which Retrieves 240 Feet of 6 AWG / 4 Conductor Type "W" Electric Cable at 150 FPM, 0.75 AMP., Sr # GU5796-03, 60 Days 12/14 - 1 $6,243.00
GRD-021408 N/A - 1 N/A N/A N/A
GRD-021409 N/A - 1 N/A N/A N/A
GRD-021410 N/A - 1 N/A N/A N/A
GRD-021411 N/A - 1 N/A N/A N/A
GRD-021412 N/A - 1 N/A N/A N/A
7 1
GRD-021771 N/A - 0 N/A N/A N/A
GRD-021772 N/A - 0 N/A N/A N/A
GRD-021773 N/A - 0 N/A N/A N/A
GRD-021774 N/A - 0 N/A N/A N/A
GRD-021775 N/A - 0 N/A N/A N/A
8 1 GRD-021759 Gleason IDLER KIT - 0 $763.15
9 1 GRD-021760 N/A - 0 N/A N/A N/A
10 1 GRD-021006 N/A - 0 N/A N/A N/A
11 1
GRD-012459 N/A - 0 N/A N/A N/A
GRD-012460 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.50 to 0.62 Inches Part GRD-012460 aka GR012460 Ships in 3 Days (1LB) - 0 $94.55
GRD-012461 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.62 to 0.75 Inches Part GRD-012461 aka GR012461 Ships in 3 Days (1LB) - 1 $98.05
GRD-012462 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.75 to 0.88 Inches Part GRD-012462 aka GR012462 Ships in 3 Days (1LB) - 0 $136.85
GRD-012463 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.88 to 1.00 Inches Part GRD-012463 aka GR012463 Ships in 3 Days (1LB) - 0 $144.25
GRD-012464 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.00 to 1.12 Inches Part GRD-012464 aka GR012464 Ships in 3 Days (1LB) - 0 $147.85
GRD-012465 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.12 to 1.25 Inches Part GRD-012465 aka GR012465 Ships in 3 Days (1LB) - 0 $153.20
GRD-012466 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.25 to 1.38 Inches Part GRD-012466 aka GR012466 Ships in 3 Days (1LB) - 1 $170.30
GRD-012467 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.38 to 1.50 Inches Part GRD-012467 aka GR012467 Ships in 3 Days (1LB) - 0 $258.75
GRD-021764 N/A - 0 N/A N/A N/A
GRD-021765 N/A - 0 N/A N/A N/A
12 1 GRD-021763 Gleason Chain Cover Kit on an SHO Reel. Includes Cover & Gasket - 0 $46.70
13 1 GRD-016337 N/A - 0 N/A N/A N/A
14 1 GRD-101652 Gleason PLUG SQ HD 3/4-14 C-FE/STL GAL - 0 $31.70
15 1
GRD-012285 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 23 (8LBS) H 5.00" L 10.00" W 5.00" [Amazon] 1 $1,086.05
GRD-012286 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 33 (9LBS) H 5.00" L 10.00" W 5.00" [Amazon] 1 $1,151.85
GRD-012287 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 43 Part GRD-012287 aka GR012287 [Amazon] [NSN 5977-01-311-2203] (10LBS) H 5" L 10" W 5" Box - 1 $1,224.45
GRD-012288 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 63 Part GRD-012288 aka GR012288 [Amazon] [NSN 5977-01-186-6639] (10LBS) H 5" L 12" W 5" Box - 0 $1,421.75
GRD-012289 Gleason Slip Ring Assembly 83 Part GRD-GR012289 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 83 Part GRD-012289 aka GR012289 [Amazon] [NSN 5977-01-265-5103] (10LBS) H 5" L 12" W 5" Box 0 $2,100.19
GRD-012290 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 10 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 103 Part GRD-012290 aka GR012290 [Amazon] [NSN 5977-01-252-6406] (12LBS) H 5" L 14" W 5" Box - 0 $1,842.85
GRD-012291 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 12 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 123 Part GRD-012291 aka GR012291 (14LBS) H 5" L 16" W 5" Box - 0 $2,066.70
GRD-012292 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 14 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 143 Part GRD-012292 aka GR012292 (16LBS) H 5" L 18" W 5" Box - 0 $2,245.70
GRD-012293 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 16 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 163 Part GRD-012293 aka GR012293 (18LBS) H 5" L 20" W 5" Box - 0 $2,566.50
GRD-012294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 20 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 203 Part GRD-012294 aka GR012294 [NSN 5977-01-362-0979] (20LBS) H 5" L 22" W 5" Box - 0 $3,336.30
GRD-012295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 24 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 243 Part GRD-012294 aka GR012294 [NSN 5977-01-371-8300] (22LBS) H 5" L 24" W 5" Box - 0 $3,747.20
GRD-012296 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 30 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 303 Part GRD-012296 aka GR012296 [NSN 5977-01-181-3136 (24LBS) H 5" L 26" W 5" Box - 0 $4,383.00
GRD-012297 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 36 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 363 Part GRD-012297 aka GR012297 (26LBS) H 5" L 28" W 5" Box - 0 $5,165.70
GRD-012298 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 27 Part GRD-012298 aka GR012298 (12LBS) H 6" L 8" W 6" Box [Amazon] 1 $1,125.85
GRD-012299 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 37 Part GRD-012299 aka GR012299 (13LBS) H 6" L 10" W 6" Box [Amazon] 1 $1,218.05
GRD-012300 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 Part GRD-012300 aka GR012300 [NSN 5977-01-317-4238] [Amazon] (10LBS) H 5" L 10" W 5" Box 0 $1,290.30
GRD-012376 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 Part GRD-012376 aka GR012376 [Amazon] [NSN 5977-01-317-4238] (10LBS) H 5" L 10" W 5" Box - 0 $1,461.30
GRD-012377 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #87 Part GRD-012377 aka GR012377 [Amazon] (10LBS) H 5" L 10" W 5" Box - 0 $1,567.00
GRD-037194 Gleason Slip Ring Assembly Part GRD-GR037194 A Completely Self Contained Assembly 125 Amps Continuous Duty 2 Conductor / Circuits 600 Volts Maximum 2 Inch Bore Diameter aka # 212, 012301 037194 [Amazon] Dated 1/18 (7LBS) H 6" L 8" W 6" Box 1 $2,105.05
GRD-037294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #312 Part GRD-037294 aka GR037294 (10LBS) H 6" L 10" W 6" Box - 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #412 Part GRD-037295 aka GR037295 (10LBS) H 6" L 10" W 6" Box [Amazon] 0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #220 Part GRD-012304 aka GR012304 (10LBS) H 6" L 10" W 6" Box [Amazon] 1 $1,757.10
GRD-012381 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #320 Part GRD-012381 aka GR012381 (12LBS) H 6" L 10" W 6" Box - 0 $2,119.45
GRD-012382 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #420 Part GRD-012382 aka GR012382 aka 090065 [Amazon] Dated 4/17 (14LBS) H 6" L 12" W 6" Box 0 $2,573.75
GRD-012383 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #620 Part GRD-012383 aka GR012383 [Amazon] (16LBS) H 6" L 14" W 6" Box - 0 $3,382.20
GRD-012384 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #820 Part GRD-012384 aka GR012384 (18LBS) H 6" L 16" W 6" Box - 0 $4,240.70
16 A/R
GRD-012440 Gleason Brush Kit GRD-012440 Includes: 4, Brushes 4, Brush Fingers / Springs & Instructions For a 3 or 4 conductors 35 AMP Slip Ring aka GR012440 [NSN 5977-01-182-7784] Dated 4/17 (2LBS) H 4" L 8" W 4" Box" - 0 $268.95
GRD-012441 Gleason Brush Kit Part GRD-012441 For a 75 Amp Slip Ring Assembly Includes: 4 Brushes 4, Spring Fingers & Instructions aka GR012441 [NSN 5977-01-317-4284] [Amazon] (2LBS) H 4" L 8" W 4" Box" 7 $531.05
GRD-012443 Gleason Brush Kit Part GRD-012443 For a 200 Amp Slip Ring Assembly Includes: 4 Brushes / 2 Brushes per Ring Spring Fingers & Instructions Enough brushes & spring fingers for a 2 conductor slip ring assembly aka GR012443 Dated 4/17 Ships in 5 days OS (2LBS) H 4" L 8" W 4" Box - 0 $568.75
17 1
GRD-012409 Gleason Cable Reel Part Slip Ring Cover Kit Extends 8 Inches to Cover the Slip Ring Part GRD-012409 aka GR012409 Ships in 5 Days (10LBS) H 6" L 12" W 6" Box - 0 $473.00
GRD-012410 Gleason Cable Reel Part Slip Ring Cover Kit Part GRD-012410 Extends 10.5 Inches to Cover the Slip Ring aka GR012410 (10LBS) H 6" L 12" W 6" Box 3/17 [Amazon] 0 $483.03
GRD-012411 Gleason Cable Reel Part Slip Ring Cover Kit Extends 13 Inches to Cover the Slip Ring Part GRD-012411 aka GR012411 Ships in 5 Days (12LBS) H 6" L 14" W 6" Box - 0 $592.85
GRD-012412 Gleason Cable Reel Part Slip Ring Cover Kit Extends 15.5 Inches to Cover the Slip Ring Part GRD-012412 aka GR012412 Ships in 5 Days (12LBS) H 6" L 17" W 6" Box - 0 $610.30
GRD-012413 Gleason Cable Reel Part Slip Ring Cover Kit Extends 20.5 Inches to Cover the Slip Ring Part GRD-012413 aka GR012413 Ships in 5 Days (12LBS) H 6" L 22" W 6" Box - 0 $695.35
GRD-012414 Gleason Cable Reel Part Slip Ring Cover Kit Extends 28.5 Inches to Cover the Slip Ring Part GRD-012414 aka GR012414 Ships in 5 Days (12LBS) H 6" L 30" W 6" Box - 0 $955.50
18 1 GRD-012458 Gleason Cable Reel Part Slip Ring Cover Seal Part GRD-012458 aka GR012458 Ships in 5 Days (1LB) H 4" L 5" W 4" Box - 3 $48.90
19 1 - Spool Assembly - 0 N/A N/A N/A
Gleason "TMR" Parts List (PDF)
