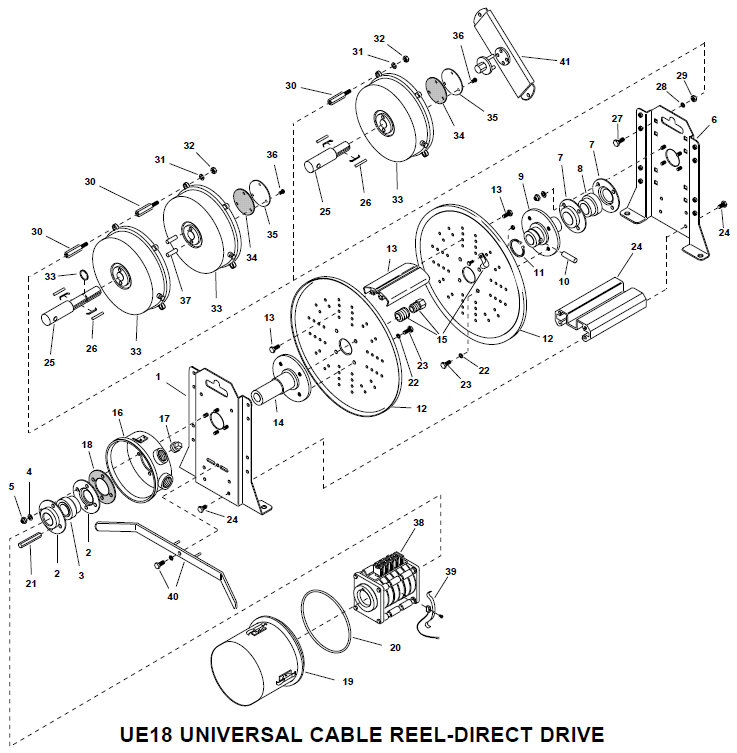

Gleason UE-18 Universal Cable Direct Drive Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-042015 Gleason FRAME,SWIV,U18,SAFETY ORANGE - 0 $247.10
2 2 GRD-012140 Gleason HOUSING FOR 2" BORE BEARING - 0 $28.60
3 1 GRD-103837 Gleason BEARING-BALL 2.00 ID
[NSN 3110-01-369-8974]
- 0 $92.55
4 9 GRD-038424 Gleason M8 FLAT WASHER - 0 $0.31
5 8 GRD-028268 N/A - 0 N/A N/A N/A
6 1 GRD-042005 Gleason FRAME,DRIVE,U18,SAFETY ORANGE - 0 $233.95
7 2 GRD-119114 N/A - 0 N/A N/A N/A
8 1 GRD-103823 N/A - 0 N/A N/A N/A
9 1 GRD-042030 N/A - 0 N/A N/A N/A
10 1 GRD-012137 Gleason STUB SHAFT DRIVE PIN
[NSN 5315-01-341-5375]
- 0 $3.10
11 1 GRD-118322 N/A - 0 N/A N/A N/A
12 2 GRD-042025 Gleason SPOOL DISC,U18,SAFETY ORANGE - 0 $86.75
13 1
GRD-04271001 N/A - 0 N/A N/A N/A
GRD-04271002 N/A - 0 N/A N/A N/A
GRD-04271003 N/A - 0 N/A N/A N/A
GRD-04271004 N/A - 0 N/A N/A N/A
GRD-04271005 N/A - 0 N/A N/A N/A
GRD-04271006 N/A - 0 N/A N/A N/A
GRD-04271007 N/A - 0 N/A N/A N/A
GRD-04271008 N/A - 0 N/A N/A N/A
GRD-04271009 N/A - 0 N/A N/A N/A
GRD-04271010 N/A - 0 N/A N/A N/A
GRD-04271011 N/A - 0 N/A N/A N/A
GRD-04271012 N/A - 0 N/A N/A N/A
GRD-04271013 N/A - 0 N/A N/A N/A
GRD-04271014 N/A - 0 N/A N/A N/A
GRD-04271015 N/A - 0 N/A N/A N/A
14 1 GRD-042068 N/A - 0 N/A N/A N/A
15 1 Consult Factory Cable Clamp/Connector Kit - 0 N/A N/A N/A
16 1 GRD-040784 N/A - 0 N/A N/A N/A
17 1 GRD-101652 Gleason PLUG SQ HD 3/4-14 C-FE/STL GAL - 0 $31.70
18 1 GRD-118220 N/A - 0 N/A N/A N/A
19 1
GRD-012409 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 8 Inches to Cover the Slip Ring
Part GRD-012409
aka GR012409
Ships in 5 Days
(10LBS) H 6" L 12" W 6" Box
- 0 $473.00
GRD-012410 Gleason Cable Reel Part
Slip Ring Cover Kit
Part GRD-012410
Extends 10.5 Inches to Cover the Slip Ring
aka GR012410
(10LBS) H 6" L 12" W 6" Box 3/17
[Amazon]
0 $483.03
GRD-012411 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 13 Inches to Cover the Slip Ring
Part GRD-012411
aka GR012411
Ships in 5 Days
(12LBS) H 6" L 14" W 6" Box
- 0 $592.85
GRD-012412 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 15.5 Inches to Cover the Slip Ring
Part GRD-012412
aka GR012412
Ships in 5 Days
(12LBS) H 6" L 17" W 6" Box
- 0 $610.30
GRD-012413 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 20.5 Inches to Cover the Slip Ring
Part GRD-012413
aka GR012413
Ships in 5 Days
(12LBS) H 6" L 22" W 6" Box
- 0 $695.35
GRD-012414 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 28.5 Inches to Cover the Slip Ring
Part GRD-012414
aka GR012414
Ships in 5 Days
(12LBS) H 6" L 30" W 6" Box
- 0 $955.50
20 1 GRD-012458 Gleason Cable Reel Part
Slip Ring Cover Seal
Part GRD-012458
aka GR012458
Ships in 5 Days
(1LB) H 4" L 5" W 4" Box
- 3 $48.90
21 1 GRD-042067 N/A - 0 N/A N/A N/A
22 4 GRD-028138 N/A - 0 N/A N/A N/A
23 4 GRD-028131 N/A - 0 N/A N/A N/A
24 1
GRD-04272201 N/A - 0 N/A N/A N/A
GRD-04272202 N/A - 0 N/A N/A N/A
GRD-04272203 N/A - 0 N/A N/A N/A
GRD-04272204 N/A - 0 N/A N/A N/A
GRD-04272205 N/A - 0 N/A N/A N/A
25 1
GRD-042152 Gleason SHAFT,SPRING,1002,DIR,STD - 0 $465.60
GRD-042153 Gleason SHAFT,SPRING,1001,DIR,STD - 0 $395.60
GRD-042156 N/A - 0 N/A N/A N/A
GRD-042157 Gleason SHAFT,SPRING,621/801,DIR,STD - 0 $386.20
GRD-042554 Gleason SHAFT,STUB,351,DIR,STD,UREEL - 0 $358.90
GRD-042160 Gleason SHAFT,SPRING,1002,DIR,REV - 0 $46.70
GRD-042161 Gleason SHAFT,SPRING,1001,DIR,REV - 0 $395.60
GRD-042164 Gleason SHAFT,SPRING,622/802,DIR,REV - 0 $449.20
GRD-042165 Gleason SHAFT,SPRING,621/801,DIR,REV - 0 $386.20
GRD-042566 Gleason SHAFT,STUB,351,DIR,REV,UREEL - 0 $358.90
26 A/R
GRD-012425 Gleason Hubbell Cable Reel Part
Pawl Kit
For 35 & 60 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
Part GRD-012425
aka GR012425
Ships in 3 Days
(1LB)
- 0 $52.70
GRD-012426 Gleason Hubbell Cable Reel Part
Pawl Kit
For 62, 75 or 80 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
Part GRD-012426
aka GR012426
[NSN 3040-01-223-0631]
Ships in 3 Days
(1LB)
- 2 $54.80
GRD-012427 Gleason Pawl Kit for a 100 Series Spring
[NSN 3040-01-316-6511]
- 0 $55.65
27 4 GRD-031484 N/A - 0 N/A N/A N/A
28 4 GRD-025942 N/A - 0 N/A N/A N/A
29 4 GRD-025941 N/A - 0 N/A N/A N/A
30 A/R
GRD-042555 Gleason STAND-OFF,#35SPRING,UREEL - 0 $13.25
GRD-042183 N/A - 0 N/A N/A N/A
GRD-042182 Gleason STAND-OFF,SPRING,100 - 0 $17.45
31 4 GRD-029159 N/A - 0 N/A N/A N/A
32 4 GRD-028502 Gleason LOCKNUT-NYLON COLLAR M12X1.75 - 0 $2.10
33 A/R
GRD-042727 Gleason SPRING MOTOR KIT, UREEL, 35, STD. - 0 $729.75
GRD-042725 Gleason SPRING MOTOR KIT,UREEL,62,STD - 0 $1,096.20
GRD-042726 Gleason SPRING MOTOR KIT, UREEL, 75, STD. - 0 $1,164.90
GRD-042724 Gleason SPRING MOTOR KIT, UREEL, 80, STD. - 0 $1,420.65
GRD-042723 Gleason SPRING MOTOR KIT,UREEL,100,STD - 0 $1,745.10
GRD-042732 N/A - 0 N/A N/A N/A
GRD-042730 N/A - 0 N/A N/A N/A
GRD-042731 Gleason SPRING MOTOR KIT,UREEL,75,REV - 0 $1,164.90
GRD-042729 Gleason SPRING MOTOR KIT,UREEL,80,REV - 0 $1,420.65
GRD-042728 N/A - 0 N/A N/A N/A
34 1 GRD-G51–23 N/A - 0 N/A N/A N/A
35 1 GRD-G27–42 N/A - 0 N/A N/A N/A
36 3 GRD-101220 Gleason RD HD MS SLTD #8-32 X .25 LNG
[NSN 5305-01-341-3544]
- 0 $4.40
37 1
GRD-021762 Gleason Hub Lock Pin Kit
GRD-021762
For 100 Series Main Springs
2 pieces
aka GR021762 Date 3/17
(1LB) H 4" L 5" W 4" Box
- 0 $11.30
GRD-021761 Gleason Hub Lock Pin Kit for 80 Series Main Springs. 2 pieces (<1LB) - 0 $5.80
38 1
GRD-012285 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 23
(8LBS) H 5.00" L 10.00" W 5.00"
[Amazon]
1 $1,086.05
GRD-012286 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 33
(9LBS) H 5.00" L 10.00" W 5.00"
[Amazon]
1 $1,151.85
GRD-012287 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 43
Part GRD-012287
aka GR012287
[Amazon]
[NSN 5977-01-311-2203]
(10LBS) H 5" L 10" W 5" Box
- 1 $1,224.45
GRD-012288 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 63
Part GRD-012288
aka GR012288
[Amazon]
[NSN 5977-01-186-6639]
(10LBS) H 5" L 12" W 5" Box
- 0 $1,421.75
GRD-012289 Gleason Slip Ring Assembly 83
Part GRD-GR012289
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 83
Part GRD-012289
aka GR012289
[Amazon]
[NSN 5977-01-265-5103]
(10LBS) H 5" L 12" W 5" Box
0 $2,100.19
GRD-012290 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
10 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 103
Part GRD-012290
aka GR012290
[Amazon]
[NSN 5977-01-252-6406]
(12LBS) H 5" L 14" W 5" Box
- 0 $1,842.85
GRD-012291 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
12 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 123
Part GRD-012291
aka GR012291
(14LBS) H 5" L 16" W 5" Box
- 0 $2,066.70
GRD-012292 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
14 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 143
Part GRD-012292
aka GR012292
(16LBS) H 5" L 18" W 5" Box
- 0 $2,245.70
GRD-012293 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
16 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 163
Part GRD-012293
aka GR012293
(18LBS) H 5" L 20" W 5" Box
- 0 $2,566.50
GRD-012294 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
20 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 203
Part GRD-012294
aka GR012294
[NSN 5977-01-362-0979]
(20LBS) H 5" L 22" W 5" Box
- 0 $3,336.30
GRD-012295 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
24 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 243
Part GRD-012294
aka GR012294
[NSN 5977-01-371-8300]
(22LBS) H 5" L 24" W 5" Box
- 0 $3,747.20
GRD-012296 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
30 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 303
Part GRD-012296
aka GR012296
[NSN 5977-01-181-3136
(24LBS) H 5" L 26" W 5" Box
- 0 $4,383.00
GRD-012297 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
36 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 363
Part GRD-012297
aka GR012297
(26LBS) H 5" L 28" W 5" Box
- 0 $5,165.70
GRD-012298 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 27
Part GRD-012298
aka GR012298
(12LBS) H 6" L 8" W 6" Box
[Amazon]
1 $1,125.85
GRD-012299 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 37
Part GRD-012299
aka GR012299
(13LBS) H 6" L 10" W 6" Box
[Amazon]
1 $1,218.05
GRD-012300 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
Part GRD-012300
aka GR012300
[NSN 5977-01-317-4238]
[Amazon]
(10LBS) H 5" L 10" W 5" Box
0 $1,290.30
GRD-012376 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
Part GRD-012376
aka GR012376
[Amazon]
[NSN 5977-01-317-4238]
(10LBS) H 5" L 10" W 5" Box
- 0 $1,461.30
GRD-037194 Gleason Slip Ring Assembly
Part GRD-037194
A Completely Self Contained Assembly
125 Amps Continuous Duty
2 Conductor / Circuits
600 Volts Maximum
2 Inch Bore Diameter
aka # 212, 012301
[Amazon]
(7LBS) H 6" L 8" W 6" Box
0 $1,946.25
GRD-012377 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#87
Part GRD-012377
aka GR012377
[Amazon]
(10LBS) H 5" L 10" W 5" Box
- 0 $1,567.00
GRD-037294 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
125 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#312
Part GRD-037294
aka GR037294
(10LBS) H 6" L 10" W 6" Box
- 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
125 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#412
Part GRD-037295
aka GR037295
(10LBS) H 6" L 10" W 6" Box
[Amazon]
0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#220
Part GRD-012304
aka GR012304
(10LBS) H 6" L 10" W 6" Box
[Amazon]
1 $1,757.10
GRD-012381 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#320
Part GRD-012381
aka GR012381
(12LBS) H 6" L 10" W 6" Box
- 0 $2,119.45
GRD-012382 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#420
Part GRD-012382
aka GR012382
aka 090065
[Amazon] Dated 4/17
(14LBS) H 6" L 12" W 6" Box
0 $2,573.75
GRD-012383 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#620
Part GRD-012383
aka GR012383
[Amazon]
(16LBS) H 6" L 14" W 6" Box
- 0 $3,382.20
GRD-012384 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#820
Part GRD-012384
aka GR012384
(18LBS) H 6" L 16" W 6" Box
- 0 $4,240.70
39 A/R
GRD-012440 Gleason Brush Kit
GRD-012440
Includes:
4, Brushes
4, Brush Fingers / Springs & Instructions
For a 3 or 4 conductors 35 AMP Slip Ring
aka GR012440
[NSN 5977-01-182-7784]
Dated 4/17
(2LBS) H 4" L 8" W 4" Box"
- 0 $268.95
GRD-012441 Gleason Brush Kit
Part GRD-012441
For a 75 Amp Slip Ring Assembly
Includes:
4 Brushes
4, Spring Fingers & Instructions
aka GR012441
[NSN 5977-01-317-4284]
[Amazon]
(2LBS) H 4" L 8" W 4" Box"
7 $531.05
GRD-012443 Gleason Brush Kit
Part GRD-012443
For a 200 Amp Slip Ring Assembly
Includes:
4 Brushes / 2 Brushes per Ring
Spring Fingers & Instructions
Enough brushes & spring fingers for a 2 conductor slip ring assembly
aka GR012443
Dated 4/17
Ships in 5 days OS
(2LBS) H 4" L 8" W 4" Box
- 0 $568.75
40 1
GRD-042733 Gleason SPANNER WRENCH KIT,UREEL,35-80 - 0 $87.30
GRD-042734 Gleason SPANNER WRENCH KIT,UREEL,100 - 0 $88.45
41 1
GRD-042735 N/A - 0 N/A N/A N/A
GRD-042736 Gleason RATCHET WRENCH KIT,UREEL,100 - 0 $448.00
Gleason "UE-18" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Click to visit our Amazon store

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Frequently Sold
Replacement Parts

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
PowerTrak Replacement Parts


Gleason
PowerTrak Replacement Parts


  • PowerTrak Replacement Parts
Reels Replacement Parts


Gleason
Reels Replacement Parts


  • Reels Replacement Parts
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information

This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
